6-6
©
200706
DAVIE XDc II
Direct Testing

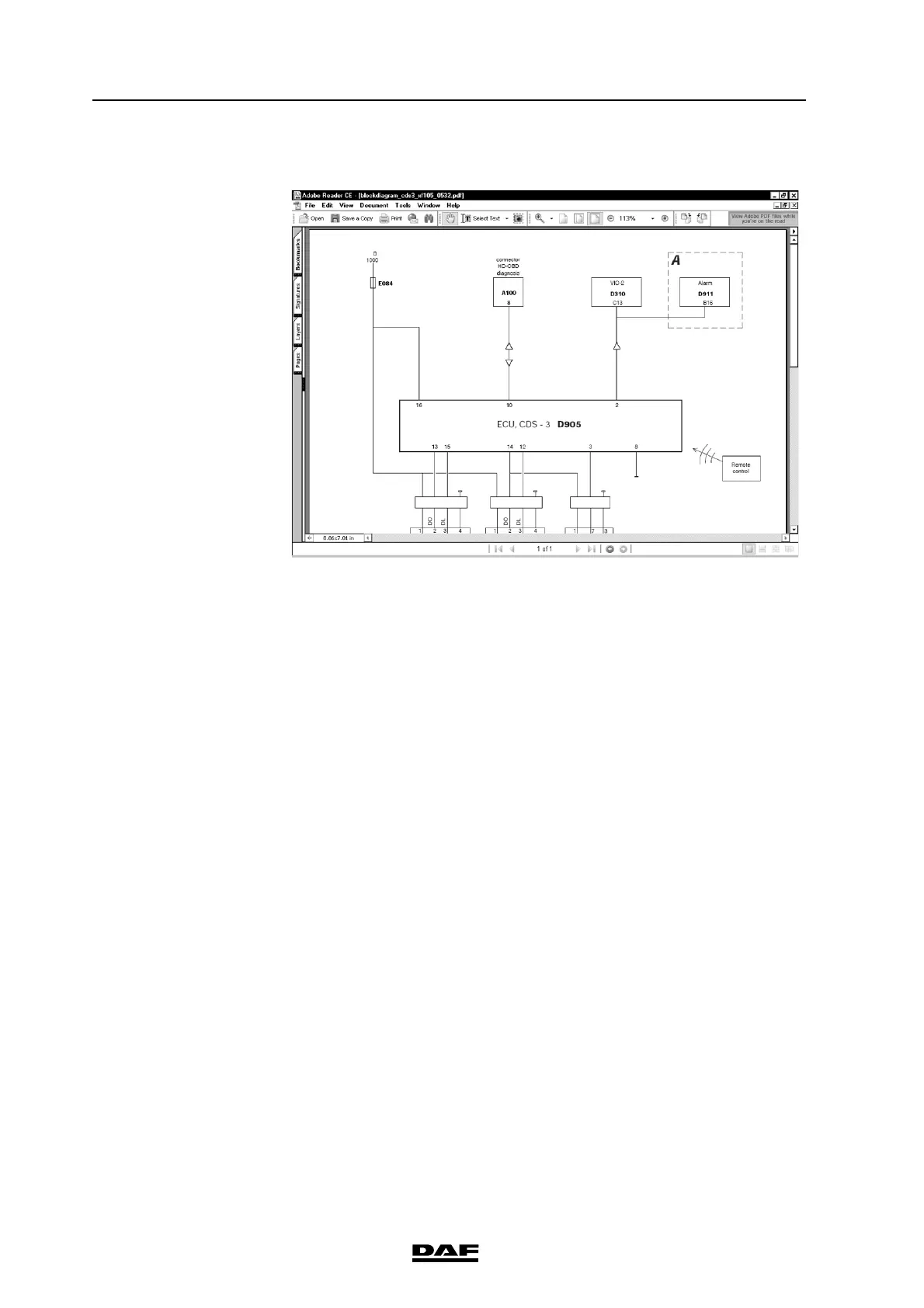

Figure 6-6 Example of a block diagram
6.4 Navigation bar
By pressing the "Navigation Bar" buttons, the user can quickly navigate to
various parts of the program. The buttons "Go To" and "Help" contain Windows
type "pull up" menus which are screen sensitive and whose contents change
according to the screen currently being displayed.
The two "Arrow" buttons ("Back / <" and "Continue / >") allow the user to move
forwards and backwards between screens.
If the "Back / <" button is pressed to exit a test, the test remains as running.
To Next Page
