Guided Diagnosis
DAVIE XDc II
7.6 Guided entry with a Symptom
This "Symptom Based" method uses the selected symptom to determine which
elements (components) are suspected to be defective.

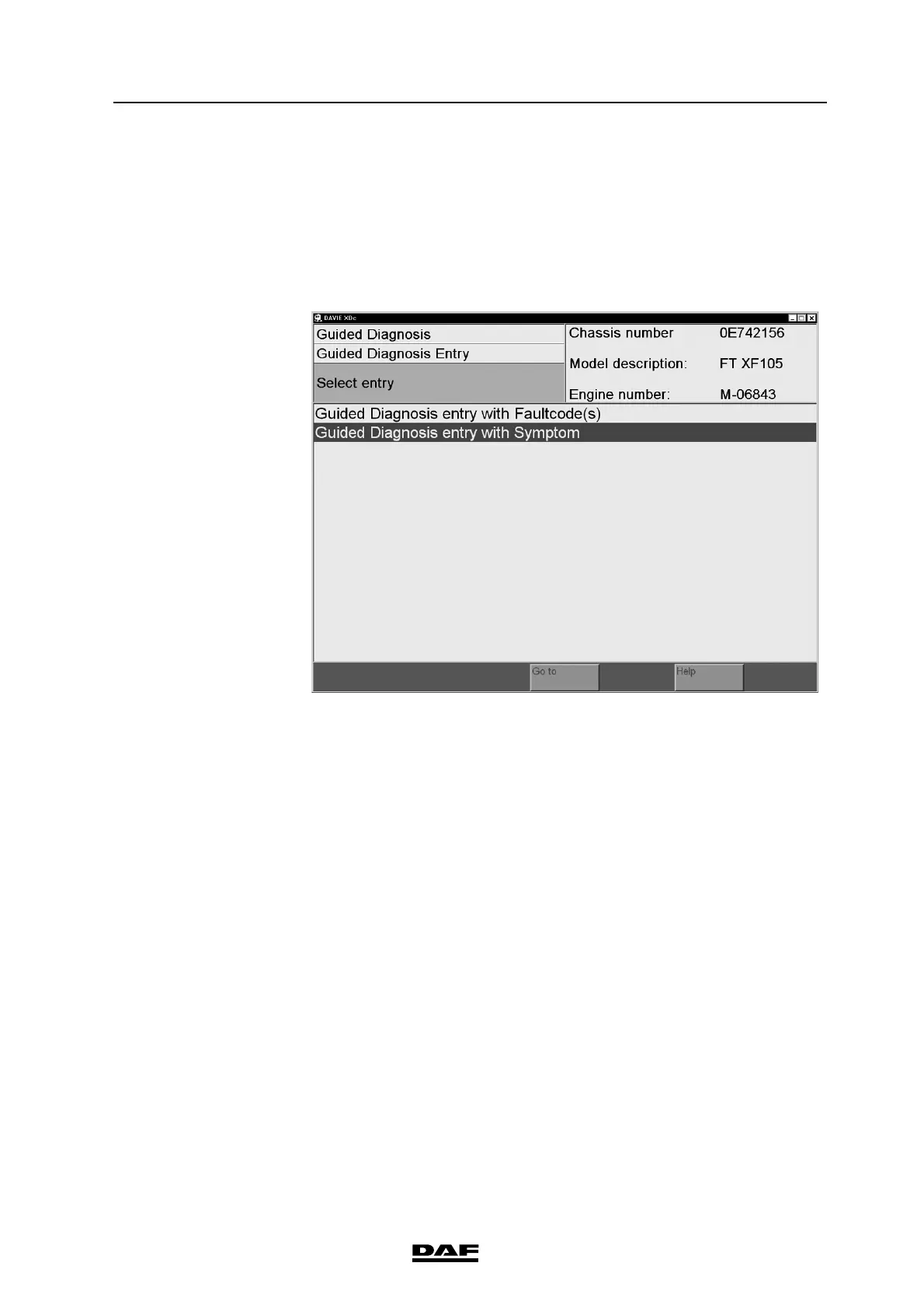

Figure 7-4 Symptom selection based on repair group or observation
When "Symptom Based" the first option is chosen, a list of "Vehicle function
based symptom" tree is displayed.
• Driveline: Generate / transmit / convert driving and braking power to
achieve desired velocity
• Chassis: Carrying and handling the load / directing the vehicle / exterior
lighting / body building
• Cabin: Driver working & living environment
• General: Fuses and communication
To Next Page
