Direct Testing
DAVIE XDc II
6.5.4 Documents
During testing, various documents can be displayed, such as drawings for
connectors, wiring diagrams or even instruction sheets. These documents are
"linked" to the system at relevant points during testing. For example, if a test is
being performed on a connector, a schematic of this connector, showing the
various pin connections, could be viewed.
The documents can be displayed via the "Go to" button when the system is
selected and by the buttons on the right side of the screen when available.

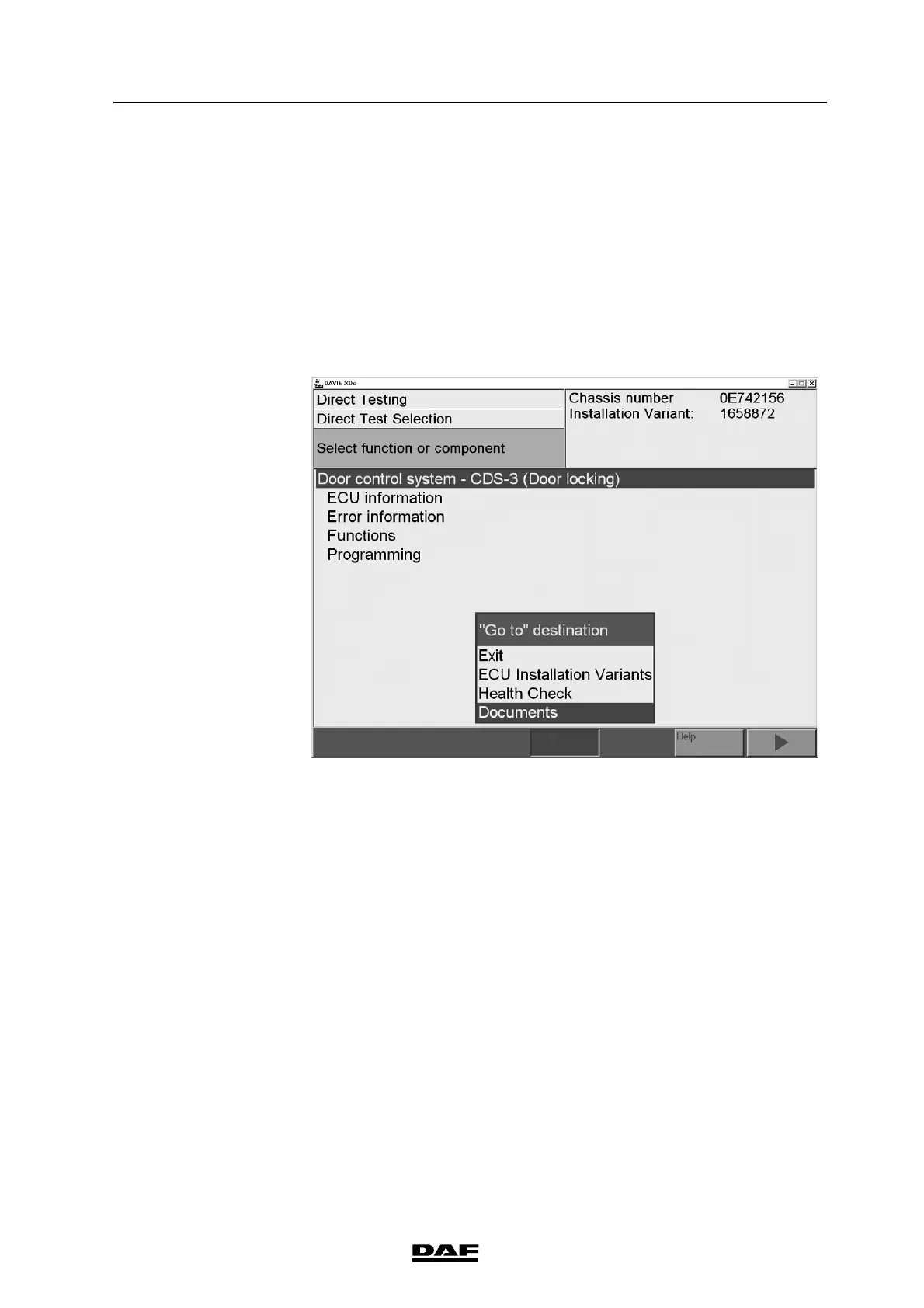

Figure 6-10 Open Documents
