Dahua DH-XVR1B08 User Manual

Local Configurations 88
Parameter
Description
port and HDMI port is 1280×720.
Some of the resolution options might not be supported on the
HDMI port.
The main menu does not display on the extra screen.
If you do not enable the extra screen function, both the VGA port and HDMI port display
the same image.
Table 5-16
5.2.6.2 Configuring Viewing Layout
You can configure the view layout in the live view screen.
Select Main Menu > DISPLAY > VIEW. Step 1

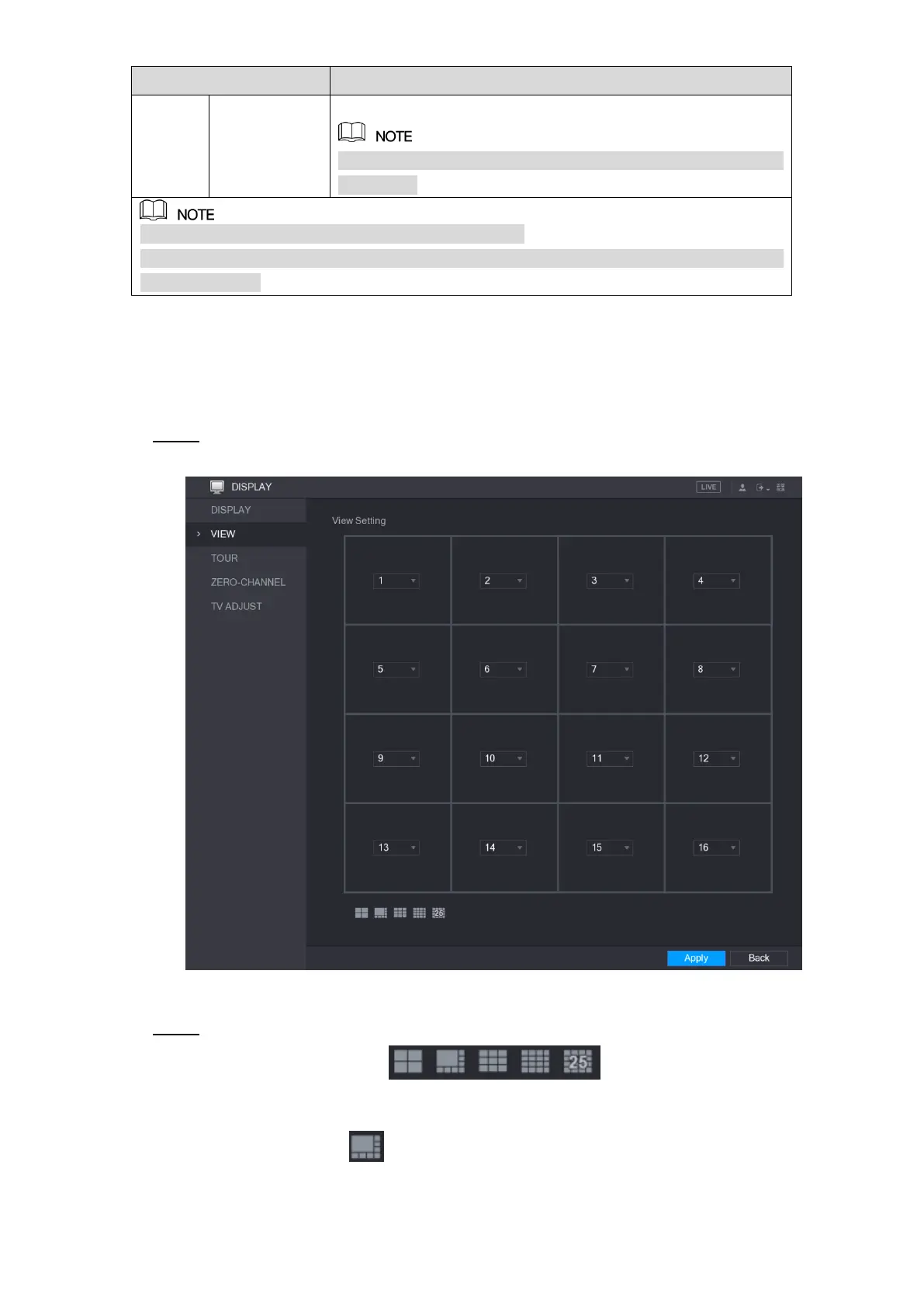

The View Setting interface is displayed. See Figure 5-45.
Figure 5-45
Configure the view layout by clicking the layout buttons on the bottom. See Figure 5-46. Step 2
Figure 5-46
For example, click and select 9-16, the view layout changes immediately, see
Figure 5-47.

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
