Dahua DH-XVR1B08 User Manual

Local Configurations 179
Select Main Menu > SMART DETECTION > SMART SEARCH > SMD. Step 1

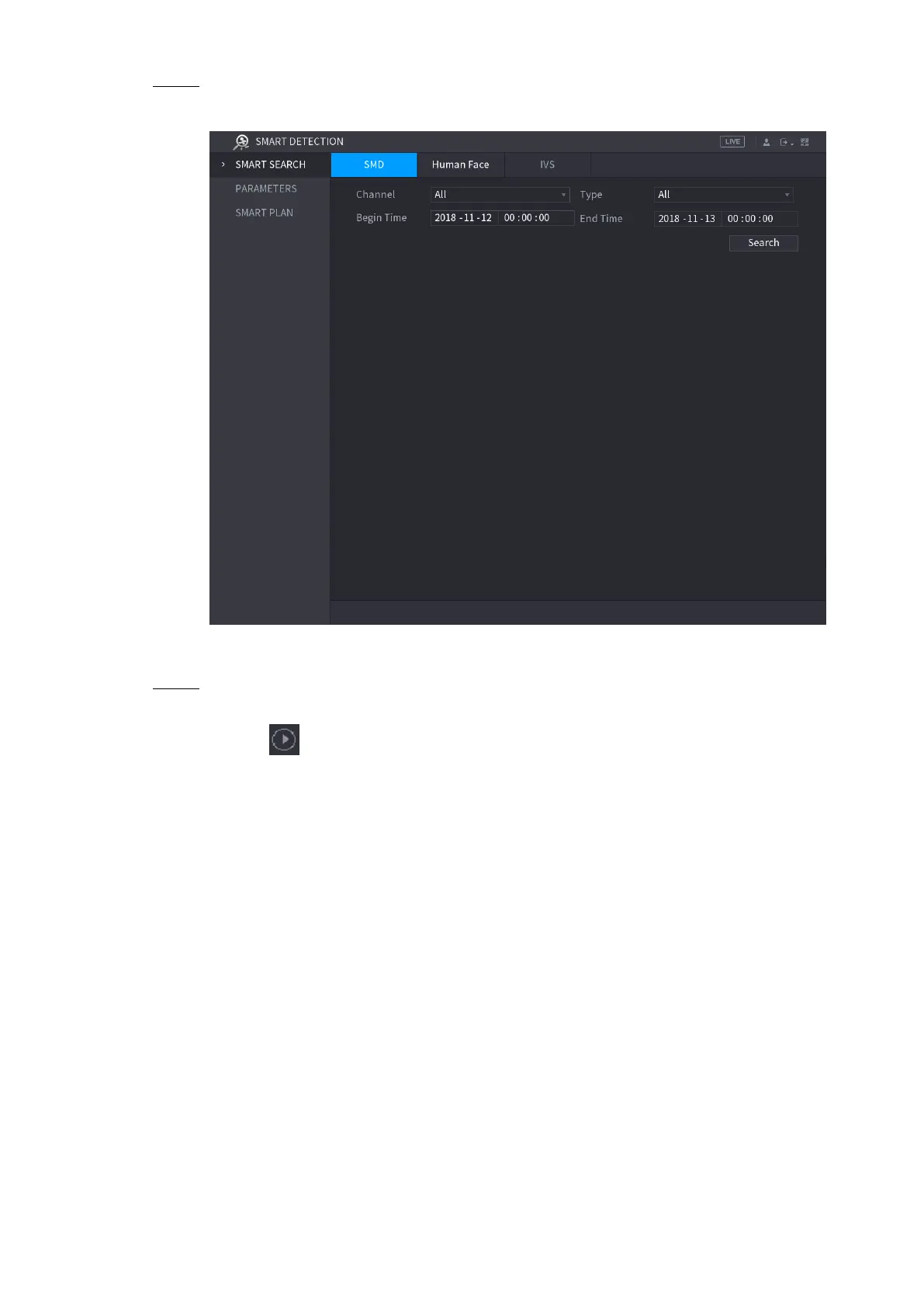

The SMD interface is displayed. See Figure 5-141.
Figure 5-141
Select channel, type, begin time and end time, and then click Search. Step 2
The search result is displayed. See Figure 5-142.
 Click to play back the video.
 Tick the check box before the video, and then click Export to export the video to
external USB.

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
