Dahua DH-XVR1B08 User Manual

Local Configurations 259

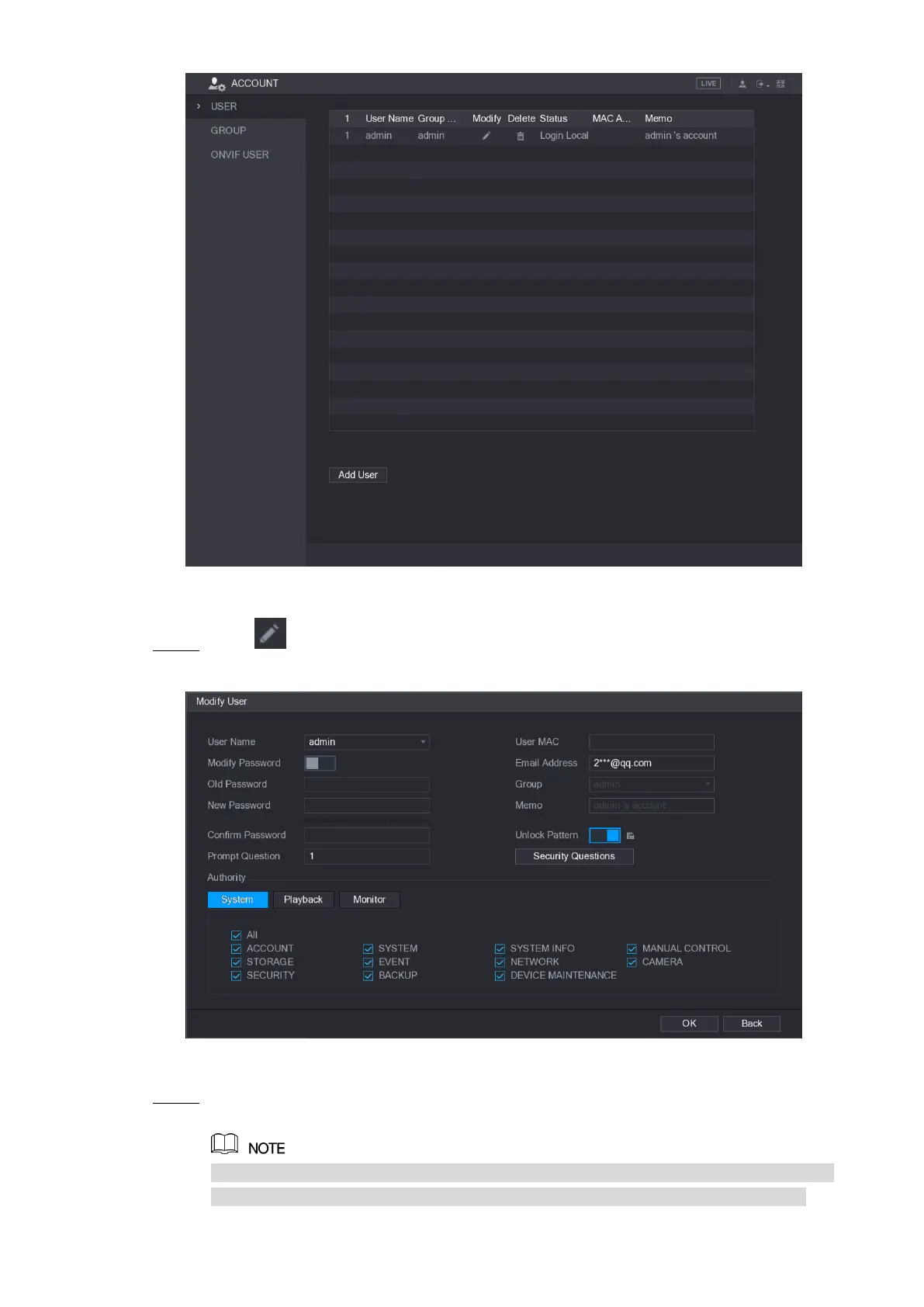

Figure 5-222
Click for the user account that you want to modify. Step 2
The Modify User interface is displayed. See Figure 5-223.
Figure 5-223
Change the settings for password, user name, user group, user MAC, memo, period, Step 3
and authority.
The new password can be set from 8 digits through 32 digits and contains at least two
types from number, letter and special characters (excluding"'", """, ";", ":" and "&").

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
