Dahua DH-XVR1B08 User Manual

Local Configurations 264

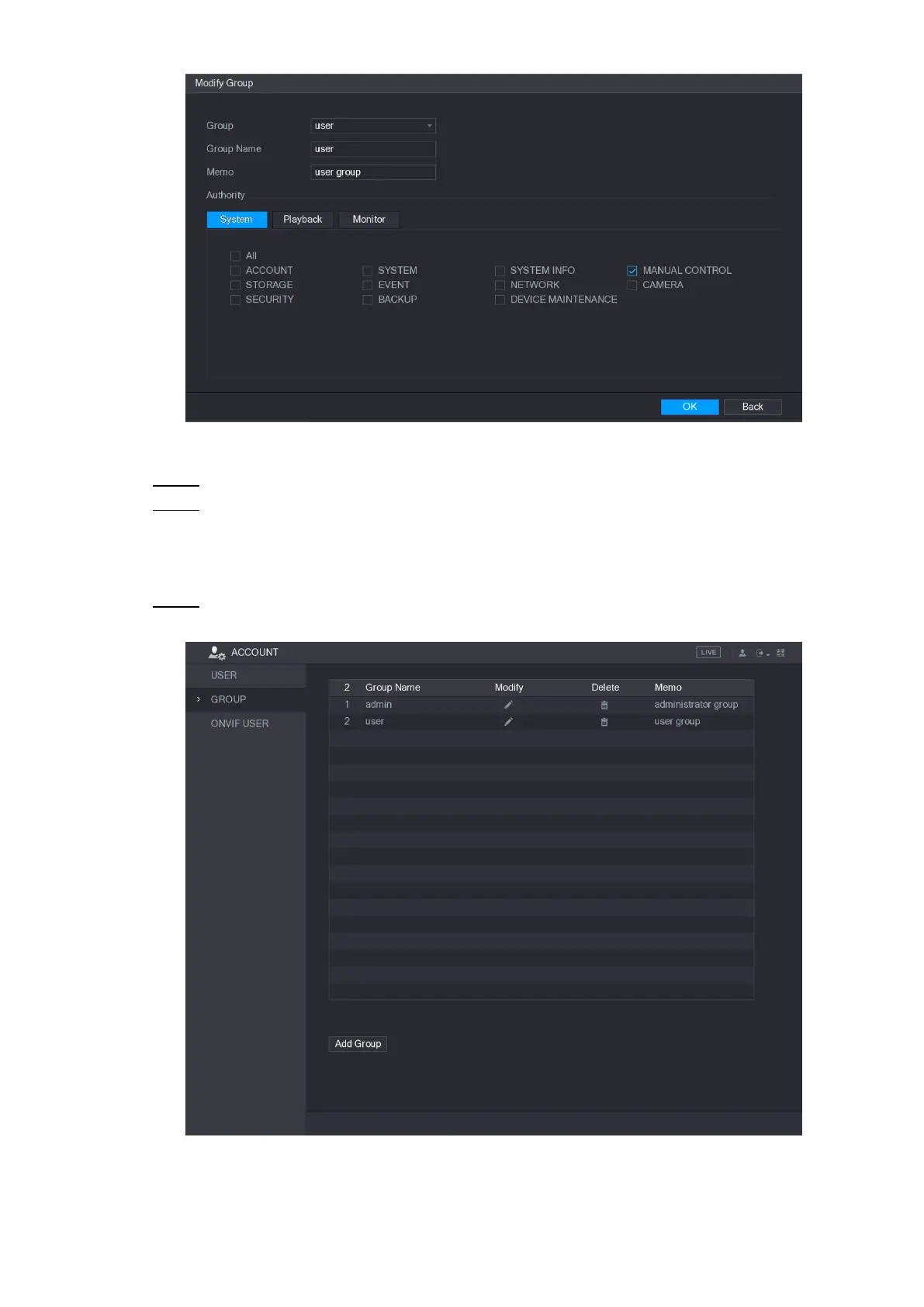

Figure 5-229
Change the settings for group name, memo, and authority. Step 4
Click OK to complete the settings. Step 5
5.16.2.3 Deleting a Group
Select Main Menu > ACCOUNT > GROUP. Step 1
The GROUP interface is displayed. See Figure 5-230.
Figure 5-230

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
