Local Configurations 280

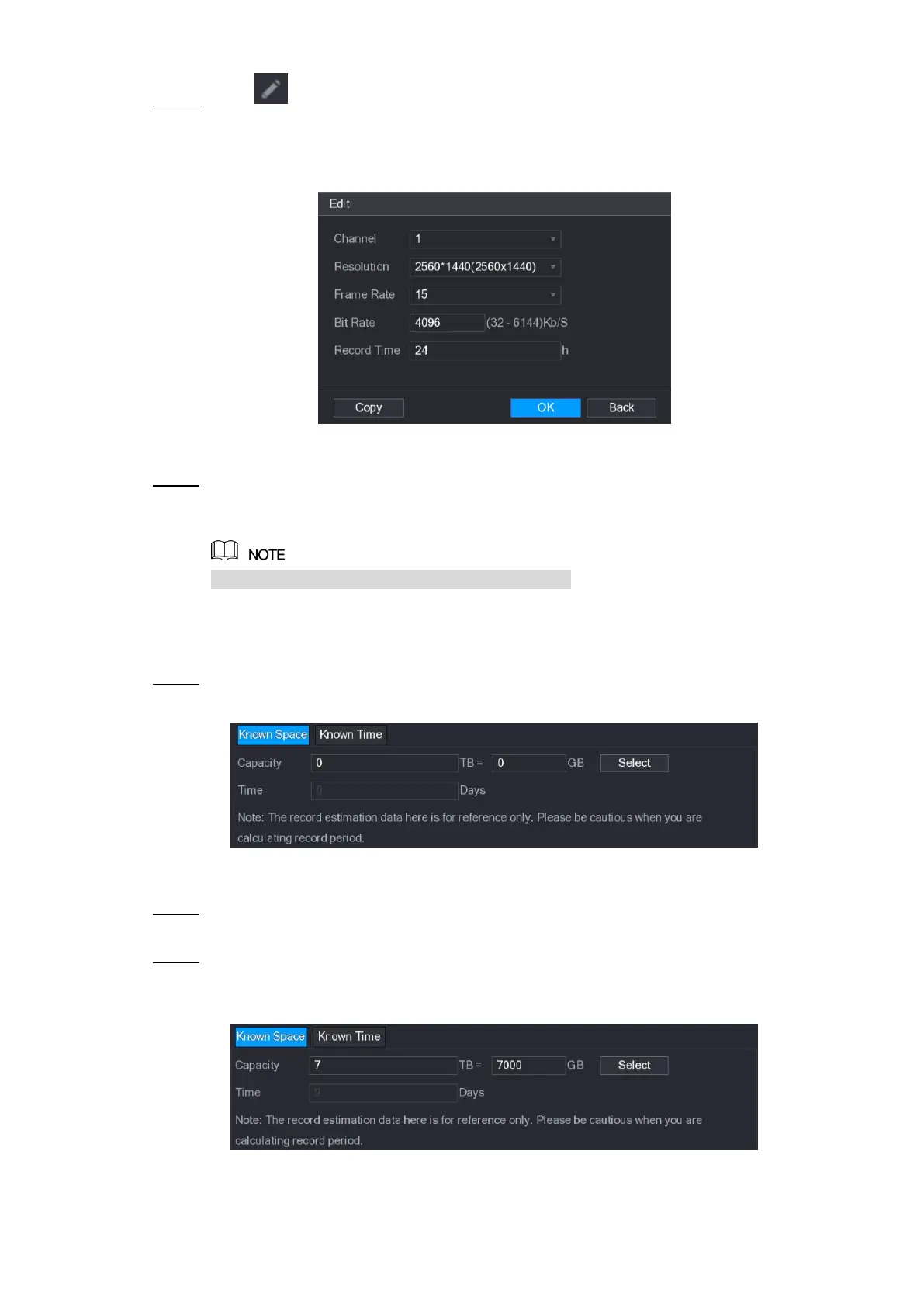

Click . Step 2
The Edit dialog box is displayed. See Figure 5-251.
You can configure the resolution, frame rate, bit rate and record time for the selected
channel.
Figure 5-251
Click OK to save the settings. Step 3
Then the system will calculate the time period that can be used for storage according to
the channels settings and HDD capacity.
Click Copy to copy the settings to other channels.
Calculating Recording Time
On the REC ESTIMATE interface, click the Known Space tab. Step 1
The Known Space interface is displayed. See Figure 5-252.
Figure 5-252
Click Select. Step 2
The Select HDD(s) interface is displayed.
Select the check box of the HDD that you want to calculate. Step 3
In the Known Space tab, in the Time box, the recording time is displayed. See Figure
5-253.
Figure 5-253

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
