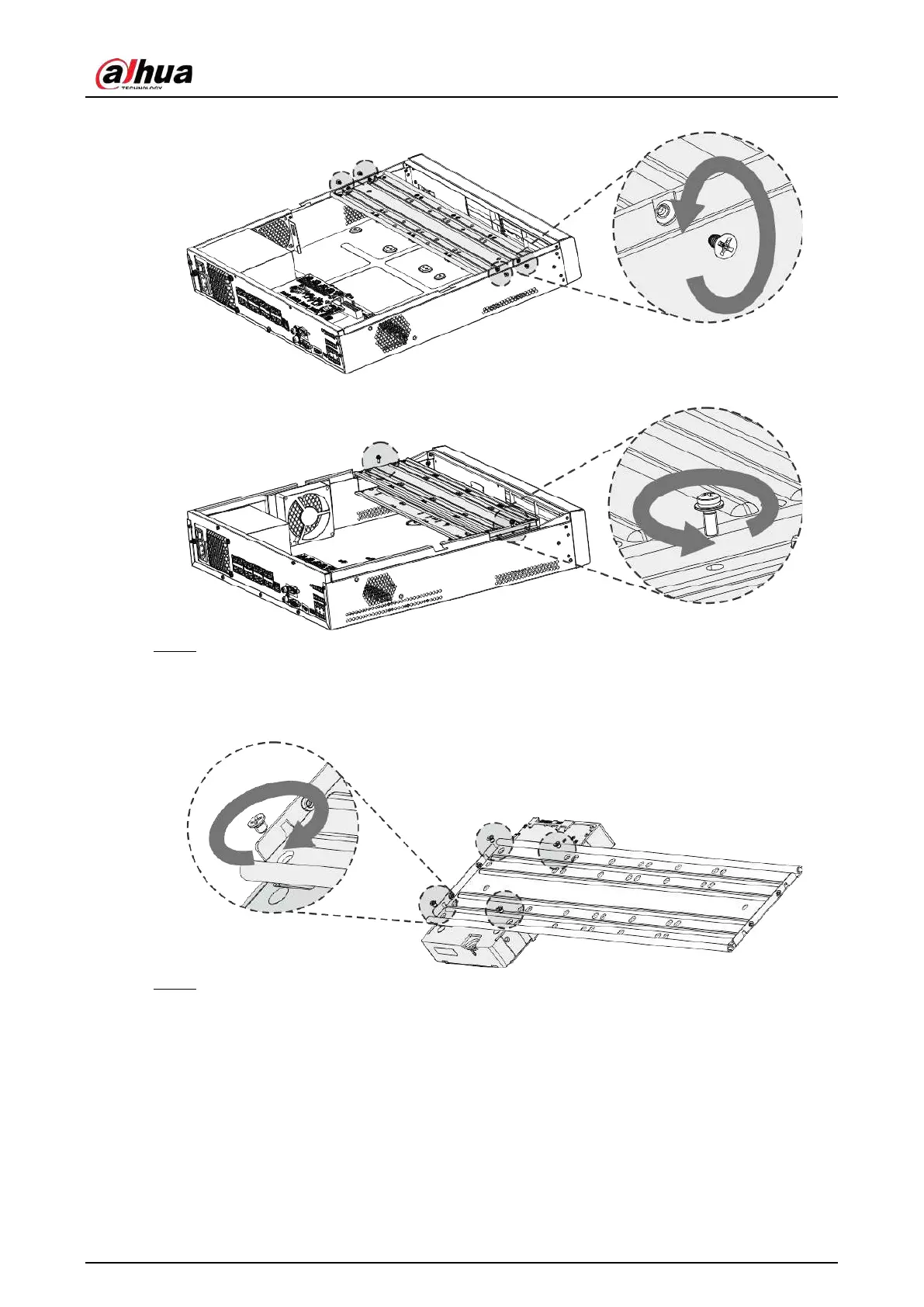

Figure 3-20 Remove screws (1.5U)

Figure 3-21 Remove screws (2U)

Step 4 Match the four screw holes on the HDD with the four holes on the bracket and then fasten

the screws.

The HDD is fixed to the bracket.

Figure 3-22 Fasten screws

Step 5 see Step 4 to install other HDDs.
