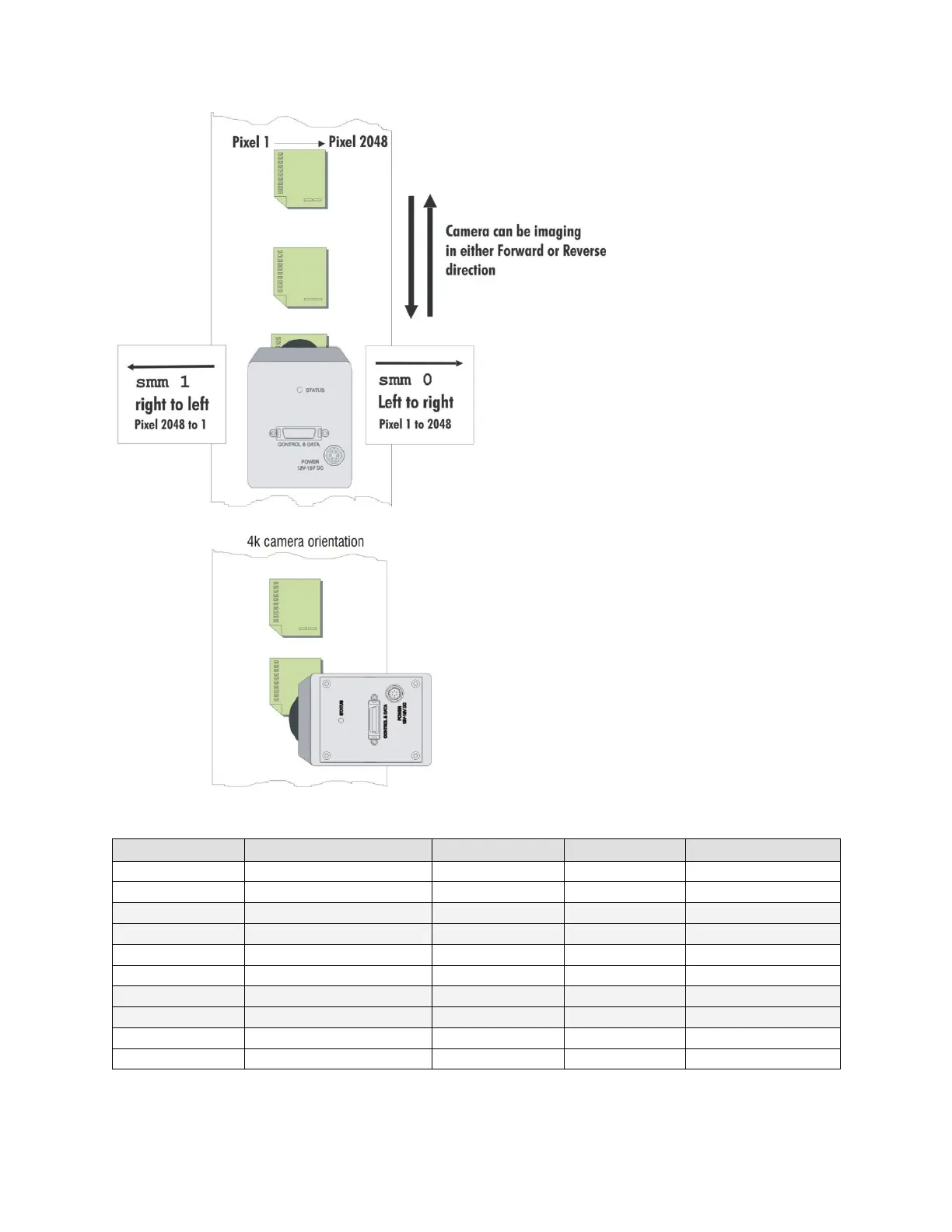

Table 12: Forward or Reverse Pixel Readout
Camera model
Readout direction
Command
Tap 1
Tap 2
S3-14-01k40
Left to Right
smm 0
1-1024
n/ a
Right to Left
smm 1
1024-1
n/ a
S3-24-01K40
Left to Right
smm 0
1-512
513-1024
Right to Left
smm 1
1024-513
512-1
S3-14-02K40
Left to Right
smm 0
1-2048
n/ a
Right to Left
smm 1
2048-1
n/ a
S3-24-02K40
Left to Right
smm 0
1-1024
1025-2048
Right to Left
smm 1
2048-1025
1024-1
S3-24-04K40
Left to Right
smm 0
1-2048
2049-4096
Right to Left
smm 1
4096-2049
2048-1
