Sensor Shift Direction
When in high sensitivity mode, you can select either forward or reverse CCD shift direction. This
accomm od ates object d irection change on a w eb and allow s you to mount the cam era ―up sid e d own‖.

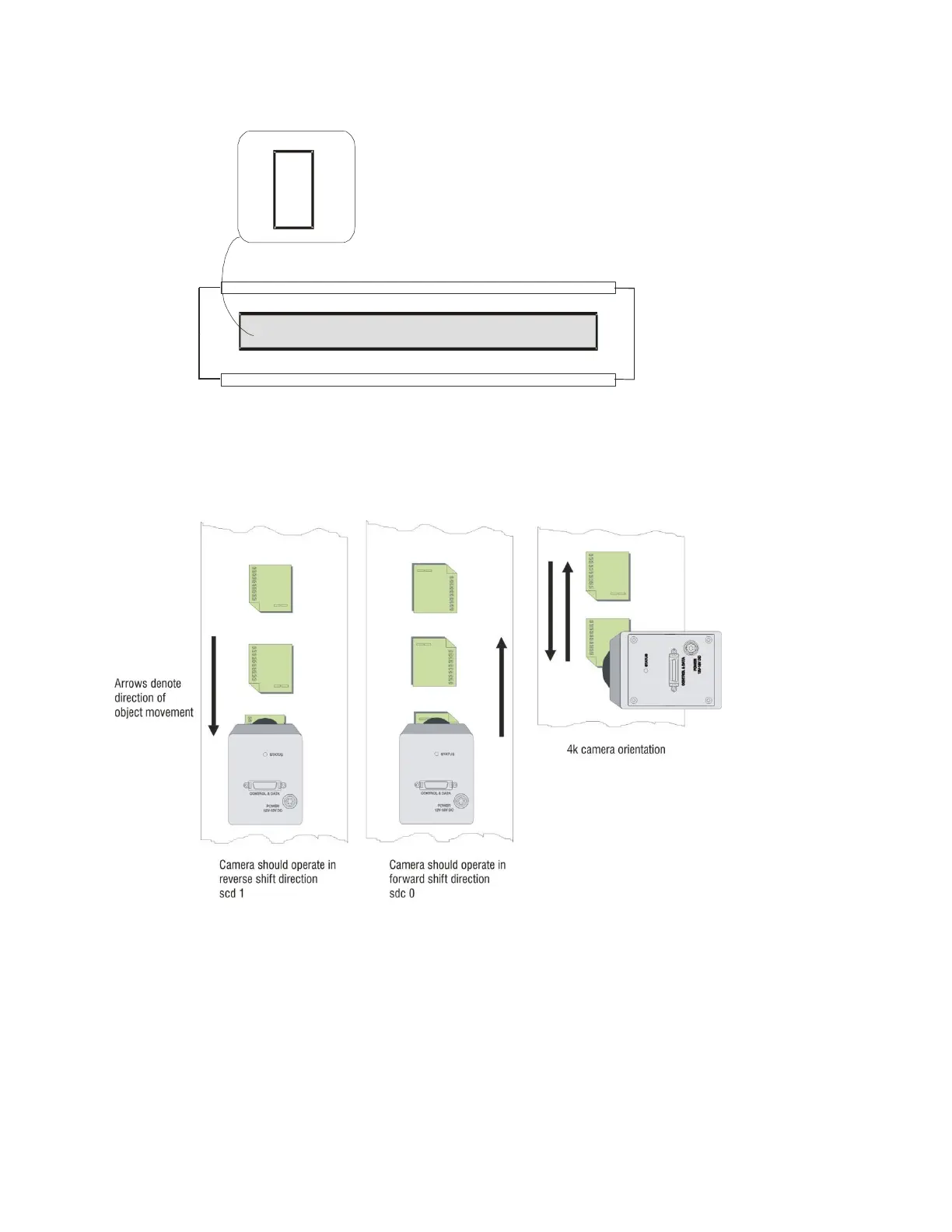

Figure 21: Object Movement and Camera Direction Example using an Inverting Lens
Note: You can control the CCD shift direction through the serial interface. Use the software command scd
to determine whether the direction control is set via software control or via the Camera Link control
signal on CC3.
CCD Readout Shift Register
CCD Readout Shift Register
Sensor 1 and 2 (28µm x 14µm OR 20µm x 10µm)
14/10µm
Pixel Detail
28/20µm
