Spyder3 S3-14 and S3-24 Monochrome Camera User's Manual 41
Teledyne DALSA 03-032-20117-01

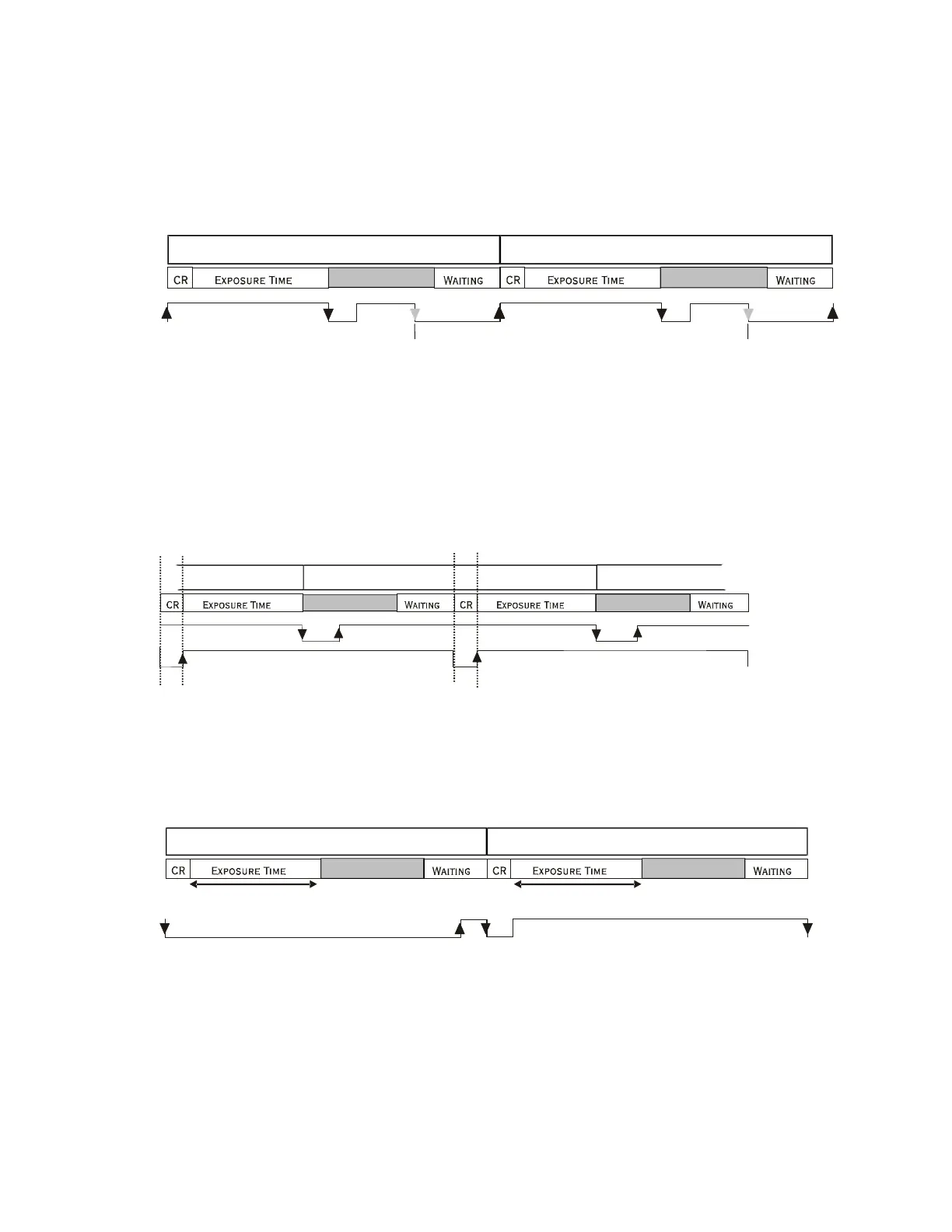

Mode 4: Smart EXSYNC, External Line Rate and Exposure Time
In this mode, EXSYNC sets both the line period and the exposure time. The rising edge of EXSYNC marks
the beginning of the exposure and the falling edge initiates readout.
Example 3: Trigger Period is Repetitive and Greater than Read Out Time.
Mode 5: External Line Rate (EXSYNC) and External Pixel Reset
(PRIN)
In this mode, the falling edge of EXSYNC sets the line period and the rising edge of PRIN sets the start of
exposure time.
Figure 22: EXSYNC controls Line Period and PRIN controls Exposure Time
Mode 6: External Line Rate and Internally Programmable
Exposure Time
Figure 23: EXSYNC controls Line Period with Internally controlled Exposure Time
Readout
EXSYNC
Line Period
CR=Charge Reset
Readout
Line Period
Programmable Period
Using Command
set
Programmable Period
Using command
set
Readout
EXSYNC
Line Period
cr=Charge Reset
Readout
PRIN
Line Period
Line Period
Readout
EXSYNC
EXSYNC Falling
Edge ignored
during readout
Line Period
CR=Charge Reset
Readout
Line Period
EXSYNC Falling
Edge ignored
during readout
