42 Spyder3 S3-14 and S3-24 Monochrome Camera User's Manual
03-032-20117-01 Teledyne DALSA
Mode 7: Internally Programmable Line Rate, Maximum Exposure
Time
In this mode, the line rate is set internally with a maximum exposure time.

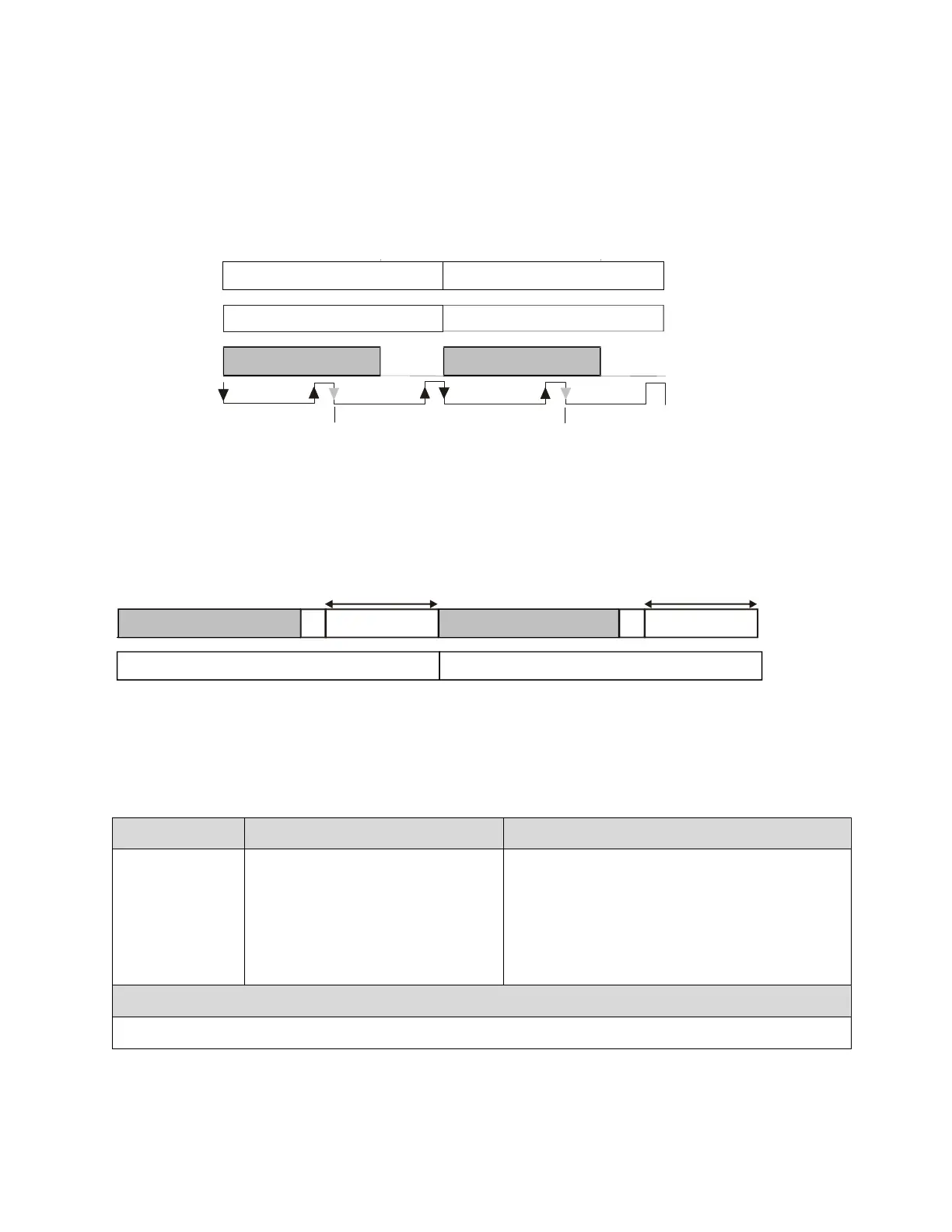

Figure 24: Mode 7 Camera Timing
Mode 8: Maximum Line Rate, Programmable Exposure Time
In this mode, the exposure time is set internally with a maximum line rate.
Figure 25: Mode 8 Timing
Setting the Line Rate
Sets the camera’s line rate in Hz. Camera mu st be operating in either exposure mode 2 or 7.
Camera Link Command
Parameter
Description
Notes
ssf f
Desired line rate in Hz. Allowable
values are:
1k 1 tap: 300-36000 Hz
1k 2 tap: 300-68000 Hz
2k 1 tap: 300-18500 Hz
2k 2 tap: 300-36000 Hz
4k 2 tap: 300-18500 Hz
 To read the current line frequency, use the
command gcp or get ssf.
 If you enter an invalid line rate frequency, an
error message is returned.
Example
ssf 10000
Programmable Period
Frame Period
Readout
CR
Exposure Time
CR=Charge Reset
Frame Period
Programmable Period
CR Exposure Time
Readout
Exposure Time
Readout
Internal Sync
set
with Command
ssf
Line Period
Exposure Time
Readout
Line Period
EXSYNC Falling
Edge ignored
during readout
EXSYNC Falling
Edge ignored
during readout
