Diagnostics

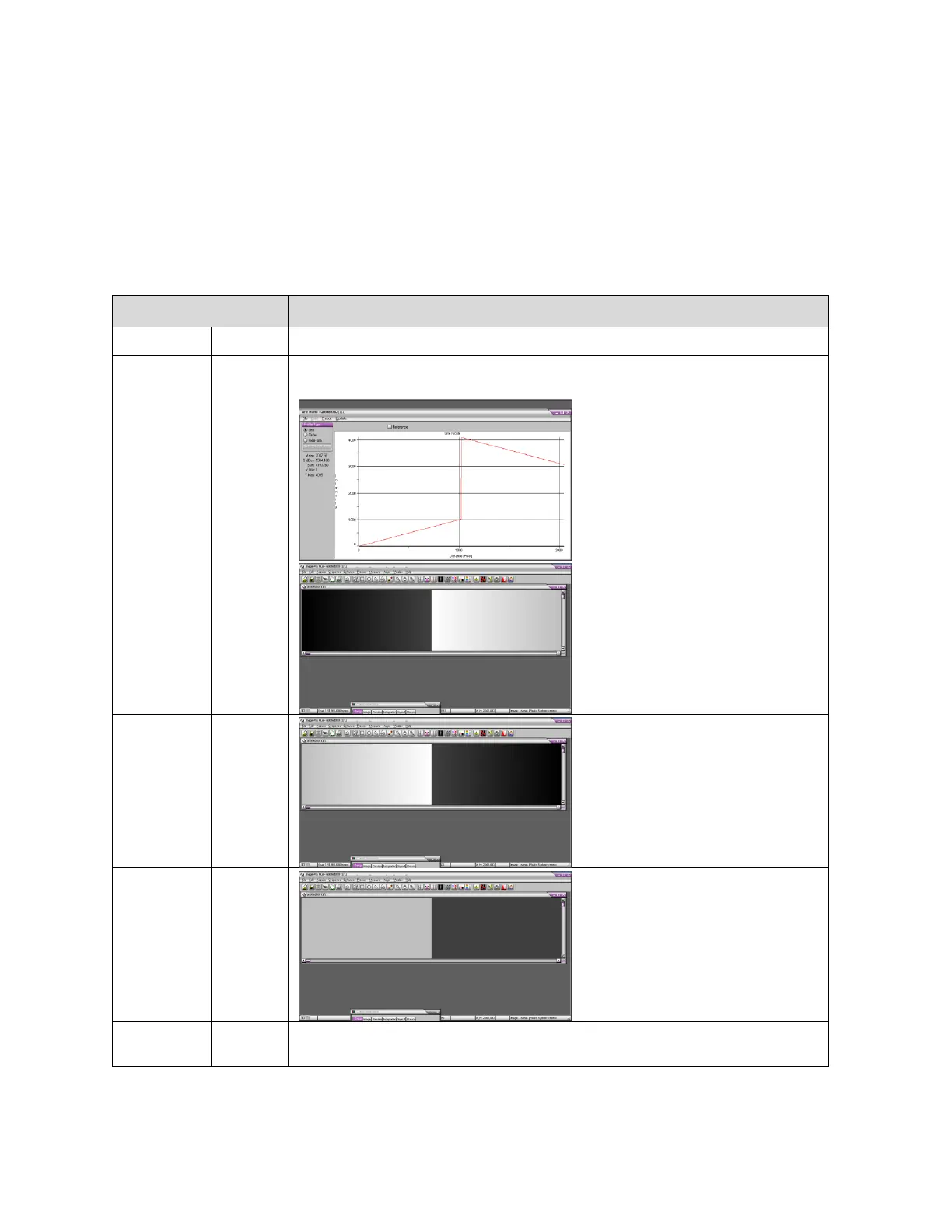

Generating a Test Pattern
Use the svm command to generate a test pattern to aid in system debugging. The test patterns are useful
for verifying camera timing and connections. The following tables show each available test pattern.
Camera Link Command
Parameter
Description
svm
0
Video.
svm
smm
1
0
12 bit test pattern.
2 tap model:
svm
smm
1
1
svm
smm
2
1
svm
smm
2
0
8 bit test pattern
2 tap model:
