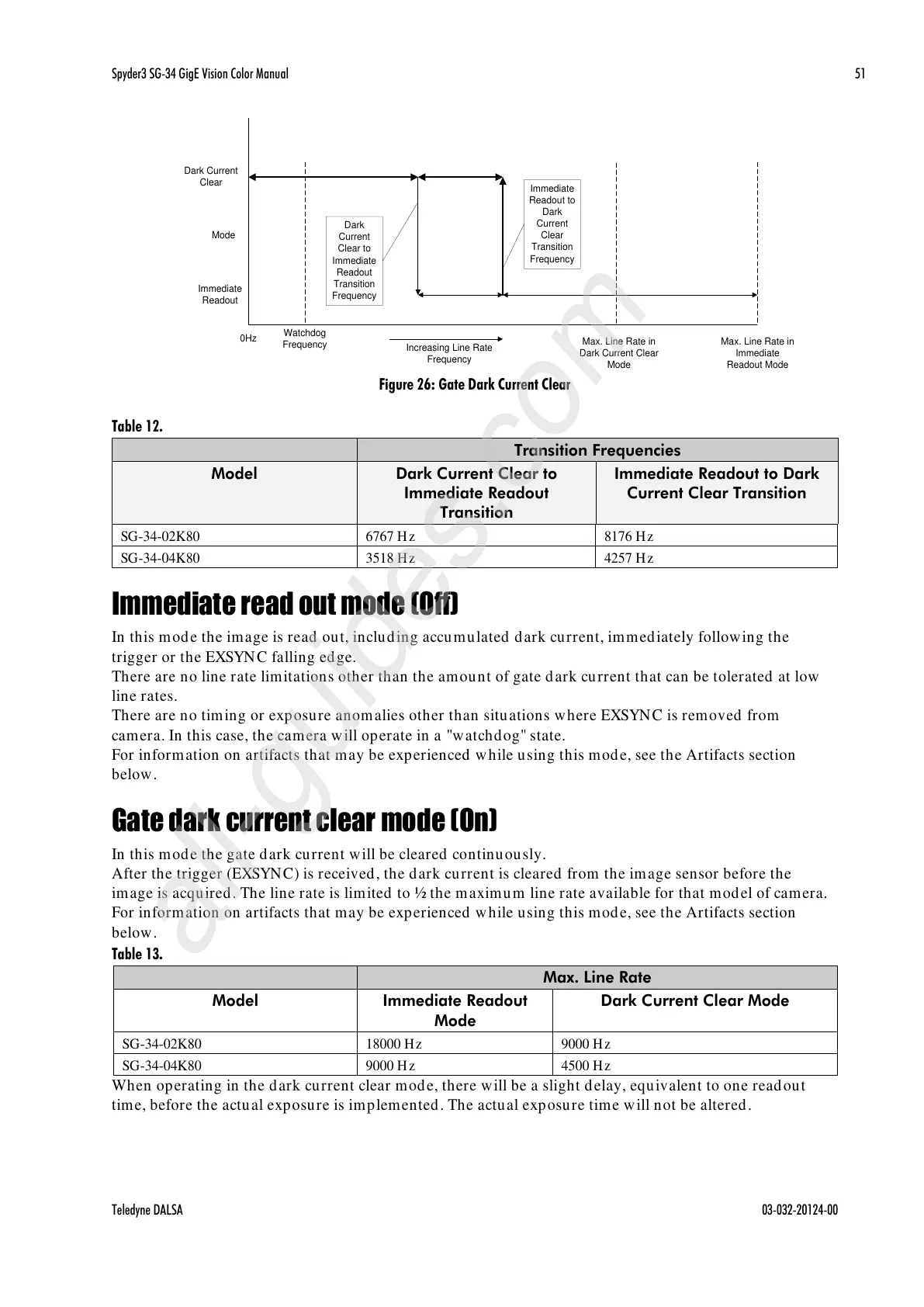

Immediate read out mode (Off)
In this mode the image is read out, including accumulated dark current, immediately following the
trigger or the EXSYNC falling edge.
There are no line rate limitations other than the amount of gate dark current that can be tolerated at low
line rates.
There are no timing or exposure anomalies other than situations where EXSYNC is removed from
camera. In this case, the camera will operate in a "watchdog" state.
For information on artifacts that may be experienced while using this mode, see the Artifacts section
below.
Gate dark current clear mode (On)
In this mode the gate dark current will be cleared continuously.
After the trigger (EXSYNC) is received, the dark current is cleared from the image sensor before the
image is acquired. The line rate is limited to ½ the maximum line rate available for that model of camera.
For information on artifacts that may be experienced while using this mode, see the Artifacts section
below.
Table 13.
When operating in the dark current clear mode, there will be a slight delay, equivalent to one readout
time, before the actual exposure is implemented. The actual exposure time will not be altered.
