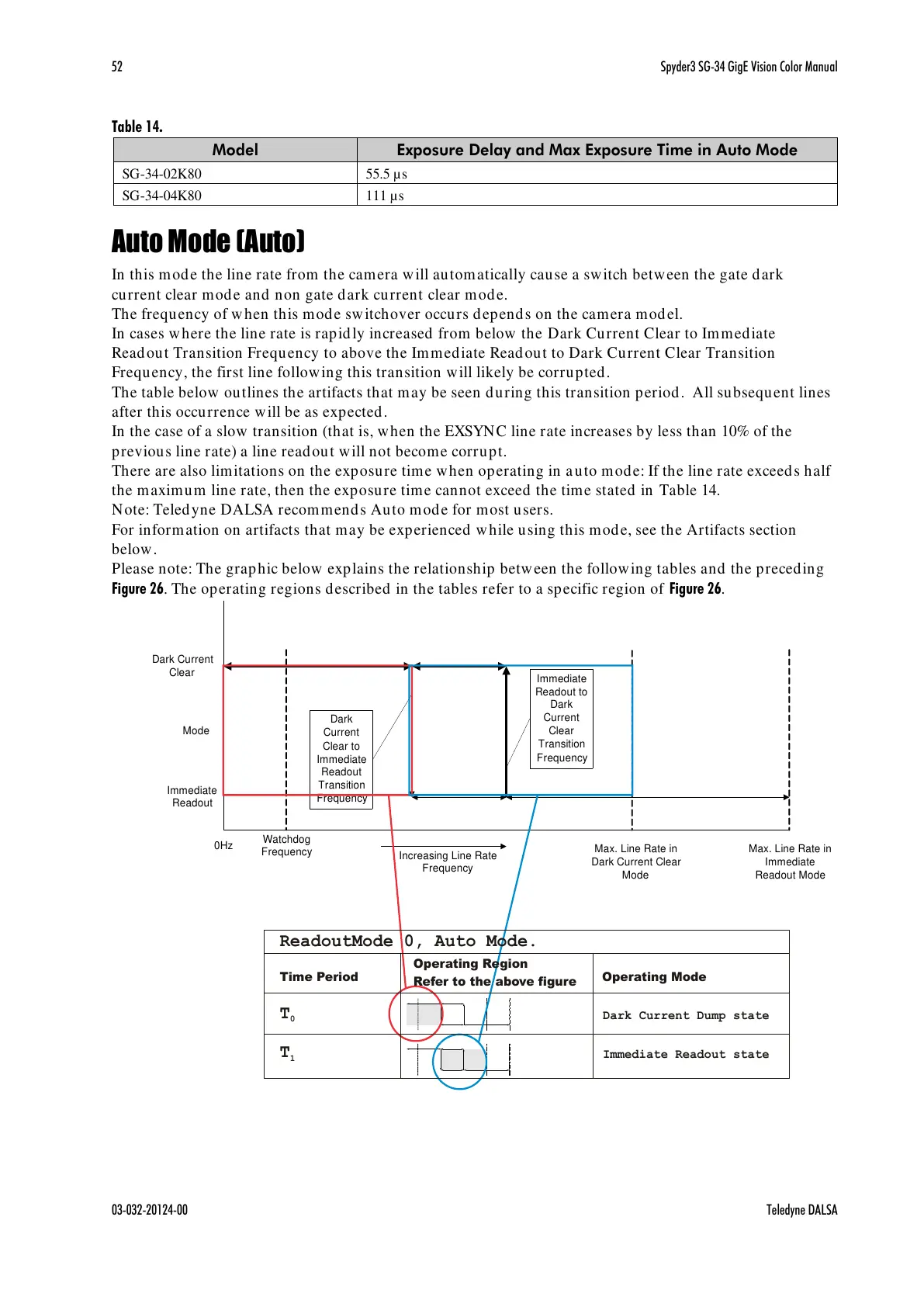

52 Spyder3 SG-34 GigE Vision Color Manual
03-032-20124-00 Teledyne DALSA
Table 14.
Model
Exposure Delay and Max Exposure Time in Auto Mode
SG-34-02K80
55.5 µs
SG-34-04K80
111 µs
Auto Mode (Auto)
In this mode the line rate from the camera will automatically cause a switch between the gate dark
current clear mode and non gate dark current clear mode.
The frequency of when this mode switchover occurs depends on the camera model.
In cases where the line rate is rapidly increased from below the Dark Current Clear to Immediate
Readout Transition Frequency to above the Immediate Readout to Dark Current Clear Transition
Frequency, the first line following this transition will likely be corrupted.
The table below outlines the artifacts that may be seen during this transition period. All subsequent lines
after this occurrence will be as expected.
In the case of a slow transition (that is, when the EXSYNC line rate increases by less than 10% of the
previous line rate) a line readout will not become corrupt.
There are also limitations on the exposure time when operating in auto mode: If the line rate exceeds half
the maximum line rate, then the exposure time cannot exceed the time stated in Table 14.
Note: Teledyne DALSA recommends Auto mode for most users.
For information on artifacts that may be experienced while using this mode, see the Artifacts section
below.
Please note: The graphic below explains the relationship between the following tables and the preceding
Figure 26. The operating regions described in the tables refer to a specific region of Figure 26.
0Hz
Watchdog
Frequency
Max. Line Rate in
Immediate
Readout Mode
Increasing Line Rate
Frequency
Dark Current
Clear
Immediate
Readout
Dark
Current
Clear to
Immediate
Readout
Transition
Frequency
Immediate
Readout to
Dark
Current
Clear
Transition
Frequency
Max. Line Rate in
Dark Current Clear
Mode
Mode
ReadoutMode 0, Auto Mode.
Dark Current Dump state
Immediate Readout state
T
0
T
1
Time Period
Operating Region
Refer to the above figure
Operating Mode
