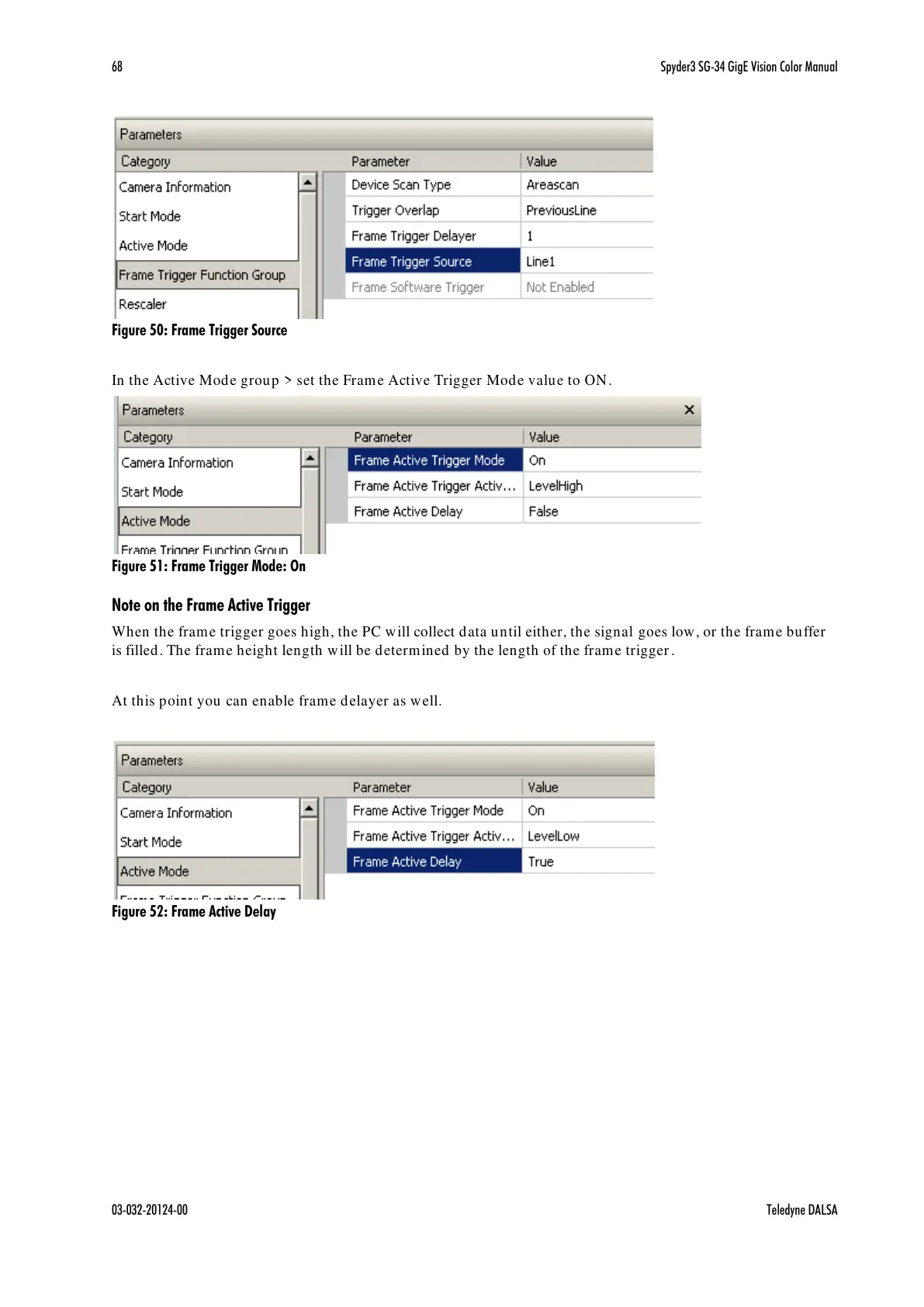

Figure 50: Frame Trigger Source
In the Active Mode group > set the Frame Active Trigger Mode value to ON.
Figure 51: Frame Trigger Mode: On
Note on the Frame Active Trigger
When the frame trigger goes high, the PC will collect data until either, the signal goes low, or the frame buffer
is filled. The frame height length will be determined by the length of the frame trigger.
At this point you can enable frame delayer as well.
Figure 52: Frame Active Delay
