20 • Installing X64 Xcelera-CL PX4 X64 Xcelera-CL PX4 User's Manual
Camera to Camera Link Connections

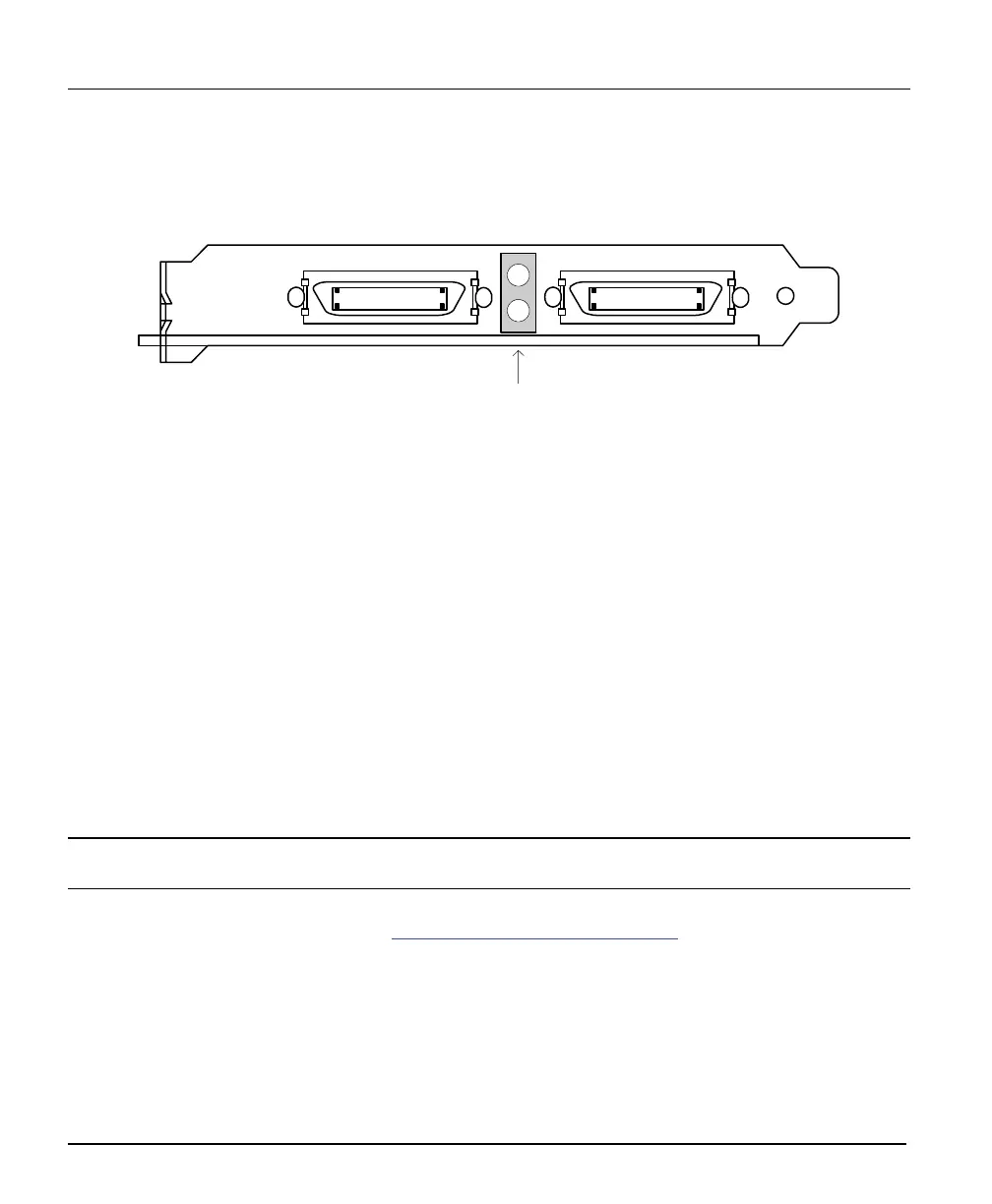

X64 Xcelera-CL PX4 End Bracket
Camera Link 1
3M MDR 26 pin female
connector
X64 Xcelera-CL PX4
Camera Link 2
3M MDR 26 pin female
connector
LEDs
1
14
13
26
1
14
13
26
1
2
The hardware installation process is completed with the connection of a supported camera to the X64
Xcelera-CL PX4 board using Camera Link cables (see “Camera Link Cables” on
page 101).
• The X64 Xcelera-CL PX4 Full board supports a camera with one or two Camera Link MDR-26
connectors (one Base or one Medium or one Full– see “Data Port Summary”
on page 100 for
information on Camera Link configurations).
• Connect the camera to Camera Link 1 with a Camera Link cable. When using a Medium camera,
connect the second camera cable to Camera Link 2.
• The X64 Xcelera-CL PX4 Dual board supports one or two cameras (one or two Base, or one
Medium – see “
Data Port Summary”
on page 100 for information on Camera Link
configurations).
• Connect camera 1 to the Camera Link 1 connector with a Camera Link cable. Connect camera 2
to the Camera Link 2. When using a Medium camera, connect the second camera cable to
Camera Link 2.
Refer to section "
Connector and Switch Specifications" on
page 83 for details on the Camera Link
connectors.
Note: If the camera is powered by the X64 Xcelera-CL PX4, refer to "External Signals Connector Bracket
Assembly" on page 94 for power connections.
Contact DALSA or browse our web site http://www.imaging.com/camsearch for the latest information on
X64 Xcelera-CL PX4 supported cameras.
