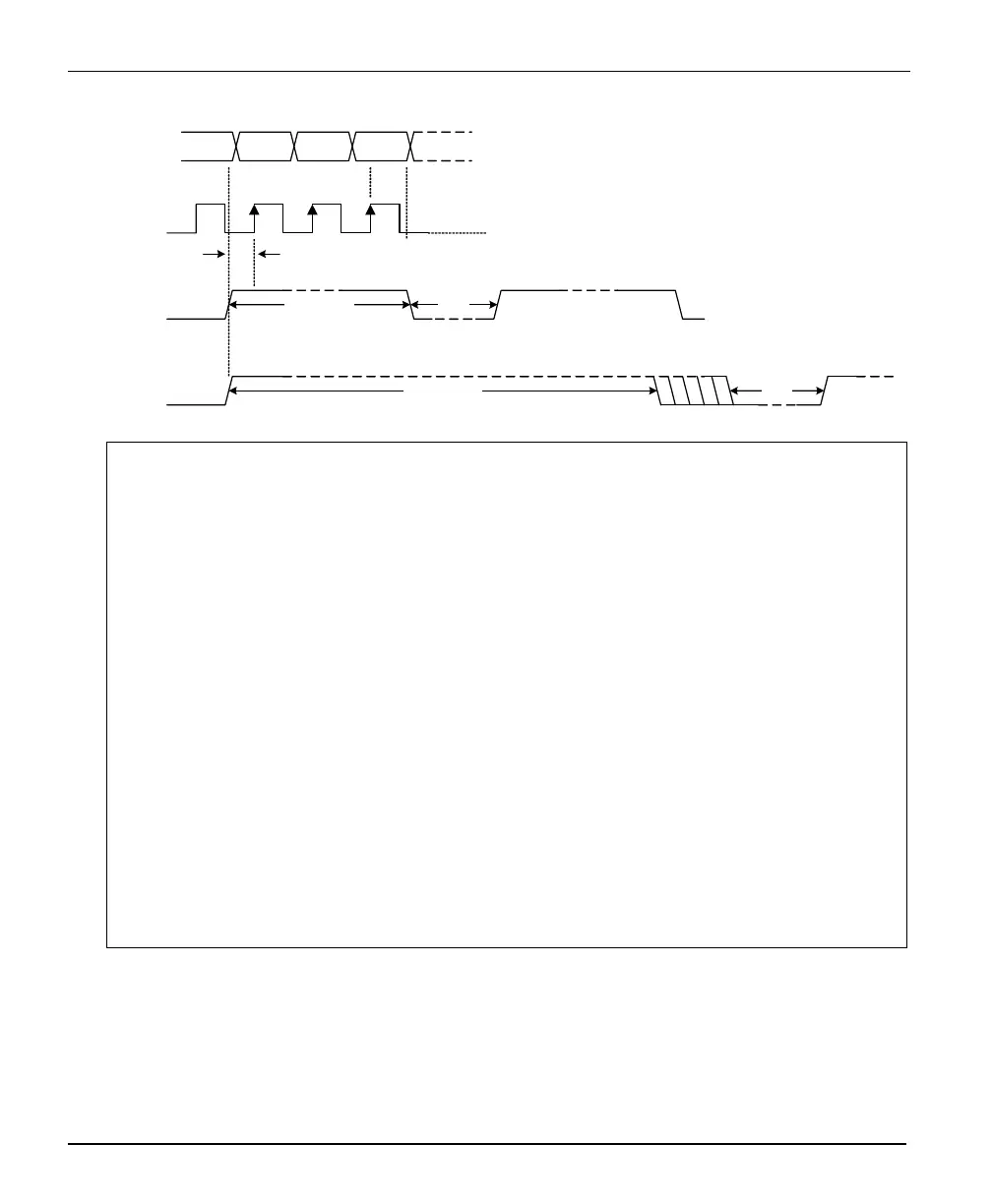

Acquisition Timing
PCLK
2
LVAL
3
FVAL
(Vsync)
Pixel Clock Range: 20 MHz up to 85 MHz
Min/Max
9
HB
5
Min/Max
4,9
VB
6
LVAL/FVAL setup time
1
: Minimum 15ns
DATA
first
7
last
8
(Hsync)

1
The setup times for LVAL and FVAL are the same. Both must be high and stable
b
efore the rising edge o
f
the Pixel Clock.

2
Pixel Clock must always be present.

3
LVAL must be active high to acquire camera data.

4
Minimum of 1.

5
HB - Horizontal Blanking:
Minimum: 4 clocks/cycle
Maximum: no limits

6
VB - Vertical Blanking:
Minimum: 1 line
Maximum: no limits

7
First Active Pixel (unless otherwise specified in the CCA file – "Horizontal Back invalid = x" where ‘x’
defines the number of pixels to be skipped).

8
Last Active Pixel – defined in the CCA file under "Horizontal active = y" – where ‘y’ is the total number
of active pixels per tap.

9
Maximum Valid Data:
 8-bits/pixel x 256K Pixels/line (LVAL)
 16-bits/pixel x 128K Pixels/line (LVAL)
 32-bits/pixel x 64K Pixels/line (LVAL)
 64-bits/pixel x 32K Pixels/line (LVAL)
 16,000,000 lines (FVAL)
