X64 Xcelera-CL PX4 User's Manual Technical Specifications • 97
External Signals Connector Bracket Assembly (Type 2)
The External Signals bracket (OR-X4CC-0TIO2) provides a simple way to bring out the signals from the
External Signals Connector J4 to a bracket mounted DB25. External cables designed for the DALSA
X64-CL iPro can be connected directly.
Install the bracket assembly into an adjacent PC expansion slot and connect the free cable end to the
board's J4 header. When connecting to J4, make sure that the cable pin 1 goes to J4 pin 1 (see the layout
drawing "
X64 Xcelera-CL PX4 B
oard Layout Drawing" on page 82).
Note: For additional independent I/O signals use the optional X-I/O module. See "Appendix: X-I/O
Module Option" on page 103.

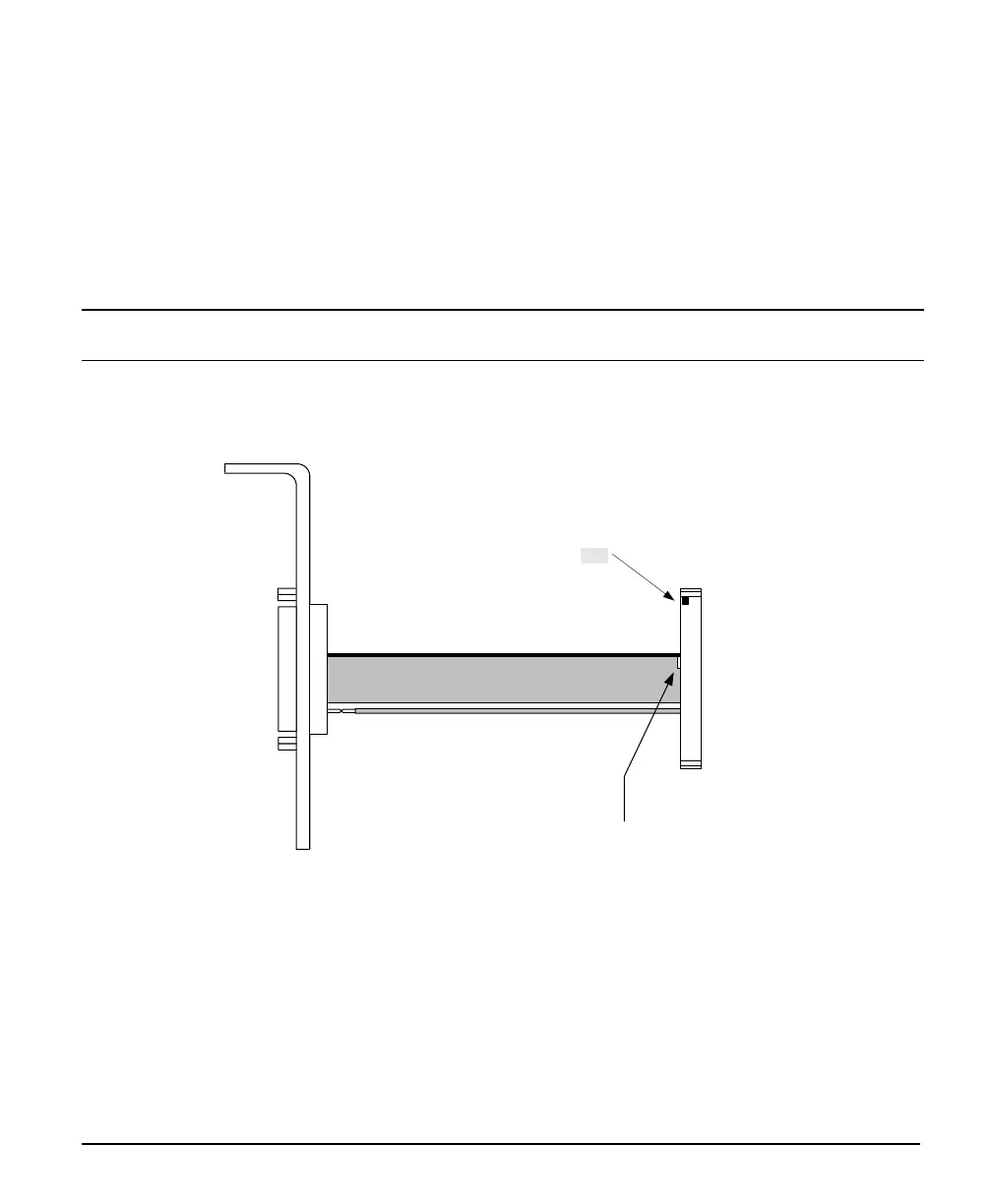

External Signals Connector Bracket Assembly (Type 2) Drawing
DB25 Female
mounted bracket
Header 40-Pin Female
Label: J4
Flat cable 12"
Pin 1
Connector is notched for
one way insertion
