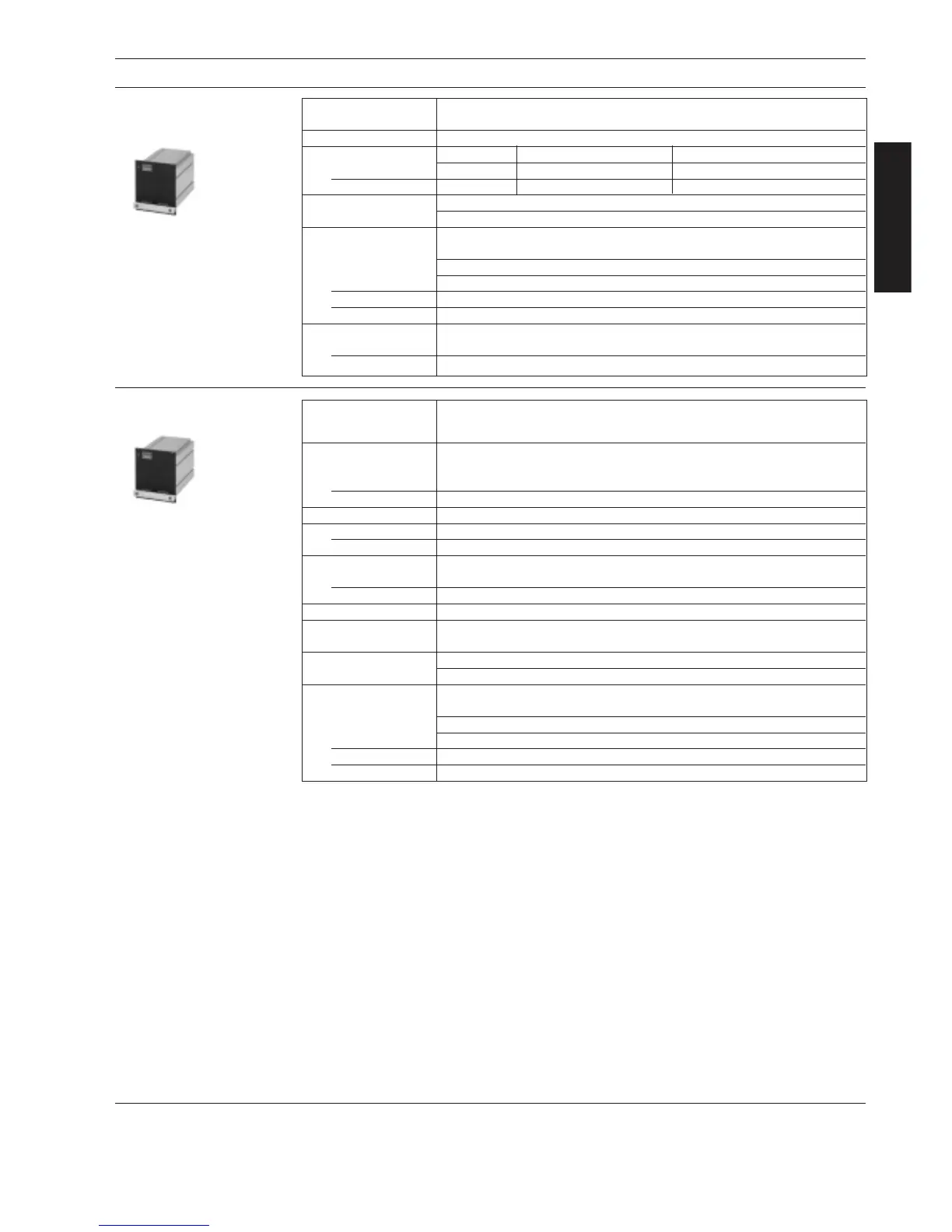

Specifications
2. Specifications Safety barrier & cleaning unit
Application As combined unit with MAG 6000 only and MAG 1100 Ex/3100 Ex in the size
range
1
/
4
" - 12"
Ex approval [EEx ia/ib] IIB
Cable parameter Group Capacity in mF Inductance in mH
Electrode cable IIB £ 31 £ 80
Coil cable IIB £ 0.5 £ 8
Ambient temperature During operation: -5 to 120°F
During storage: -5 to 160°F
rack mount
Enclosure material Standard rack mount in aluminum/steel (DIN 41494)
Width: 4.75 inch
Height: 5.25 inch
Enclosure rating NEMA 2
Mechanical load 1 G, 1-800 Hz sinusoidal in all directions to EN 60068-2-36
EMC performance
Emission EN 50081-1 (Light industry)
Immunity EN 50082-2 (Industry)
2.5.3
Safety barrier (ia/ib)
for sizes up to 12'’
Application For use together with MAG 5000 and 6000 rack mount to clean the
electrodes on MAG 1100, MAG 3100 or MAG 5100 W.
NB Must not be used with intrinsically safe systems
Cleaning voltage
(unloaded)
a.c. cleaning 60 V a.c.
d.c. cleaning 30 V d.c.
Cleaning period 60 sec. + 60 sec. pause period
Relay Switch relay activated when cleaning is in progress
Load 42 V/2 A
Operation
Automatic Yes
Manual No
Indicator lamps LEDs: "ON" and "CLEANING"
Supply voltage and 115-230 V a.c. +10% to -15%, 50-60 Hz, 7 VA cleaning, 5 VA stand by
power consumption
Ambient temperature During operation: -5 to 120°F
During storage: -5 to 160°F
Rack mount
Enclosure material Standard rack mount in aluminum/steel (DIN 41494)
Width: 4.75 inch
Height: 5.25 inch
Enclosure rating NEMA 2
Mechanical load 1 G, 1-800 Hz sinusoidal in all directions to EN 60068-2-36
2.5.4
Cleaning unit
