MAGFLO

Installation of signal

conv.

6.4

Signal converter with

cleaning unit

(continued from page 38)

Step 1 + 2

Please refer to page 38.

Step 3 (Rack mount units)

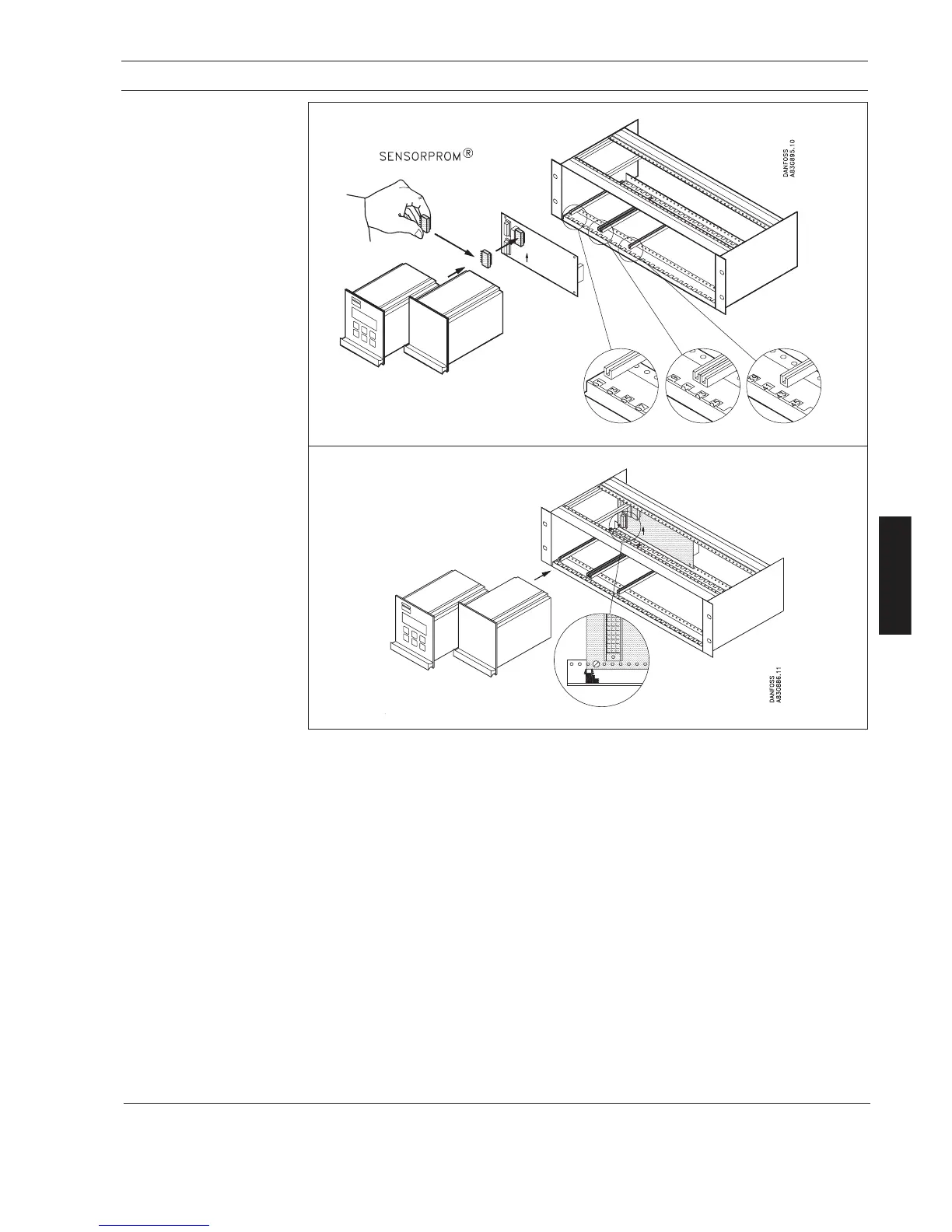

Fit the SENSORPROM

memory unit on the connection board supplied with the cleaning unit.

The SENSORPROM

unit is delivered mounted in the terminal box of the sensor. The

connection board supplied with the signal converter is not used.

Step 4 (Rack mount units)

Mount the guide rails in the rack system as shown. Distance between guide rails is 4.52 inch.

Guide rails are supplied with the rack system and not with the signal converter.

Step 5 (Rack mount units)

Mount the connection board as shown. The mounting screw must be installed just in line with the

guide rails.

Step 6 (Rack mount units)

Connect the cables as shown under "Electrical connection", section 7.

Step 7 (Rack mount units)

Select AC-cleaning or DC-cleaning mode at the switch located on the base of the cleaning unit.

Step 8 (Rack mount units)

Insert the cleaning unit and the signal converter in the rack system.

6. Installation of signal converter

(From sensor terminal box)
