MAGFLO
â
D & W
mm inch mm inch mm inch mm inch mm inch mm inch mm inch
25 1" 187 7.4 N/A N/A N/A N/A 200 7.9 200 7.9 N/A N/A
40 1½” 197 7.8 N/A N/A N/A N/A 200 7.9 200 7.9 N/A N/A
50 2" 188 7.4 N/A N/A 200 7.9 N/A N/A 200 7.9 N/A N/A
65 2½” 194 7.6 N/A N/A 200 7.9 N/A N/A 200 7.9 N/A N/A
80 3" 200 7.9 N/A N/A 200 7.9 N/A N/A 200 7.9 N/A N/A
100 4" 207 8.1 N/A N/A 250 9.8 N/A N/A 250 9.8 N/A N/A
125 5" 217 8.5 N/A N/A 250 9.8 N/A N/A 250 9.8 N/A N/A
150 6" 232 9.1 N/A N/A 300 11.8 N/A N/A 300 11.8 N/A N/A
200 8" 257 10.1 350 13.8 350 13.8 N/A N/A 350 13.8 N/A N/A
250 10" 284 11.2 450 17.7 450 17.7 N/A N/A 450 17.7 N/A N/A
300 12" 310 12.2 500 19.7 500 19.7 N/A N/A 500 19.7 N/A N/A
350 14" 362 14.3 550 21.7 550 21.7 N/A N/A 550 21.7 N/A N/A
400 16" 387 15.2 600 23.6 600 23.6 N/A N/A 600 23.6 N/A N/A
450 18" 418 16.5 600 23.6 600 23.6 N/A N/A 600 23.6 N/A N/A
500 20" 443 17.4 625 24.6 625 24.6 N/A N/A 680 26.8 N/A N/A
600 24" 494 19.4 750 29.5 750 29.5 N/A N/A 820 32.3 N/A N/A
700 28" 544 21.4 875 34.4 875 34.4 N/A N/A N/A N/A 875 34.4
750 30" 571 22.5 N/A N/A N/A N/A N/A N/A N/A N/A 937 36.9
800 32" 606 23.9 1000 39.4 1000 39.4 N/A N/A N/A N/A 1000 39.4
900 36" 653 25.7 1125 44.3 1125 44.3 N/A N/A N/A N/A 1125 44.3
1000 40" 704 27.7 1250 49.2 1250 49.2 N/A N/A N/A N/A 1250 49.2
42" 704 27.7 N/A N/A N/A N/A N/A N/A N/A N/A 1250 49.2
1100 44" 755 29.7 N/A N/A N/A N/A N/A N/A N/A N/A 1375 54.1
1200 48" 810 31.9 1500 59.1 1500 59.1 N/A N/A N/A N/A 1500 59.1
4.3
Sensor MAG 5100 W
Dimensions
AWWA
Nominal
size
A
L
PN 10
PN 16 PN 40 Class 150

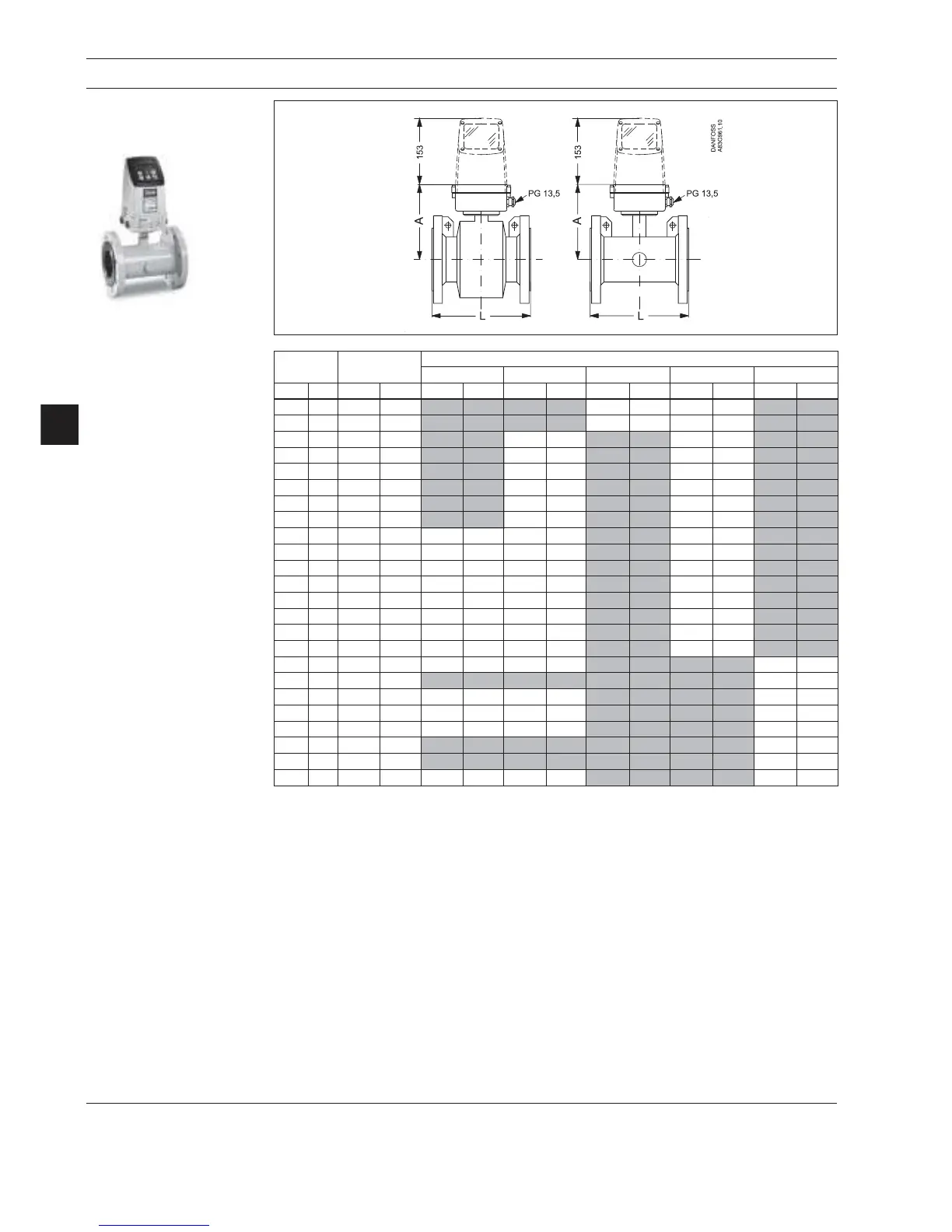

4. Dimensions and weight
