39
MAGFLO
â
Installation of signal
conv.
6.2.3
Remote installation
Wall mount
MAG 6000 & MAG 5000

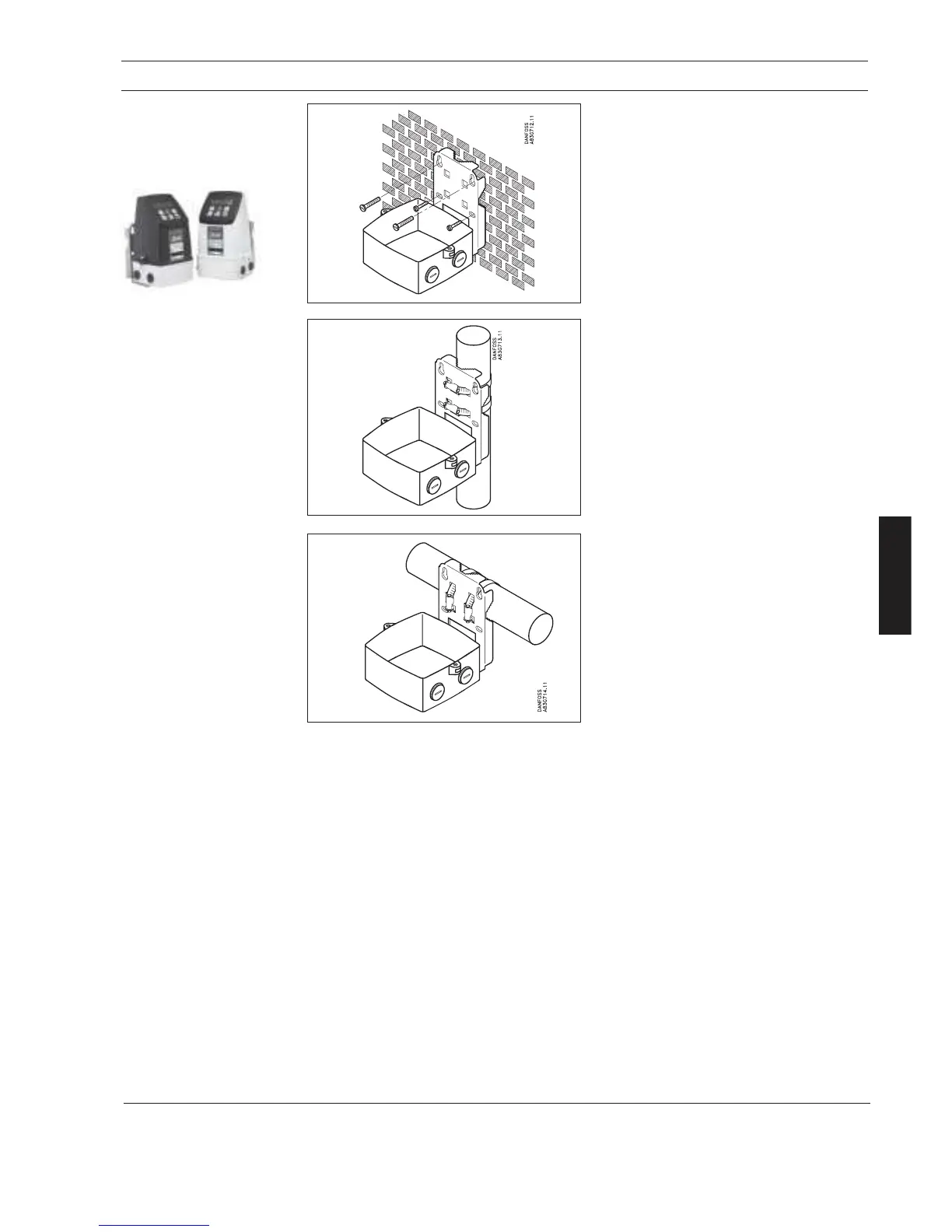

Step 3 (Wall mounting)
Mount wall bracket on a wall or in the back of a
panel.
Mount the wall mounting on a vertical or hori-
zontal pipe using an ordinary hose clamp or a
duct strap.
Vertical pipe mounting
Horizontal pipe mounting
6. Installation of signal converter
