8. Start-up & programming
Start-up & programming
Menu detail
8.4.1

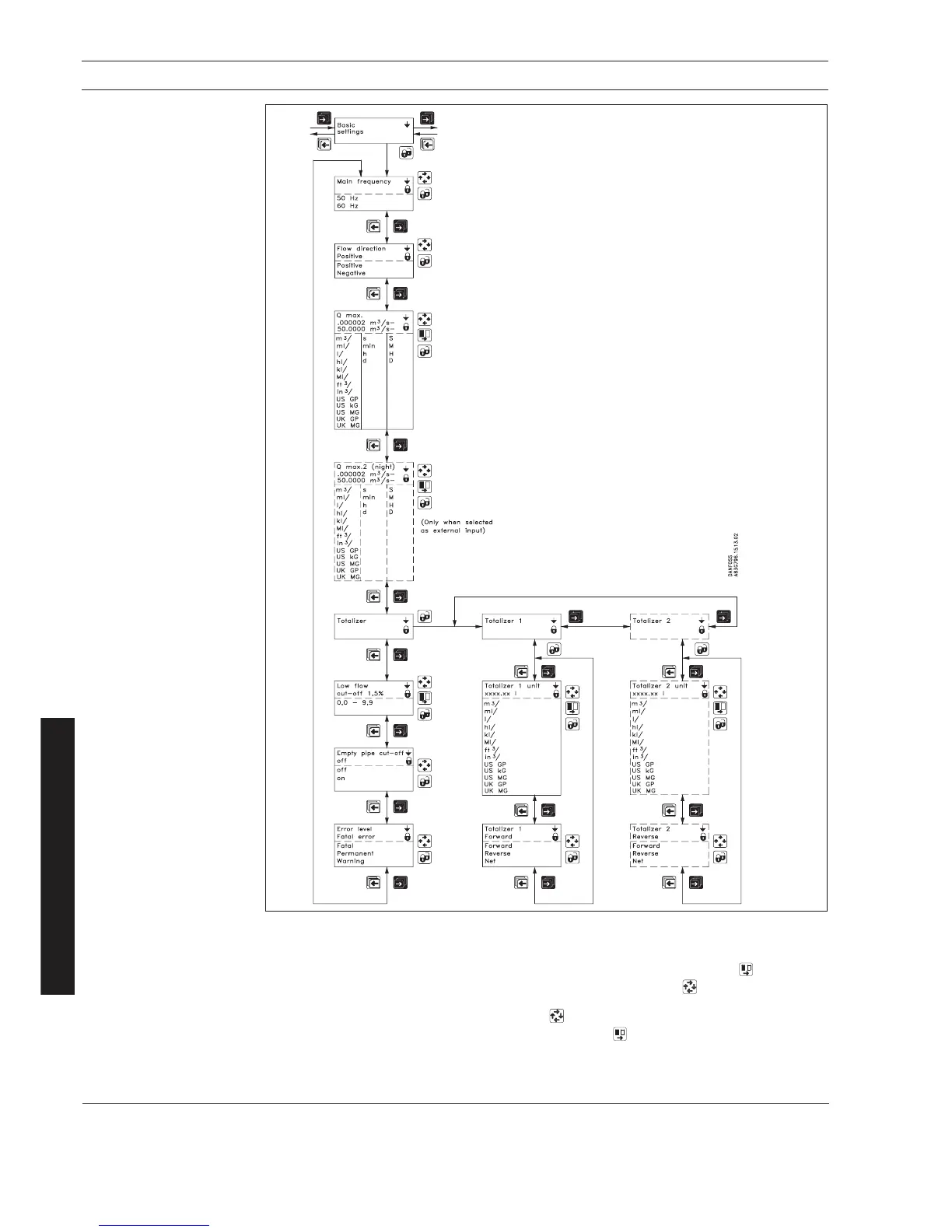

Basic settings
Comma for flow rate, totalizer 1 and totalizer 2 can be individually positioned.
· open the respective window.
· ensure that the cursor is positioned below the comma. Use the SELECT KEY .
· move the comma to the requested position. Use the CHANGE KEY .
Units are changed by means of the CHANGE KEY with the cursor placed below the unit selected.
Select units (cursor moved) by means of the SELECT KEY .
Totalizer 2 is not visible when batch is selected as digital output.
Main frequency
To select the main power supply frequency corresponding
to the country in which the flowmeter is installed.
(US = 60 Hz)
Flow direction
Select the correct flow direction in the pipe
Q
max.
Sets the measuring range, the analog outputs and the
frequency output. Value, decimal point, unit and time can
be set individually (setting is dimension dependent).
Q
max.
2
Sets the measuring range, the analog outputs and the
frequency output. Value, decimal point, unit and time can
be set individually (setting is dimension dependent).
Only visible when it has been choosen as external digital
input.
Totalizers
To set unit and decimal point.
Low flow cutt off
To set a % of selected Q
max.
. To filter noise in the
installation. Influences display and all outputs.
Error level
To select which error level, the flowmeter will detects an
error.
