Danfoss MAGFLO MAG 5000 User Manual

30
MAGFLO
â
D & W
4. Dimensions and weight
4.4
Sensor
MAG 3100 and
MAG 3100 W

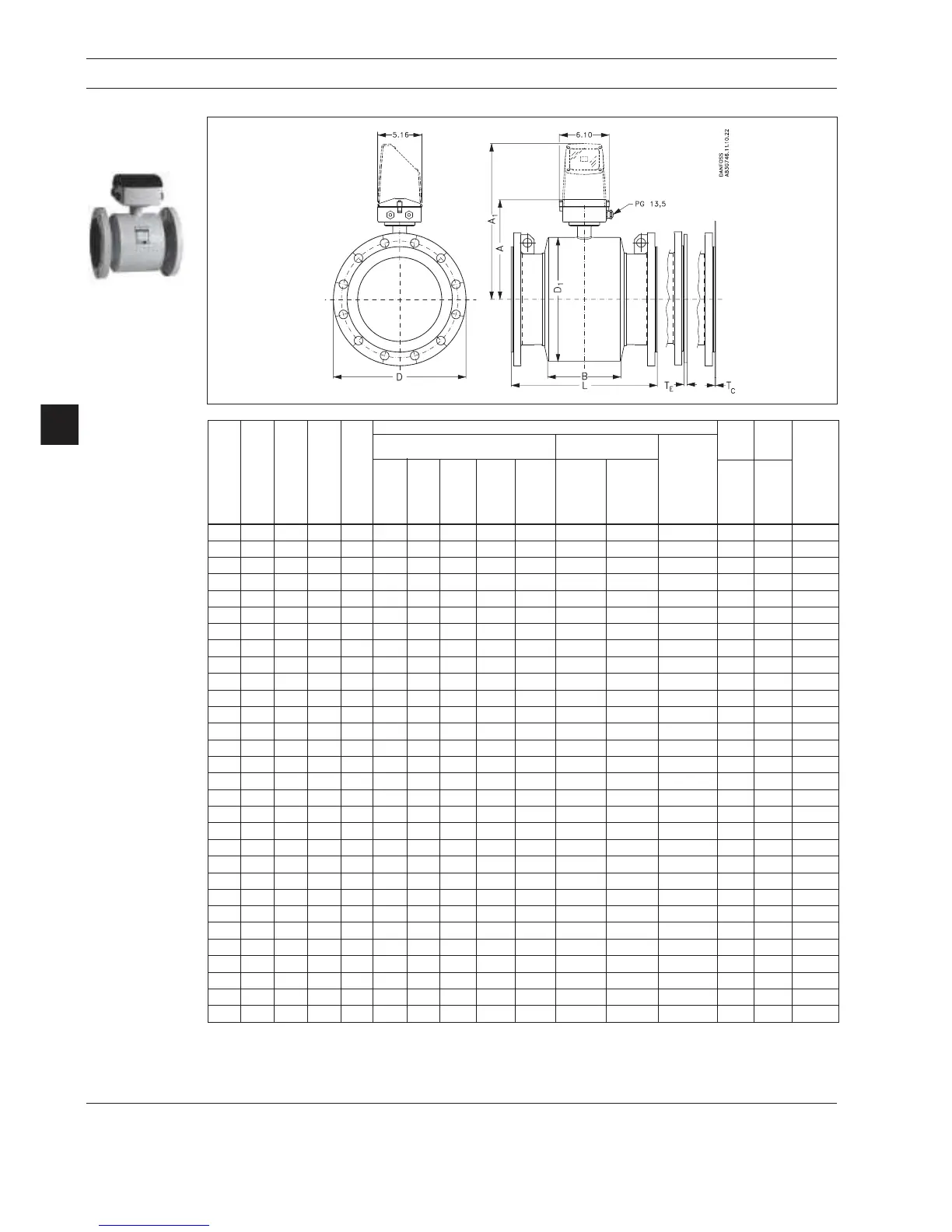

MAG 3100 & MAG 3100 W, integral or remote mount and separate
Size A
1)
A
1
B D
1
L
2)
EN 1092-1-2001 ANSI 16.5 AWWA
T
C
3)
T
E
3)
Weight
4)
C-207
PN PN PN PN PN Class Class
Class
6, 25 40 2.52 100 150 300
D
10,
16
[inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [lbs]
1
/
2
" 7.36 13.31 2.32 4.09 7.87 7.87 7.87 - - 7.87 7.87 - 0.24 11
1" 7.36 13.31 2.32 4.09 7.87 7.87 7.87 - 10.24 7.87 7.87 0.05 0.24 13
1
1
/
2
" 7.76 13.70 3.23 4.88 7.87 7.87 7.87 - 11.02 7.87 7.87 0.05 0.24 17
2" 8.07 14.01 2.83 5.47 7.87 7.87 7.87 10.87 11.81 7.87 7.87 0.05 0.24 28
2
1
/
2
" 8.35 14.29 2.83 6.06 7.87 7.87 7.87 12.60 13.78 7.87 10.71 0.05 0.24 30
3" 8.74 14.69 2.83 6.85 7.87 10.71 10.71 12.72 13.39 10.71 10.71 0.05 0.24 33
4" 9.53 15.47 3.35 8.43 9.84 9.84 9.84 14.96 15.75 9.84 12.20 0.05 0.24 44
5" 10.04 15.98 3.35 9.41 9.84 9.84 9.84 16.54 17.72 9.84 13.10 0.05 0.24 55
6" 10.87 16.81 5.39 11.10 11.81 11.81 11.81 16.34 17.72 11.81 11.81 0.05 0.24 66
8" 11.97 17.91 5.39 13.31 13.78 13.78 13.78 18.90 20.87 13.78 13.78 0.05 0.31 110
10" 13.07 19.02 5.39 15.47 17.72 17.72 17.72 21.65 24.41 17.72 17.72 0.05 0.31 155
12" 14.05 20.00 5.39 17.48 19.69 19.69 19.69 23.62 26.77 19.69 19.69 0.06 0.31 176
14" 14.25 20.20 10.63 17.76 21.65 21.65 21.65 27.56 31.50 21.65 21.65 - 0.06 0.31 242
16" 15.24 21.18 10.63 19.76 23.62 23.62 23.62 29.53 - 23.62 23.62 - 0.06 0.39 275
18" 16.45 22.40 12.20 22.16 23.62 23.62 23.62 - - 23.62 25.20 - 0.06 0.39 385
20" 17.44 23.39 13.78 24.17 24.61 24.61 26.77 - - 26.77 28.70 - 0.06 0.39 440
24" 19.45 25.39 16.93 28.15 29.53 29.53 29.53 - - 32.28 33.80 - 0.06 0.39 660
28" 21.42 27.36 19.69 32.13 34.45 - - - - - - 34.5 0.08 - 770
30" 22.48 28.43 21.89 34.21 - - - - - - - 36.9 0.08 - 880
32" 23.86 29.80 22.05 36.50 39.37 - - - - - - 39.4 0.08 - 1045
36" 25.71 31.65 24.80 40.63 44.29 - - - - - - 44.3 0.08 - 1233
40" 27.72 35.67 26.38 44.72 49.21 - - - - - - 49.2 0.08 - 1541
42" 27.72 35.67 26.38 44.72 49.21 - - - - - - 49.2 0.08 - 1541
44" 29.72 35.67 30.31 48.74 - - - - - - - 59.1 0.08 -
48" 31.89 37.83 31.18 53.07 59.06 - - - - - - 59.1 0.08 - 2751
54" 36.42 42.36 39.37 65.94 68.90 - - - - - - 68.9 0.12 - 3211
60" 38.27 44.21 40.15 65.83 - - - - - - - 73.8 0.12 - 3731
66" 40.35 46.30 44.49 75.39 78.74 - - - - - - 78.7 0.12 - 4257
72" 44.21 50.16 49.21 77.72 88.58 - - - - - - 88.5 0.12 - 5291
78" 48.15 54.09 54.13 85.59 98.43 - - - - - - 98.4 0.12 - 7492
1
)
1
/
2
" shorter with AISI terminal box (Ex and is PTFE high temperature with ss terminal box)
2
) When grounding rings are used, the thickness of the grounding ring must be added to the built-in length
3
) T
C
= Type C grounding ring, T
E
= Type E grounding ring
4
) Weights are for ANSI 150 without signal converter
D = Outside diameter of flange, see flange tables
