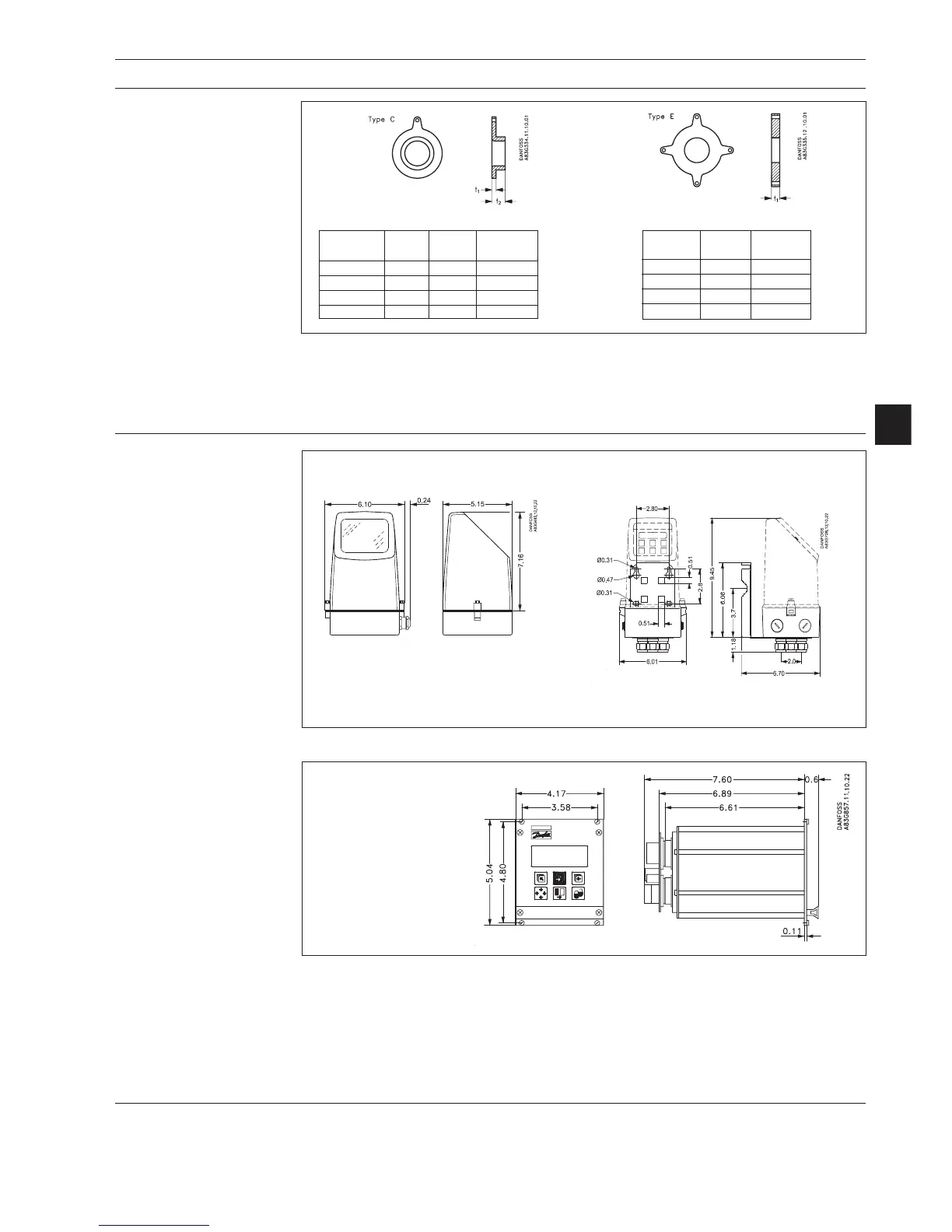

4. Dimensions and weight
Grounding/protection ring
Size
t
1
t
2
Weight
[inch] [inch] [lbs]
1" to 10" 0.05 0.6 <1
12" to 24" 0.06 0.8 1-6
28" to 48" 0.08 1.0 6-11
54" to 78" 0.12 1.6 20-35
Size
t
1
Weight
[inch] [lbs]
1
/
2
" 0.2 0.15
1" to 6" 0.2 1-3
8" to 14" 0.3 4-9
16 to 24" 0.4 14-28
Type C flanges for liners of neoprene, EPDM, Linatex
â
and ebonite.
Type E flanges for liners of PTFE.
Note
MAG 3100 high temperature (PTFE) is always equipped with 2 pcs. type E grounding flanges.
4.5
Signal converter
Integral mount signal converter
Weight: MAG 6000 and MAG 5000: 2.0 lbs
Weight: Wall bracket: 2.0 lbs
Wall mount signal converter
Rack mount, standard unit
Weight incl. back print:
MAG 5000: 1.8 lbs
MAG 6000: 1.8 lbs
Safety barrier (ia/ib): 2.2 lbs
Safety barrier (ia): 1.8 lbs
Cleaning unit: 2.0 lbs
Integral or wall mount
polyamide
