MAGFLO
â
Specifications
14
MAG 5000 or MAG 6000 used with MAG 3100 W or MAG 1100 PFA2.6

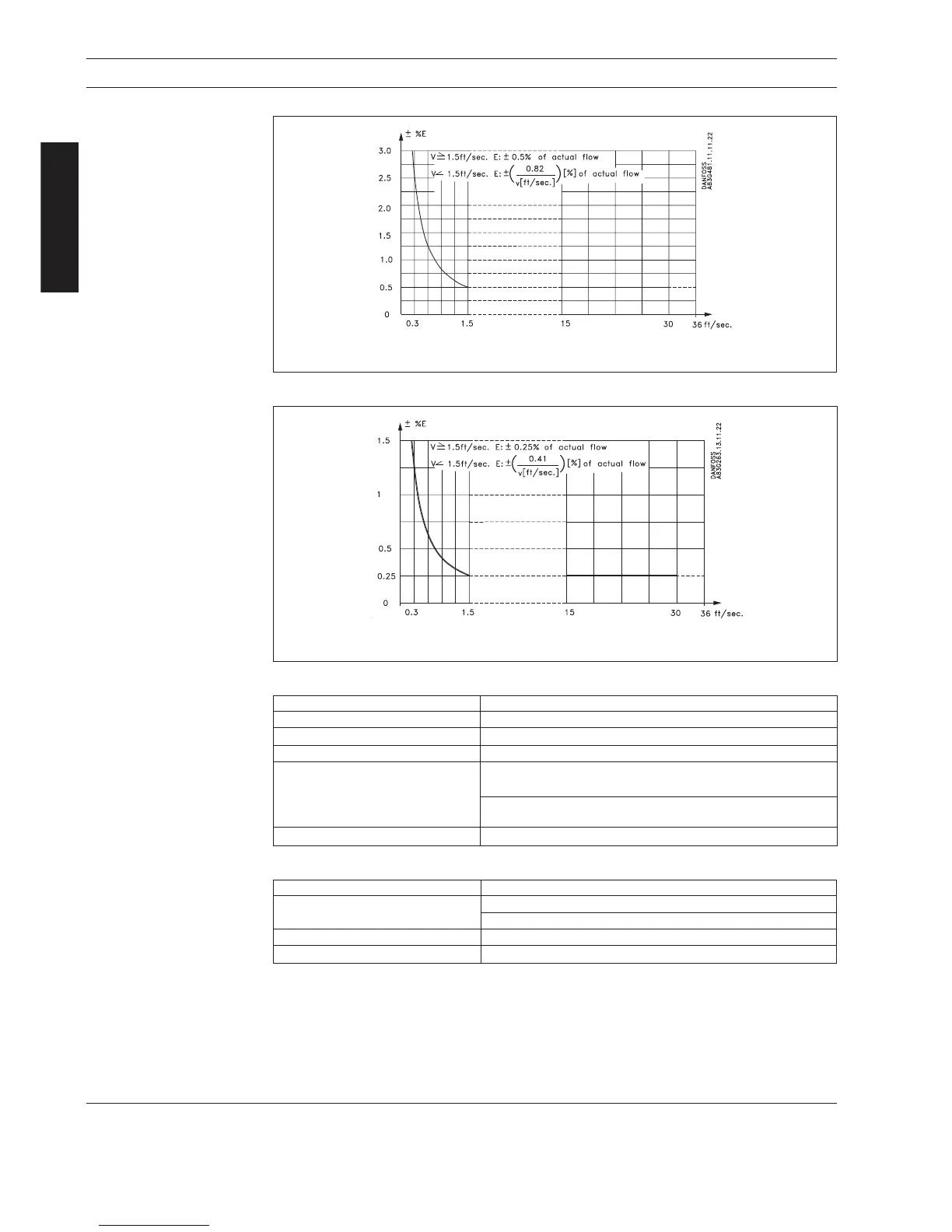

Meter uncertainty
V: Actual flow velocity [ft./s]
E: Meter uncertainty as a percentage of actual flow
MAG 6000 used with MAG 3100, MAG 1100 Ceramic or MAG 5100 W
V: Actual flow velocity [ft./s]
E: Meter uncertainty as a percentage of actual flow
Reference conditions (ISO 9104 and DIN/EN 29104)
Temperature of medium 68°F ±9 F
Ambient temperature 68°F ±9 F
Supply voltage Un ±1%
Warming-up time 30 min.
Incorporation in pipe section Inlet section 10 * Nominal pipe size (sizes up to 48"),
5 * Nominal pipe size (sizes up to 48")
Outlet section 5 * Nominal pipe size (sizes up to 48"),
3 * Nominal pipe size (sizes up to 48")
Flow conditions Fully developed flow profile
Additions in the event of deviations from reference conditions
Current output As pulse output ±(0.1% of actual flow +0.05% FSO)
Effect of ambient temperature Display/frequency/pulse output: < ±0.003% / < ±0.0017°F
Current output: < ±0.005% / < ±0.0028°F
Effect of supply voltage < 0.005% of measuring value on 1% change
Repeatability ±0.1% of actual flow for V ³ 1.5 ft./sec.
