6. Installation of signal converter

6.2.6

Installation using wall

mounting kit

(continued from page 38)

Step 1 + 2

Please refer to page 38.

Step 3 (Rack mount units)

Mount the NEMA 4X enclosure on the wall with four screws.

Step 4 (Rack mount units)

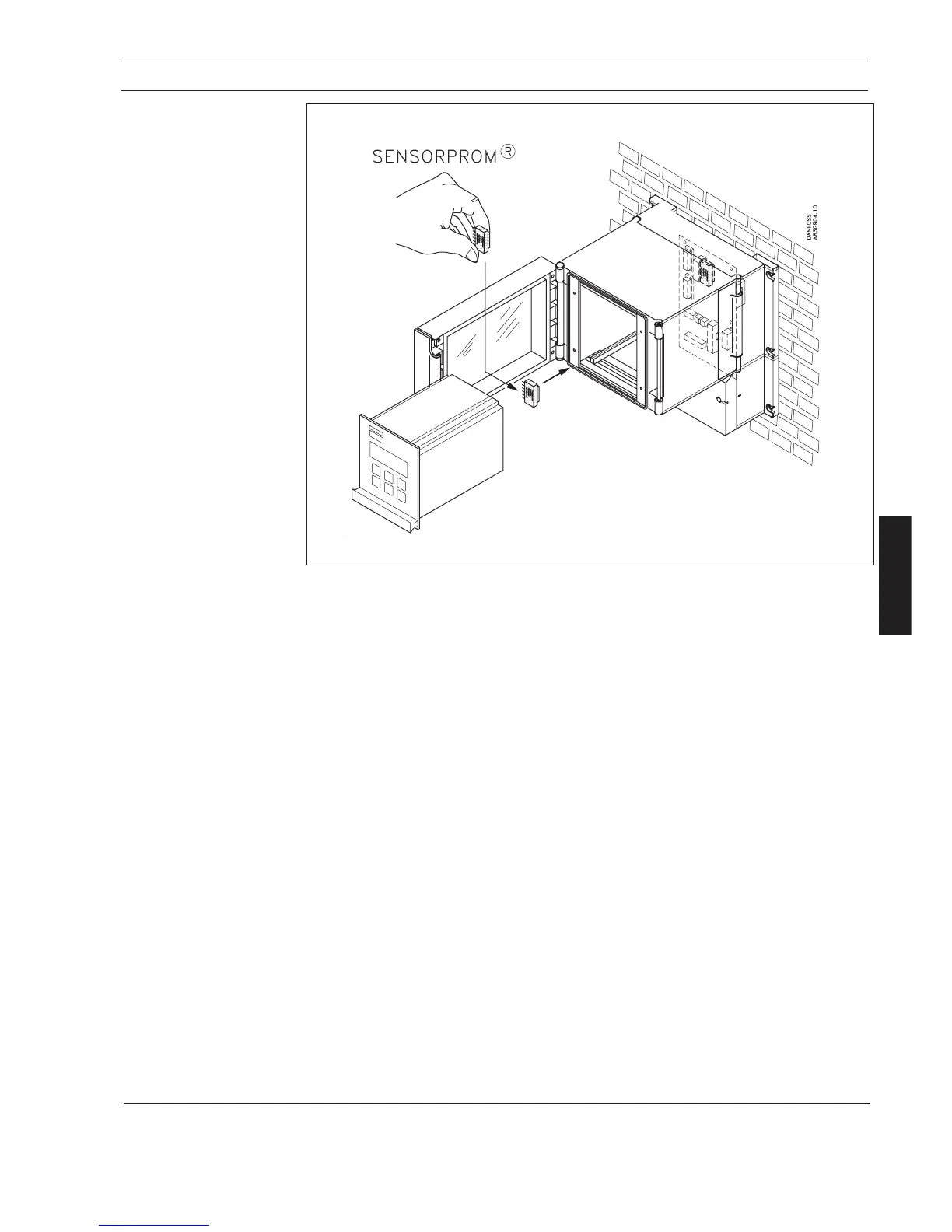

Mount the SENSORPROM

memory unit on the connection board as shown.

The SENSORPROM

unit is supplied with the sensor in the terminal box. The connection board

for NEMA 4X wall mounting boxes must be used (only applicable if parts are bought separate and

not as one unit).

Step 5 (Rack mount units)

Connect the cables to the terminals, see "Electrical connection", section 7.

Step 6 (Rack mount units)

Insert in the signal converter and close the cover.

(From sensor terminal box)
