Installation of signal
conv.
6.2.8
Installation using back of
panel mounting kit
(continued from page 38)
Step 1 + 2
Please refer to page 38.
Step 3 (Rack mount units)

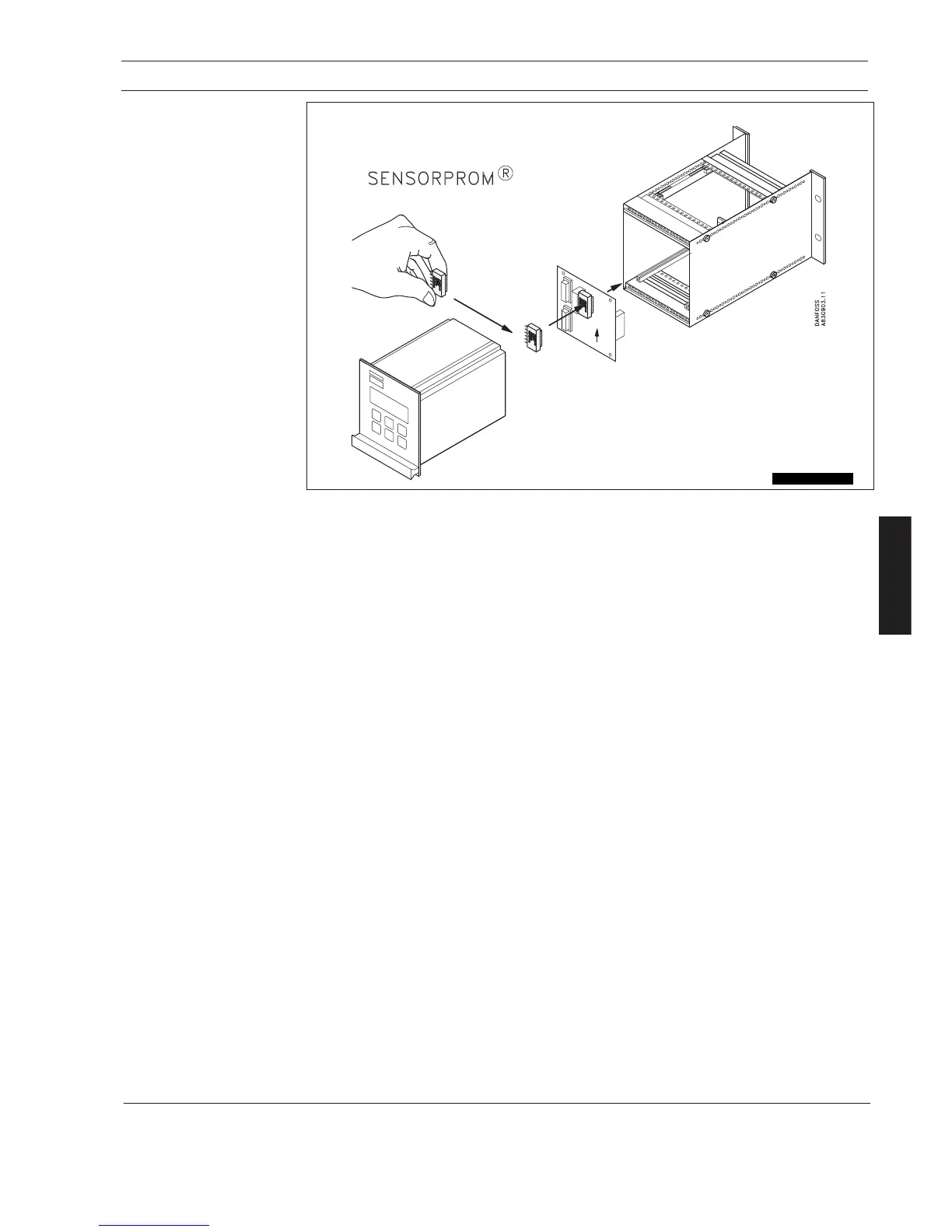

Mount the SENSORPROM
®
memory unit on the connection board as shown.
The SENSORPROM
®
unit is supplied with the sensor in the terminal box.
Step 4 (Rack mount units)
Mount the connection board in the back of the enclosure.
Step 5 (Rack mount units)
Connect the cables as shown under "Electrical connection", section 7.
Step 6 (Rack mount units)
Mount the enclosure in the back of a panel with four screws.
Step 7 (Rack mount units)
Insert in the signal converter.
6. Installation of signal converter
(From sensor terminal box)
To Next Page
