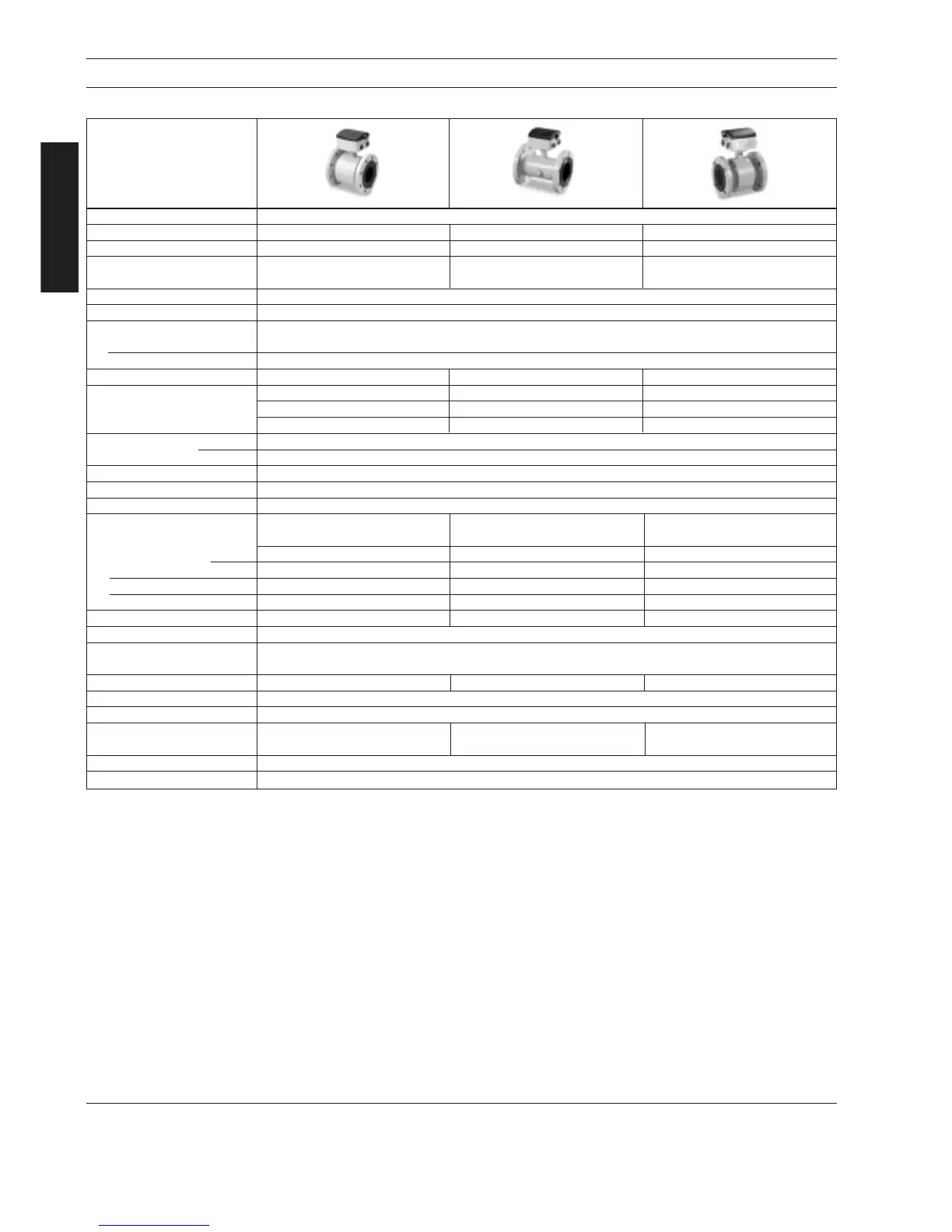

Specifications
10
Type Sensor with flanges
Design Straight Coned down 1 pipe size Straight
Nominal size inch 1" - 1½" 2" - 12" 14" - 48"
Liner Hard elastomer Composite elastomer Hard elastomer
(hard rubber) (hard & soft rubber) (hard rubber)
Liner approvals WRc, NSF WRc, NSF WRc, NSF
Medium temperature 25 to 200°F
Ambient temperature
Remote signal converter -40 to 200°F
Compact signal converter -5 to 125°F
Operating pressure 0.15 to 580 psi 0.45 to 300 psi 0.15 to 200 psi
Excitation frequency 12.5 Hz 2-2½": 12.5 Hz 3.125 Hz
3-6": 6.25 Hz
8-12": 3.125 Hz
Enclosure rating Standard NEMA 4X / 6 (3 ft. submersion for 30 min)
Option NEMA 6P (30 ft. continuous submersion)
Cable entries 4 Pg 13.5
Mechanical load 18-1000 Hz random, 3.17 G rms in all directions to EN 60068-2-36
Test pressure 1.5 ´ nominal pressure
Flanges
EN 1092-1 Standard 600 psi 2-6": 200 psi 150 psi
8-12": 150 psi
Option 8-12": 200 psi 200 psi
ANSI B16.5 Standard Class 150 lb Class 150 lb 14"-24": Class 150 lb
AWWA C-207 Standard 28"-48": Class D
Pressure drop at 3 m/sec. As straight pipe Max. 0.35 psi As straight pipe
Electrodes AISI 316 Ti (1.4571)
PE/grounding electrodes
Standard AISI 316 Ti (1.4571)
Measuring pipe/meter body AISI 304 (1.4301) Composite elastomer AISI 304 (1.4301)
Flanges Carbon steel
Housing Carbon steel
Surface finish Two component epoxy Polyester powder coat Two component epoxy
min. 150 microns min. 100 microns min. 150 microns
Color RAL 7035 pale grey
Approvals
Conforms to WRc, NSF
1
) For sizes greater than 24" PED conformity is available as a cost added option, the basic unit will only carry the LVD (Low Voltage Directive)
and EMC approval.
2. Specifications MAG 5000 and MAG 5000 CT
2.4 Sensor MAG 5100 W
