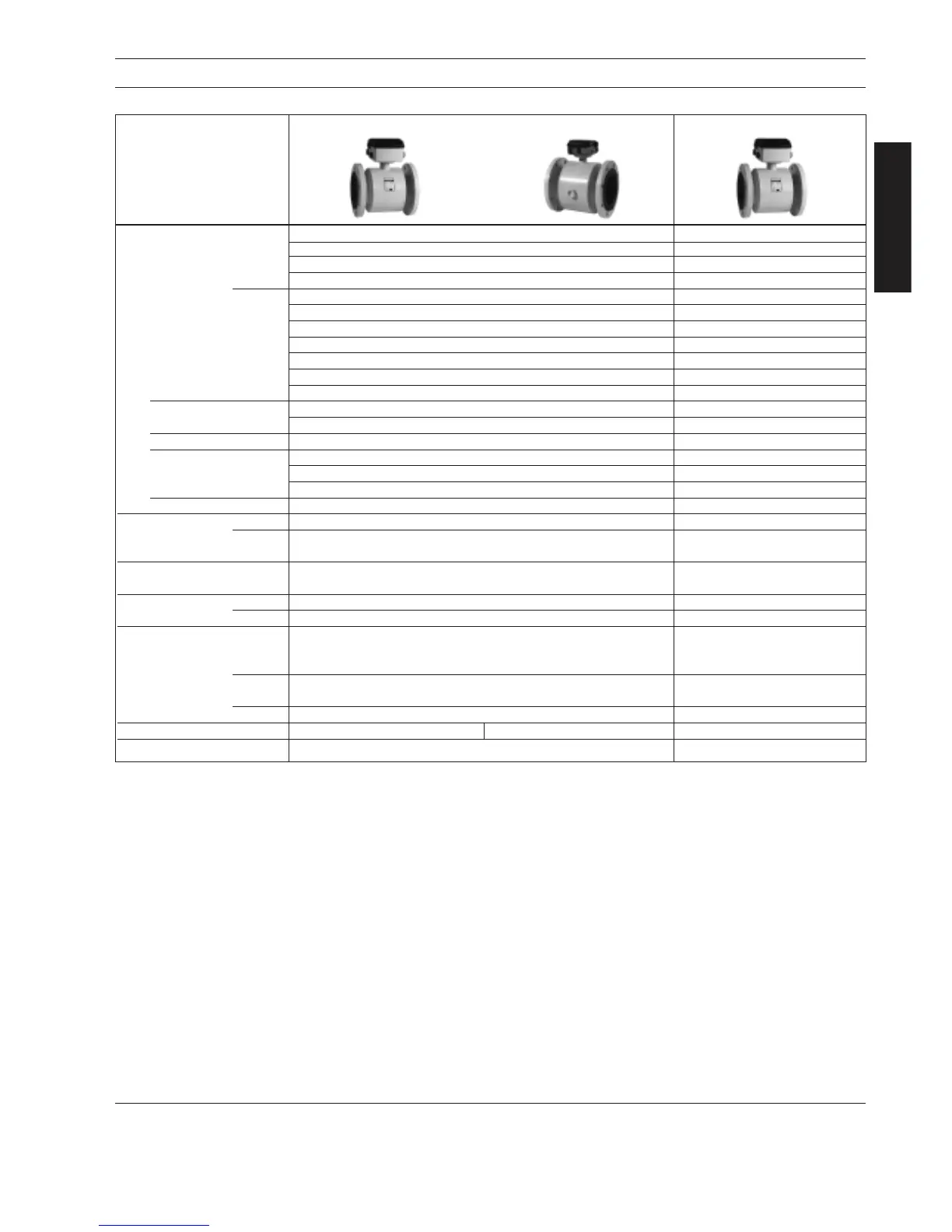

2.3 Sensor MAG 3100, MAG 3100 Ex and MAG 3100 W (continued)
2. Specifications MAG 3100, MAG 3100 Ex and MAG 3100 W
Flanges Standard DN 15-50: 600 psi DN 25-50: 600 psi
EN 1092-1:2001
1
) DN 65-150: 200 psi DN 65-150: 200 psi
Rased face DN 200-1000: 150 psi DN 200-1200: 150 psi
DN 1100 -2000: 80 psi
Option DN 65-1000: 80 psi DN 200-600: 200 psi
DN 1200-2000: 150 psi
DN 200-2000: 200 psi
DN 200-600: 350 psi
DN 65-600: 600 psi
DN 50-400 945 psi (DIN 2636)
DN 25-350 150 psi (DIN 2637)
ANSI B 16.5 3/4"-24": Class 150 (290 psi) 3/4"-24": Class 150 (290 psi)
(~BS 1560) 3/4"-24": Class 300 (725 psi)
AS 2129 3/4"-48": Table D/E
AS 4087 Class 14 (DN 50-1200, 200 psi)
Class 21 (DN 50-600, 300 psi)
Class 35 (DN 50-600, 500 psi)
AWWA C-207 28"-78": Class D (145 psi) 28"-48": Class D (145 psi)
Electrodes Standard AISI 316 Ti (1.4571) AISI 316 Ti (1.4571)
Option Hastelloy C-276, Platinum / Iridium, Titanium,
AISI 316 Ti Ceramic Coated, Tantalum
Grounding electrodes
Standard As measuring electrodes (except PTFE) AISI 316 Ti (1.4571)
Measuring pipe Standard AISI 304 (1.4301) AISI 304 (1.4301)
Option AISI 316L (1.4404)
Flange and
Standard Carbon steel Carbon steel
housing material Corrosion-resistant two-component coating (min. 150 mm) Corrosion-resistant two-compo-
nent coating (min. 150 mm)
Option AISI 304 (1.4301) flanges and carbon steel housing.
Coating as above
Option AISI 316 L (1.4404) flanges and housing
Ex-approval Remote mount
1
/
2
" - 12" EEx [ia/ib] IIB T4-T6
Approvals FM Class 1, division 2 FM Class 1, division 2
MAG 3100 MAG 3100 Ex MAG 3100 W
1
) EN 1092-1, DIN 2501 & BS 4504 have the same mating dimensions
