MAGFLO
â
Installation of signal
conv.
6. Installation of signal converter
6.2.7
Installation using front of
panel mounting kit
(continued from page 38)
Step 1 + 2
Please refer to page 38.
Step 3 (Rack mount units)

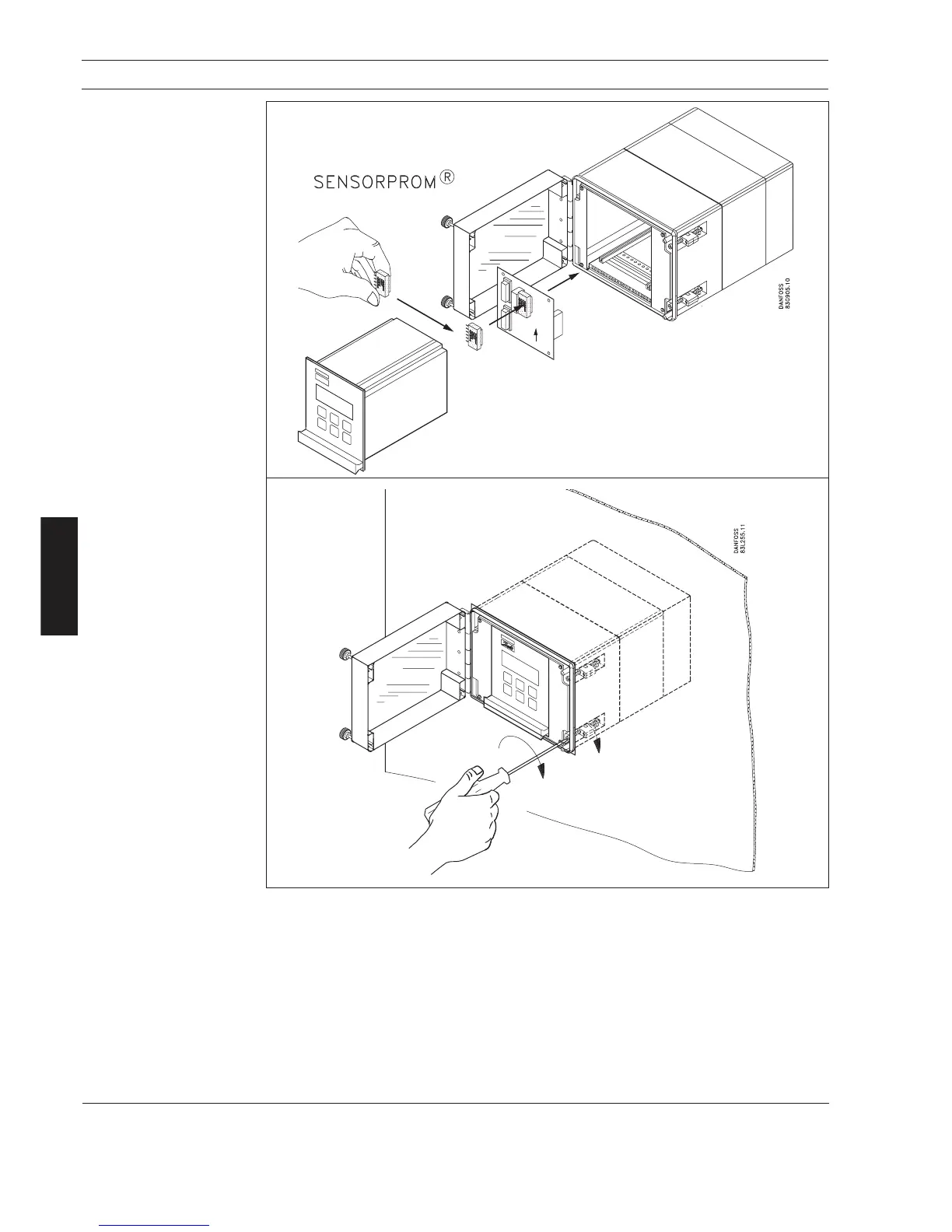

Mount the SENSORPROM
®
memory unit on the connection board as shown.
The SENSORPROM
®
unit is supplied with the sensor in the terminal box.
Step 4 (Rack mount units)
Fit the enclosure in a cut out at the front of a panel. Fasten the four screws accessible at the front.
Step 5 (Rack mount units)
Connect the cables as shown under "Electrical connection", section 7.
Step 6 (Rack mount units)
Insert in the signal converter and close the cover.
(From sensor terminal box)
To Next Page
