Installation of signal
conv.
6. Installation of signal converter
6.3
Signal converter with
safety barrier
(continued from page 38)
Step 1 + 2
Please refer to page 38.

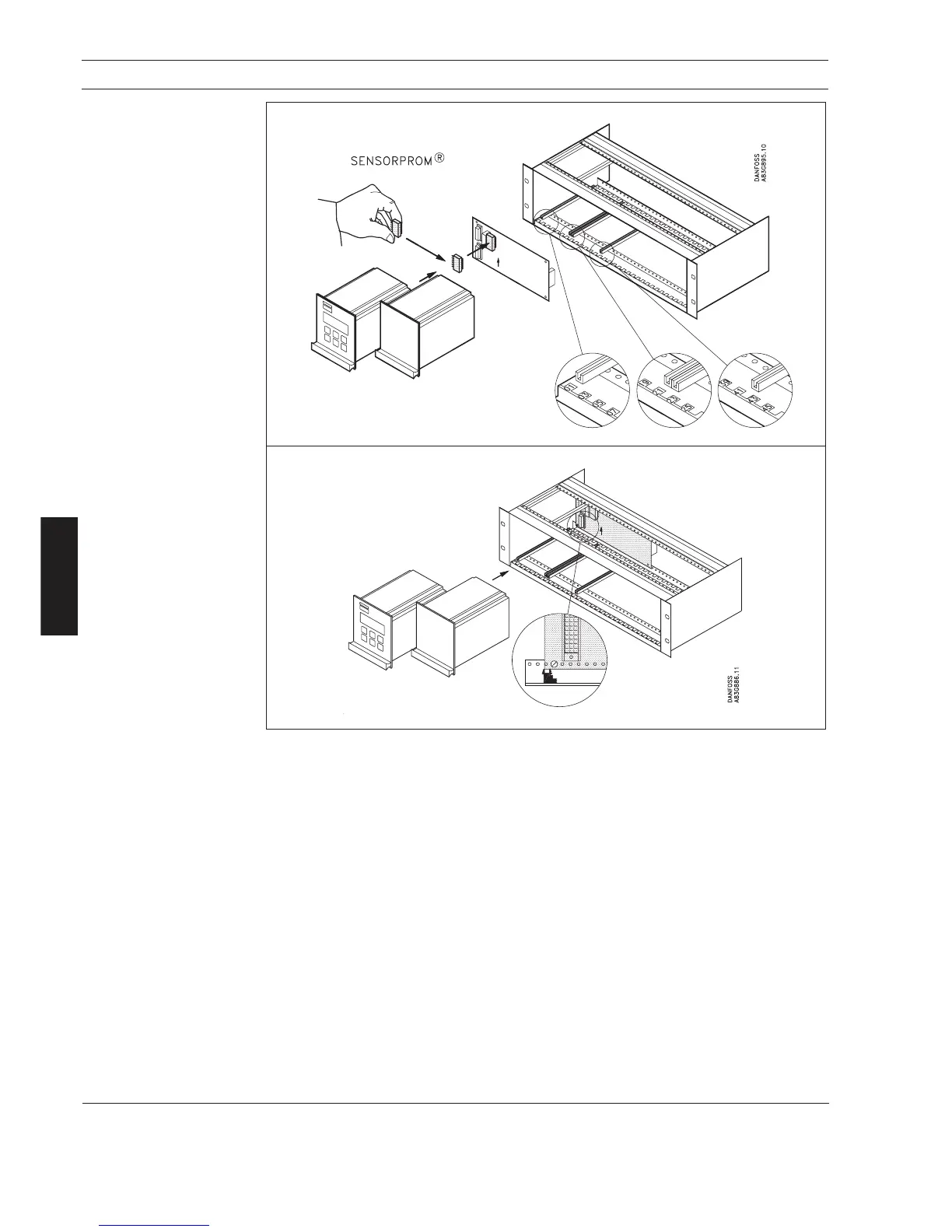

Step 3 (Rack mount units)
Fit the SENSORPROM
®
memory unit on the connection board supplied with the safety barrier.
The SENSORPROM
®
unit is delivered mounted in the terminal box of the sensor. The
connection board supplied with the signal converter is not used.
Step 4 (Rack mount units)
Mount the guide rails in the rack system as shown. Distance between guide rails is 4.52 inch.
Guide rails are supplied with the rack system and not with the signal converter.
Step 5 (Rack mount units)
Mount the connection board as shown. The mounting screw must be installed just in line with the
guide rails.
Step 6 (Rack mount units)
Connect the cables as shown under "Electrical connection", section 7.
Step 7 (Rack mount units)
Insert the signal converter and the safety barrier into the rack system.
(From sensor terminal box)
