MAGFLO
â

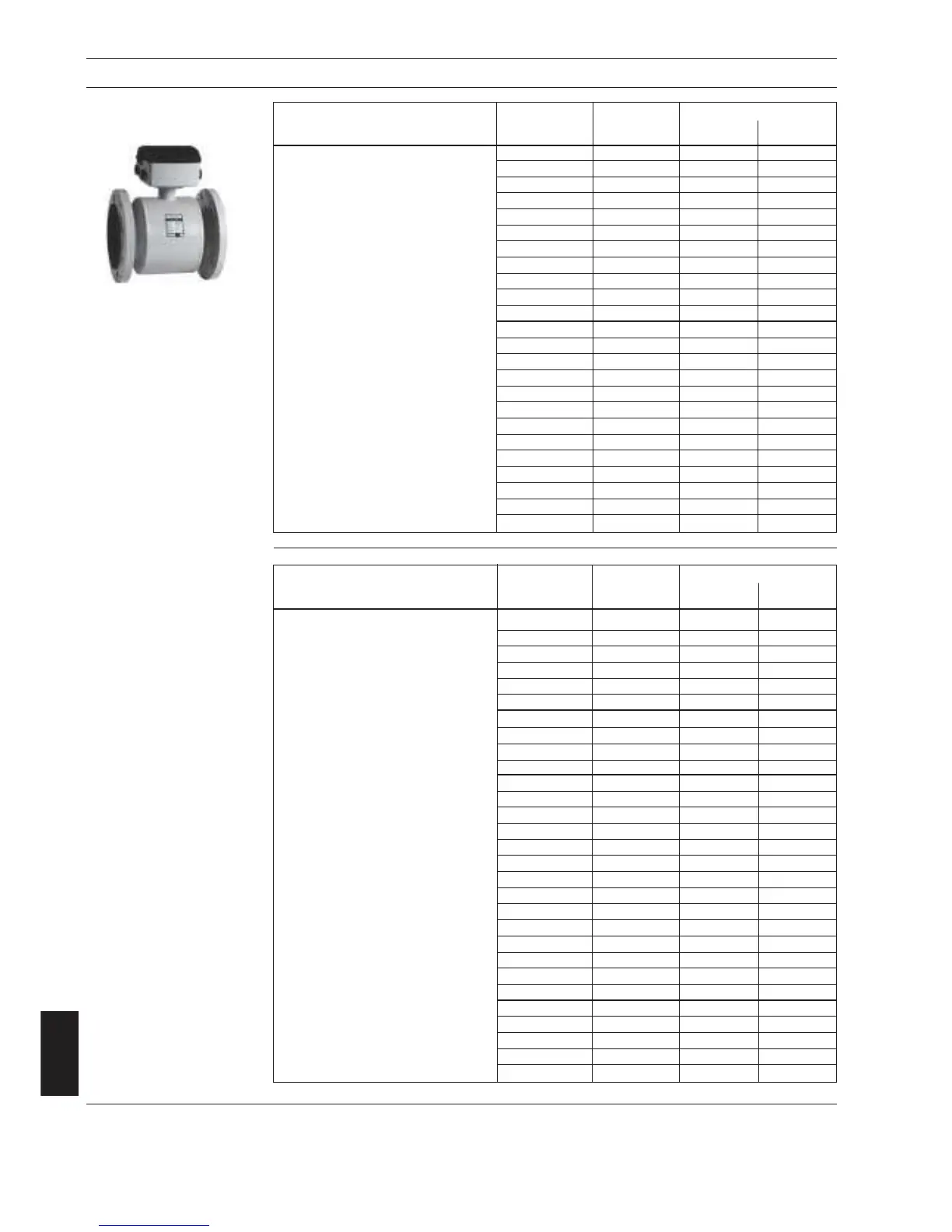

Ordering
Size PN Code No.
DIN flanges Neoprene EPDM
liner liner
Liner: Neoprene or EPDM 1" 40 083Z8000 083Z8100
Flanges: Mild steel, DIN 2501 1
1
/
2
" 40 083Z8001 083Z8101
Electrodes: AISI 316 Ti 2" 40 083Z8002 083Z8102
Grounding electrodes: AISI 316 Ti 2
1
/
2
" 16 083Z8003 083Z8103
Enclosure: NEMA 4X 3" 16 083Z8004 083Z8104
4" 16 083Z8005 083Z8105
5" 16 083Z8053 083Z8055
6" 16 083Z8007 083Z8107
8" 10 083Z8008 083Z8108
8" 16 083Z8208 083Z8308
10" 10 083Z8009 083Z8109
10" 16 083Z8209 083Z8309
12" 10 083Z8010 083Z8110
12" 16 083Z8210 083Z8310
14" 10 083Z8058 083Z8060
14" 16 083Z8059 083Z8061
16" 10 083Z8012 083Z8065
16" 16 083Z8063 083Z8066
18" 10 083Z8068 083Z8070
18" 16 083Z8213 083Z8071
20" 10 083Z8014 083Z8114
20" 16 083Z8214 083Z8314
24" 10 083Z8015 083Z8115
24" 16 083Z8215 083Z8315
26" 10 083Z8016 083Z8116
32" 10 083Z8017 083Z8117
36" 10 083Z8018 083Z8118
40" 10 083Z8019 083Z8119
48" 10 083Z8021 083Z8121
10. Ordering
10.4
Sensor MAG 3100 W
Nominal Flange type Code No.
ANSI/AWWA flanges size Neoprene EDPM
inch liner liner
1" ANSI 150 083Z8600 083Z8650
1½" ANSI 150 083Z8601 083Z8651
2" ANSI 150 083Z8602 083Z8652
2½" ANSI 150 083Z8603 083Z8653
3" ANSI 150 083Z8604 083Z8654
4" ANSI 150 083Z8051 083Z8052
5" ANSI 150 083Z8054 083Z8656
6" ANSI 150 083Z8056 083Z8057
8" ANSI 150 083Z8608 083Z8658
10" ANSI 150 083Z8609 083Z8659
12" ANSI 150 083Z8610 083Z8660
14" ANSI 150 083Z8611 083Z8661
16" ANSI 150 083Z8064 083Z8067
18" ANSI 150 083Z8613 083Z8663
20" ANSI 150 083Z8614 083Z8664
24" ANSI 150 083Z8615 083Z8665
28" AWWA Cl.D 083Z8616 083Z8666
30" AWWA Cl.D 083Z8622 083Z8672
32" AWWA Cl.D 083Z8617 083Z8667
36" AWWA Cl.D 083Z8618 083Z8668
40" AWWA Cl.D 083Z8619 083Z8669
42" AWWA Cl.D 083Z8620 083Z8670
44" AWWA Cl.D 083Z8673
48" AWWA Cl.D 083Z8621 083Z8671
Liner: Neoprene or EPDM
Flange: Carbon steel (A 105/St. 37.2),
ANSI Class 150 or
AWWA C-207, Class D
Electrodes: AISI 316 Ti
Grounding electrode: AISI 316 Ti
Enclosure: NEMA 6
(10 ft. of submersion for 72 hours)
