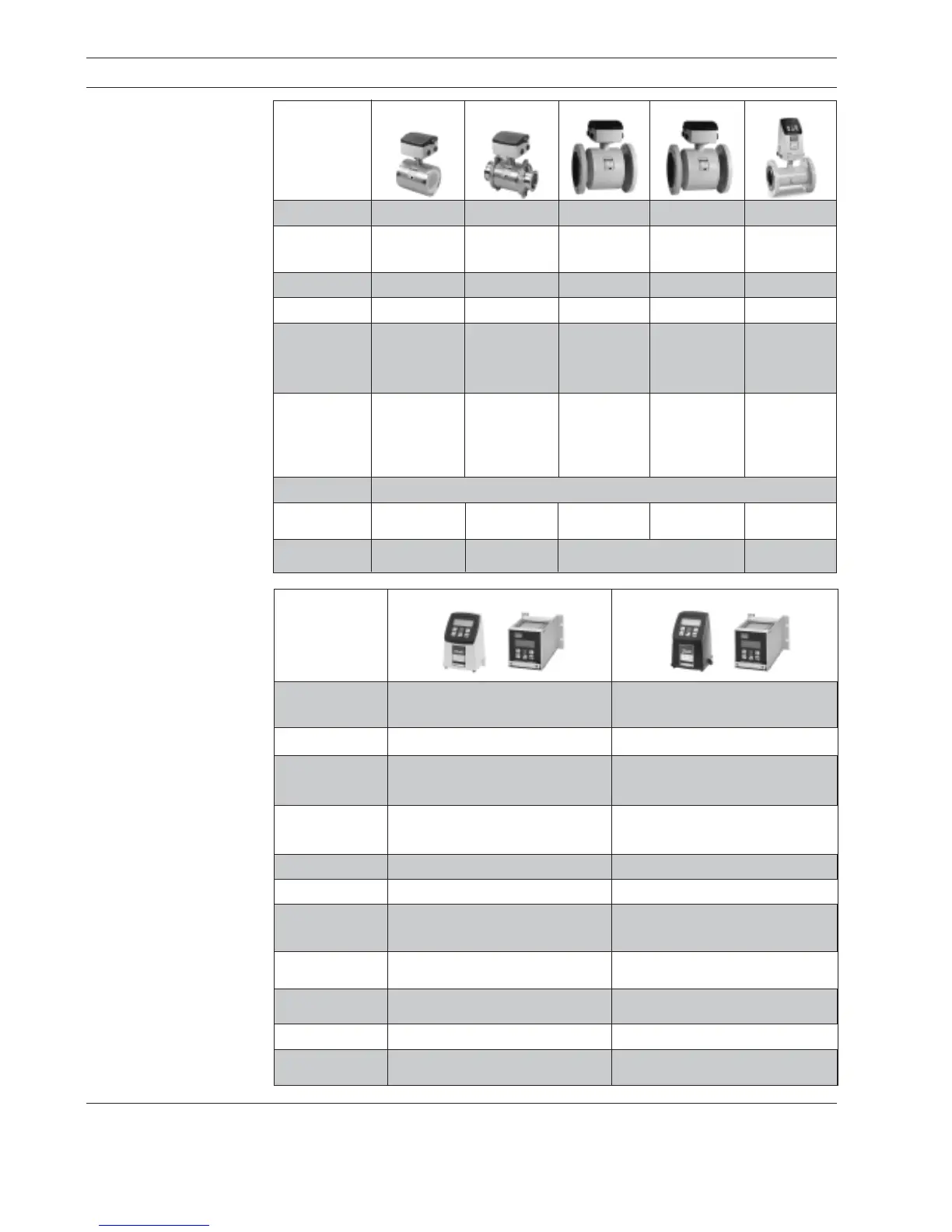

MAGFLO

Danfoss range of electro-
magnetic flowmeters
2
MAG 5000 MAG 6000
Outputs 1 current output 1 current output
1digital output 1digital output
1 relay output 1 relay output
Flow direction Uni/bidirectional Uni/bidirectional
Communication Optional Add-on modules
HART

HART

, DeviceNet, Profibus DP,
Profibus PA, CANopen
Display 3 lines 3 lines
20 characters 20 characters
(optional without display) (optional without display)
Meter uncertainty ±0.5% of rate ±0.25% of rate
Enclosure NEMA 2, NEMA 4X, NEMA 6 NEMA 2, NEMA 4X, NEMA 6
Custody transfer PTB PTB
approval (cold water) OIML R75
OIML R117
Ex-version [EEx ia/ib] IIB
Safety barrier intrinsically safe
Power supply 12-24 V a.c./d.c. 12-24 V a.c./d.c.
115-230 V a.c. 115-230 V a.c.
Batch No Yes
Approvals ULc general purpose ULc general purpose
FM Class 1, division 2 FM Class 1, division 2
MAG 1100 MAG 1100 MAG 3100 MAG 3100 W MAG 5100 W
FOOD
Size [inch]
1
/
4
" - 4"
3
/
8
" - 4"
1
/
2
" - 78" 1" - 48" 1" - 48"
Connection Flangeless Weld-in adapter, Flange Flange Flange
(Wafer) clamp adapter,
thread adapter
Pressure [psi] 600 600 1500 600 600
Temperature [
°°
°°
°F] 0 to 400 −20 to 300 −40 to 350 −20 to 200 −20 to 200
Liner Ceramic (Al
2
O
3
) Ceramic (Al
2
O
3
) Neoprene, EPDM, Neoprene and 1" - 1½" &
PFA PFA Teflon (PTFE), EPDM 14" - 48"
Ebonite, hard elastomer
Linatex

2" - 12"
composite elastomer
Electrodes Platinum Platinum AISI 316 Ti, AISI 316 Ti AISI 316 Ti,
Hastelloy C276 Hastelloy C276 Hastelloy C, Grounding electrode Grounding electrode
Platinum/Iridium,
Titanium,
Tantalum
Grounding electrode
Enclosure NEMA 4X & NEMA 6
Ex-version EEx ia/ib IIB T4-T6 EEx ia/ib IIB T4-T6
Houzandous area intrinsically safe intrinsically safe
Approvals FM Class 1, division 2, WRc, NSF
WRc, NSF
