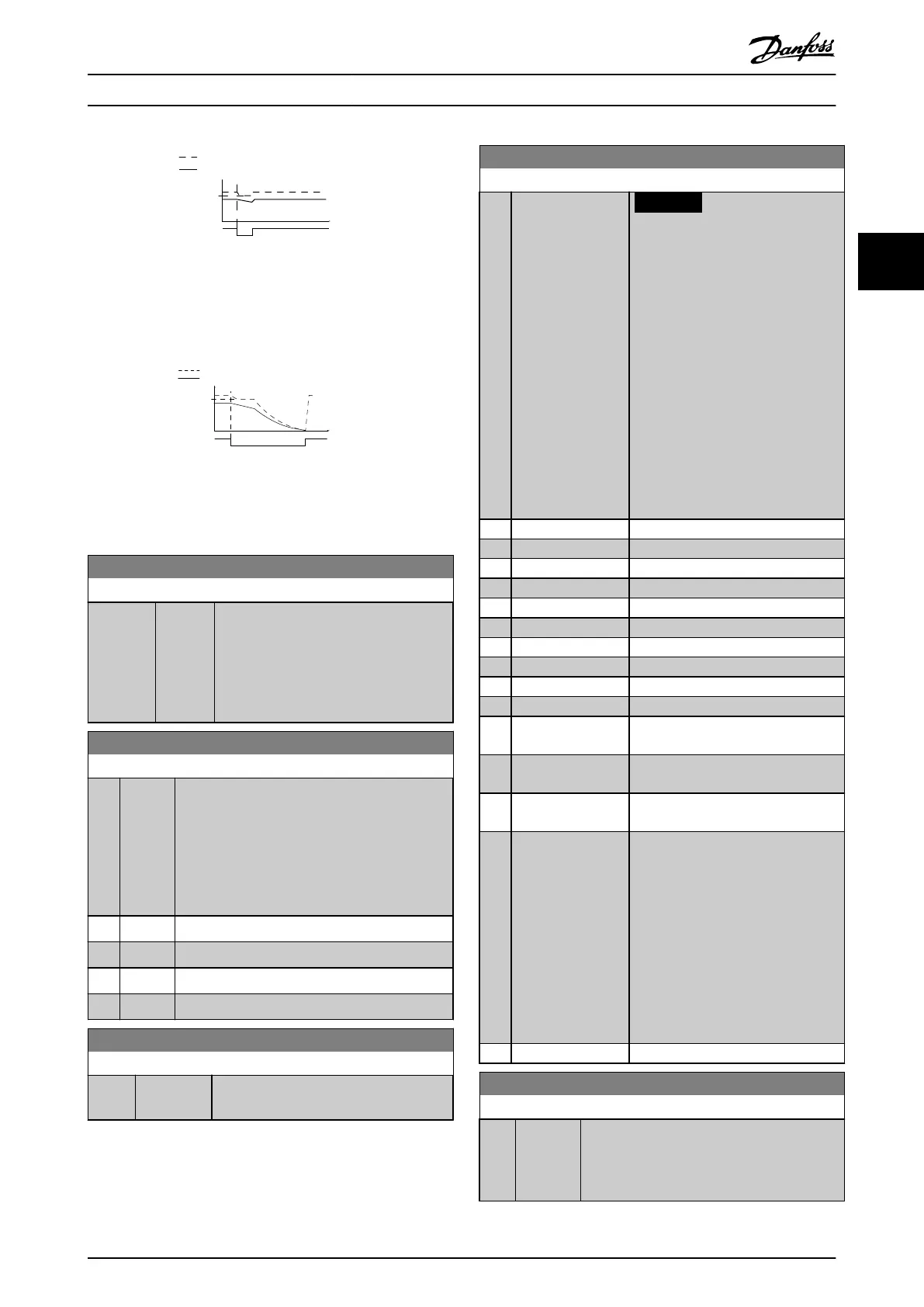

Danfoss VLT AQUA Drive FC 202 Programming Guide

Over Voltage Control Level
DC Voltage
Output Speed rpm
Mains
Time
130BT100.10
Par 14-11
Illustration 3.52 Kinetic Back-up, Short Mains Failure
Illustration 3.52 shows riding through as long as the energy
in the system allows it.
Mains Time
DC voltage
Output speed RPM
Overvoltage control level
130BT109.10
Par 14-11
Illustration 3.53 Kinetic Back-up, Longer Mains Failure
Illustration 3.53 shows the motor coasting when the energy
in the system is too low.
14-11 Mains Fault Voltage Level
Range: Function:
Size
related*
[180 -
600 V]
This parameter denes the threshold
voltage at which the selected function in
parameter 14-10 Mains Failure should be
activated. The detection level is at a
factor
2
of the value in
parameter 14-11 Mains Fault Voltage Level.
14-12 Response to Mains Imbalance
Option: Function:
Operation under severe mains imbalance
conditions reduces the lifetime of the motor.
Conditions are considered severe if the motor is
operated continuously near nominal load (for
example a pump or fan running near full speed).
When a severe mains imbalance is detected,
select 1 of the available functions.
[0] Trip Trips the frequency converter.
[1] Warning Issues a warning.
[2] Disabled No action.
[3] * Derate Derates the frequency converter.
14-16 Kin. Back-up Gain
Range: Function:
100 %* [0 - 500 %] Enter the kinetic back-up gain value in
percent.
3.13.3 14-2* Trip Reset
Parameters for conguring auto reset handling, special trip
handling, and control card self-test or initialization.
14-20 Reset Mode
Option: Function:
NOTICE
The motor may start without
warning. If the specied number
of automatic resets is reached
within 10 minutes, the frequency
converter enters [0] Manual reset
mode. After the manual reset is
performed, the setting in
parameter 14-20 Reset Mode
reverts to the original selection.
If the number of automatic
resets is not reached within 10
minutes, or when a manual reset
is performed, the internal
automatic reset counter returns
to 0.
[0] * Manual reset
[1] Automatic reset x 1
[2] Automatic reset x 2
[3] Automatic reset x 3
[4] Automatic reset x 4
[5] Automatic reset x 5
[6] Automatic reset x 6
[7] Automatic reset x 7
[8] Automatic reset x 8
[9] Automatic reset x 9
[10] Automatic reset x
10
[11] Automatic reset x
15
[12] Automatic reset x
20
[13] Innite auto reset Select the reset function after
tripping. Once reset, the frequency
converter can be restarted.
Select [0] Manual reset to perform a
reset via [Reset] or via the digital
inputs.
Select [1]-[12] Automatic reset x 1…x20
to perform 1–20 automatic resets
after tripping.
Select [13] Innite Automatic Reset for
continuous resetting after tripping.
[14] Reset at power-up
14-21 Automatic Restart Time
Range: Function:
10 s* [0 - 600
s]
Enter the time interval from trip to start of the
automatic reset function. This parameter is
active when parameter 14-20 Reset Mode is set
to [1]–[13] Automatic reset.
Parameter Description Programming Guide
MG20OB02 Danfoss A/S © 05/2018 All rights reserved. 135
3 3
