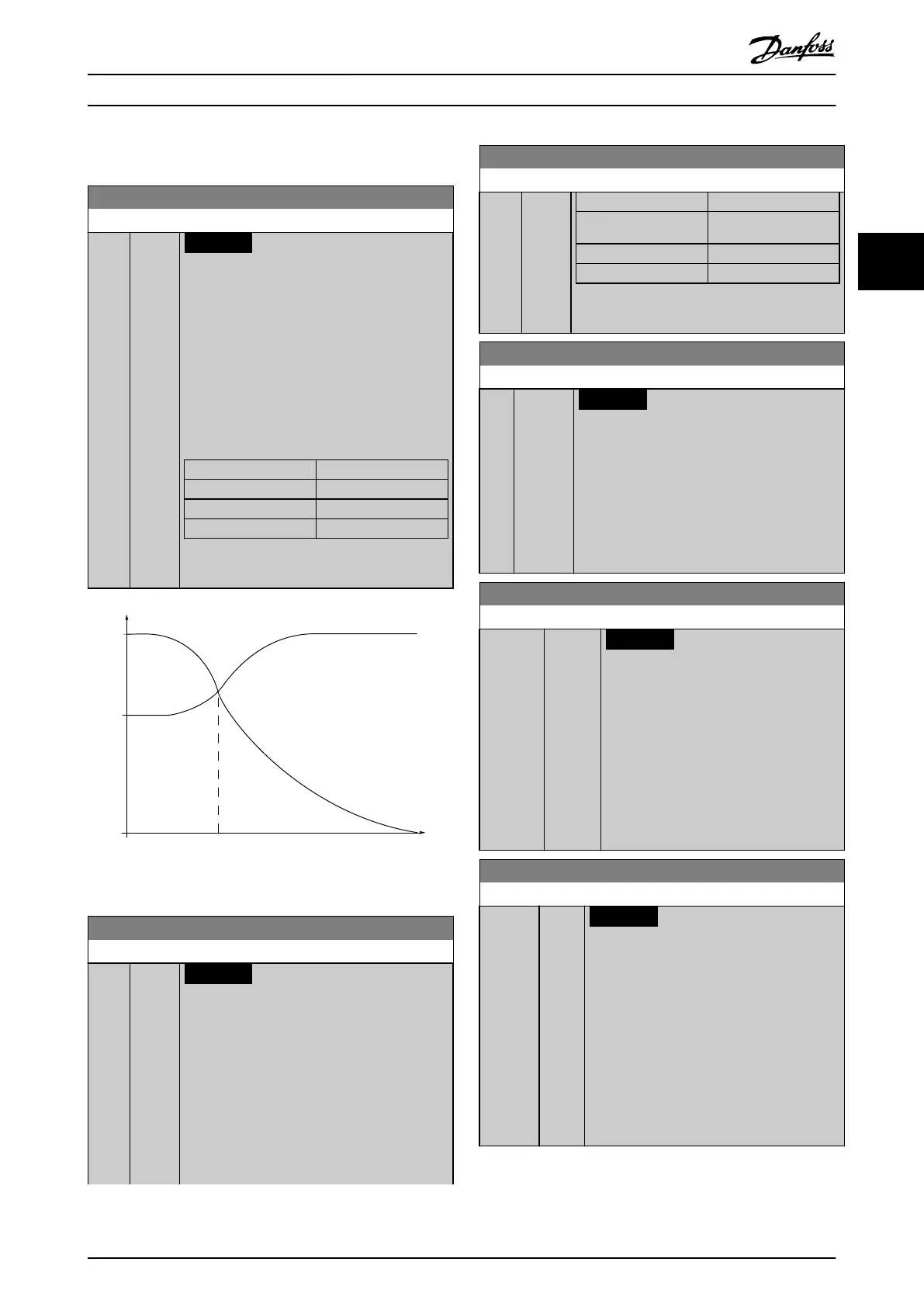

Danfoss VLT AQUA Drive FC 202 Programming Guide

3.3.10 1-6* Load Depend. Setting
1-60 Low Speed Load Compensation
Range: Function:
100
%*
[0 -
300 %]
NOTICE
Parameter 1-60 Low Speed Load Compen-
sation has no eect when
parameter 1-10 Motor Construction = [1]
PM, non-salient SPM.
Enter the % value to compensate voltage in
relation to load when the motor is running at
low speed and obtain the optimum U/f charac-
teristic. The motor size determines the frequency
range within which this parameter is active.
Motor size [kW] Changeover [Hz]
0.25–7.5 <10
11–45 <5
55–550 <3–4
Table 3.8 Changeover Frequency
130BA046.11
60%
0%
100%
U
m
Changeover
f
out
Par.1-60 Par.1-61
Illustration 3.10 Low Speed Load Compensation
1-61 High Speed Load Compensation
Range: Function:
100
%*
[0 -
300 %]
NOTICE
Parameter 1-61 High Speed Load Compen-
sation has no eect when
parameter 1-10 Motor Construction = [1]
PM, non-salient SPM.
Enter the % value to compensate voltage in
relation to load when the motor is running at
high speed and obtain the optimum U/f charac-
teristic. The motor size determines the frequency
range within which this parameter is active.
1-61 High Speed Load Compensation
Range: Function:
Motor size [kW] Changeover [Hz]
0.25–7.5 >10
11–45 <5
55–550 <3–4
Table 3.9 Changeover Frequency
1-62 Slip Compensation
Range: Function:
0 %* [-500 -
500 %]
NOTICE
Parameter 1-62 Slip Compensation has no
eect when parameter 1-10 Motor
Construction = [1] PM, non-salient SPM.
To compensate for tolerances in the value of
n
M,N
, enter the % value for slip compensation.
Slip compensation is calculated automatically,
that is based on the nominal motor speed n
M,N
.
1-63 Slip Compensation Time Constant
Range: Function:
Size
related*
[0.05 -
5 s]
NOTICE
Parameter 1-63 Slip Compensation
Time Constant has no eect when
parameter 1-10 Motor Construction =
[1] PM, non-salient SPM.
Enter the slip compensation reaction
speed. A high value results in slow
reaction, and a low value results in quick
reaction. If low-frequency resonance
problems occur, use a longer time setting.
1-64 Resonance Damping
Range: Function:
Size
related*
[0 -
500 %
]
NOTICE
Parameter 1-64 Resonance Damping has
no eect when parameter 1-10 Motor
Construction = [1] PM, non-salient SPM.
Enter the resonance damping value. Set
parameter 1-64 Resonance Damping and
parameter 1-65 Resonance Damping Time
Constant to help eliminate high frequency
resonance problems. To reduce resonance
oscillation, increase the value of
parameter 1-64 Resonance Damping.
Parameter Description Programming Guide
MG20OB02 Danfoss A/S © 05/2018 All rights reserved. 55
3 3
