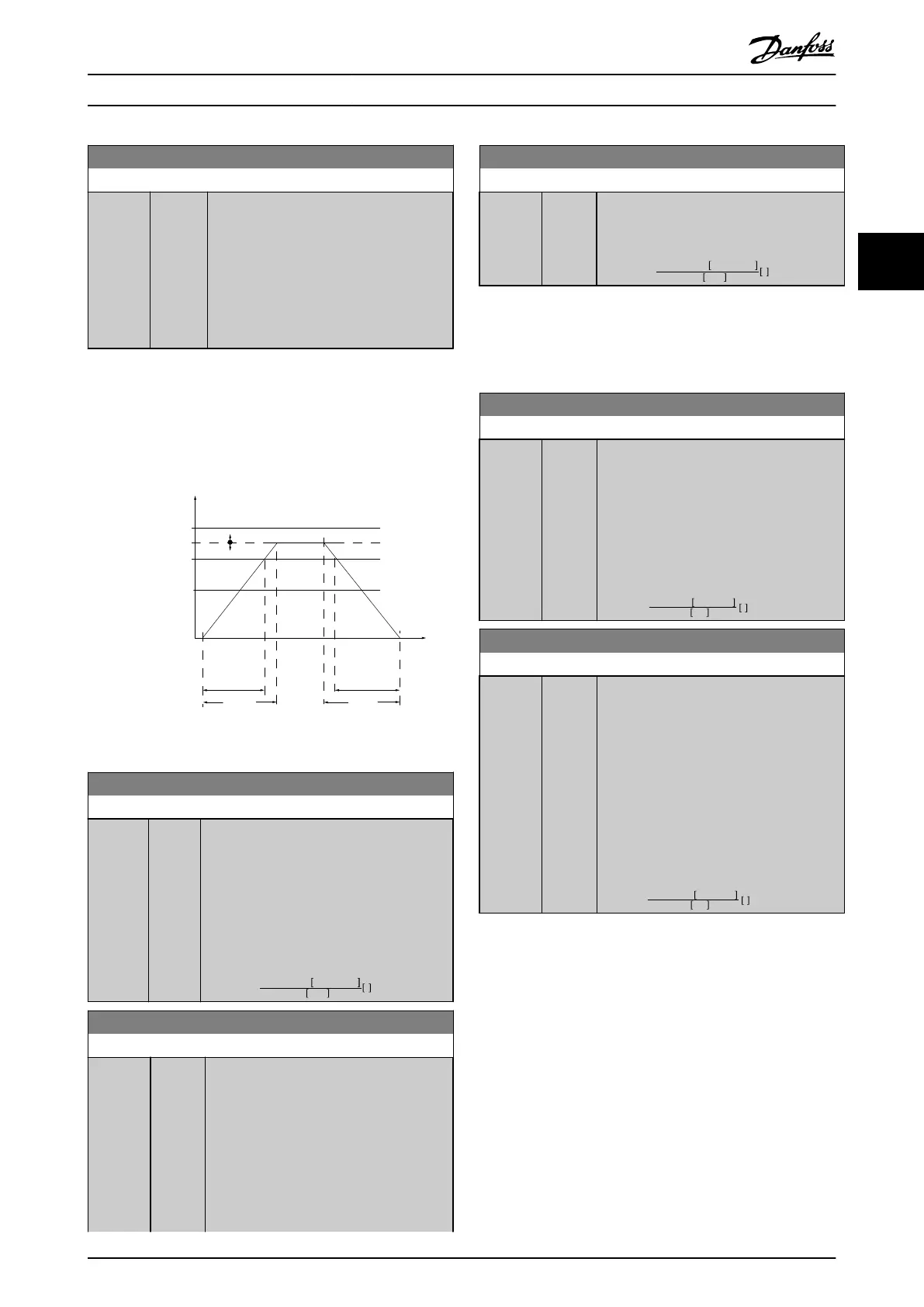

Danfoss VLT AQUA Drive FC 202 Programming Guide

3-19 Jog Speed [RPM]
Range: Function:
Size
related*
[ 0 -
par. 4-13
RPM]
Enter a value for the jog speed n
JOG
, which
is a xed output speed. The frequency
converter runs at this speed when the jog
function is activated. The maximum limit is
dened in parameter 4-13 Motor Speed High
Limit [RPM].
See also parameter 3-11 Jog Speed [Hz] and
parameter 3-80 Jog Ramp Time.
3.5.3 3-4* Ramp 1
Congure the ramp times for each of the 2 ramps
(parameter group 3-4* Ramp 1 and parameter group 3-5*
Ramp 2).
t
acc
t
dec
130BA169.11
P 3-*2
Ramp (X)
Down
Time (Dec)
P 4-13
High-limit
RPM
Reference
P 1-25
Motor
speed
P 4-11
Low limit
Time
P 3-*1
Ramp (X)Up
Time (Acc)
Illustration 3.21 Ramp 1
3-41 Ramp 1 Ramp Up Time
Range: Function:
Size
related*
[ 0.10
- 3600
s]
Enter the ramp-up time, that is the
acceleration time from 0 RPM–
parameter 1-25 Motor Nominal Speed. Select a
ramp-up time such that the output current
does not exceed the current limit in
parameter 4-18 Current Limit during ramping.
See ramp-down time in parameter 3-42 Ramp
1 Ramp Down Time.
par . 3 − 41 =
tacc × nnom par . 1 − 25
ref  RPM
s
3-42 Ramp 1 Ramp Down Time
Range: Function:
Size
related*
[ 0.10 -
3600 s]
Enter the ramp-down time, that is the
deceleration time from
parameter 1-25 Motor Nominal Speed–0 RPM.
Select a ramp-down time preventing
overvoltage from arising in the inverter due
to regenerative operation of the motor. The
ramp-down time should also be long
enough to prevent that the generated
current exceeds the current limit set in
3-42 Ramp 1 Ramp Down Time
Range: Function:
parameter 4-18 Current Limit. See ramp-up
time in parameter 3-41 Ramp 1 Ramp Up
Time.
par . 3 − 42 =
tdec × nnom par . 1 − 25
ref  RPM
s
3.5.4 3-5* Ramp 2
To select ramp parameters, see parameter group 3-4* Ramp
1.
3-51 Ramp 2 Ramp Up Time
Range: Function:
Size
related*
[ 0.10 -
3600 s]
Enter the ramp-up time, that is the
acceleration time from 0 RPM–
parameter 1-25 Motor Nominal Speed. Select
a ramp-up time such that the output
current does not exceed the current limit in
parameter 4-18 Current Limit during
ramping. See ramp-down time in
parameter 3-52 Ramp 2 Ramp Down Time.
par . 3 − 51 =
tacc × nnom par . 1 − 25
ref  rpm
 s
3-52 Ramp 2 Ramp Down Time
Range: Function:
Size
related*
[ 0.10 -
3600 s]
Enter the ramp-down time, that is the
deceleration time from
parameter 1-25 Motor Nominal Speed–0 RPM.
Select a ramp-down time such that no
overvoltage occurs in the inverter due to
regenerative operation of the motor, and
such that the generated current does not
exceed the current limit set in
parameter 4-18 Current Limit. See ramp-up
time in parameter 3-51 Ramp 2 Ramp Up
Time.
par . 3 − 52 =
tdec × nnom par . 1 − 25
ref  rpm
 s
Parameter Description Programming Guide
MG20OB02 Danfoss A/S © 05/2018 All rights reserved. 69
3 3
