Interlocking Function with RS485 Bus
The combined reader + door-module and the reader-module is used here.

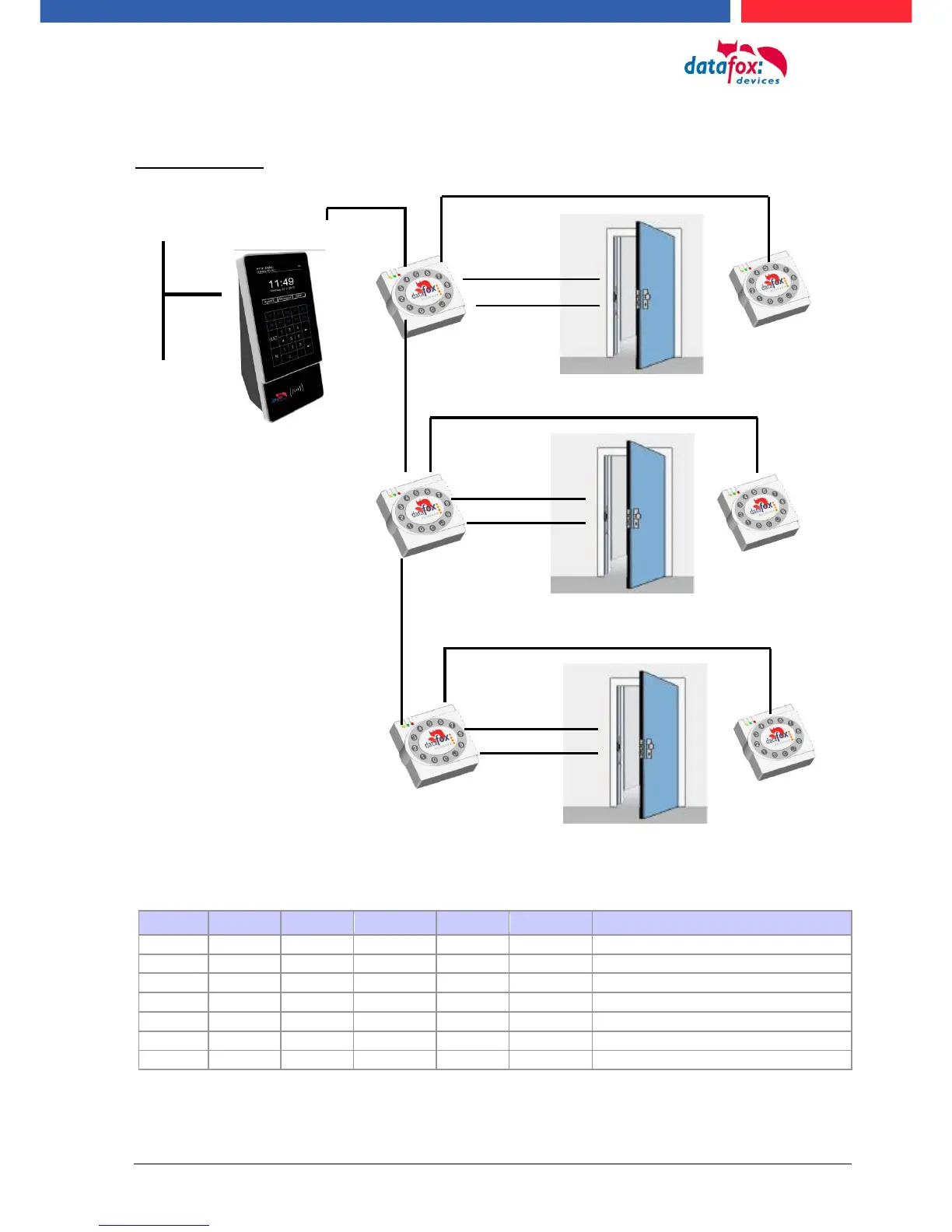

Installation plan:
Corresponding reader table:
ID
ZM
TM
RefLocation
RefAction
PinGeneral
Description
1
320
1
0
1
0
Master on bus RS485
2
010
1
1
1
0
Reader and relay on RS485 (LTM)
3
011
1
1
1
0
Reader on RS232 (L)
4
020
1
2
2
0
Reader and relay on RS485 (LTM)
5
021
1
2
2
0
Reader on RS232 (L)
6
030
1
3
3
0
Reader and relay on RS485 (LTM)
7
031
1
3
3
0
Reader on RS232 (L)
RS232/485
TCP/IP usw.
RS485 connection
max. 1000 m
Relay for door
Door monitoring
RS232 connection max. 15 m
RS232 connection max. 15 m
Relay for door
Door monitoring
RS 485
Max.1000 m
LTM
Art-Nr.: 106030
Bus adress: 3
Bus adress: 2
Bus adress: 1
RS232 connection max. 15 m
Relay for door
Door monitoring
RS232 Verbindung max. 15m
Relais zum Türöffner
Türüberwachung
RS232/485
TCP/IP usw.
RS485 Verbindung
max. 1000m
Relais zum Türöffner
Türüberwachung
