Manual Datafox Evo 4.3 Page 95 Date: 27.12.2017 V 04.03.09.XX
Tür
Kontakt
Tür
Kontakt
ext. max 30V 2A
Door opener
ext. max 30V 2A
Door opener
Combination module (LTM)
Art-Nr.: 106030

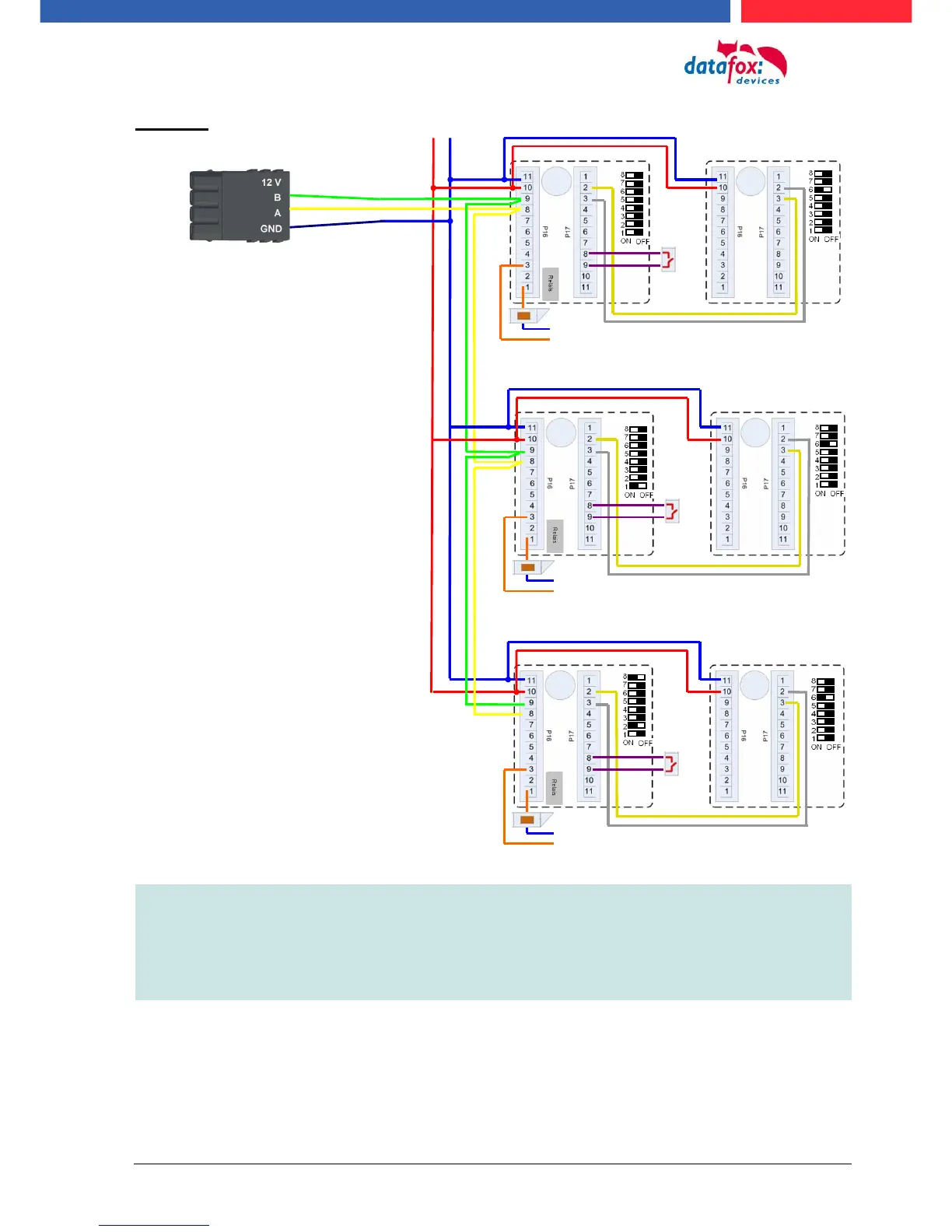

Wire plan:

Note:
Connection for current supply via power supply unit or bell transformer. Please note the
hints for the calculation of the cable cross-section and the cable length. Install the door-
opener in the protected area when using it for exterior doors.
At closed door contact ca. 15 mA are used up at 12 V = 0.18 Watt. This means a con-
sumption of ca. 1.6 kWh per year.
12V + -
Reader module (L)
Art-Nr.:106020
ext. max 30V 2A
Door opener
Reader module (L)
Art-Nr.:106020
Tür
Kontakt
Reader module (L)
Art-Nr.:106020
Combination module (LTM)
Art-Nr.: 106030
Combination module (LTM)
Art-Nr.: 106030
Connector on the
MasterIV device
