Manual Datafox Evo 4.3 Page 107 Date: 27.12.2017 V 04.03.09.XX
Example elevator
The goal is that can drive the respective tenants only your floor.
Then tenant use the transponder to give only the switch for his floor free.
In cabin of the elevator is install the RFID-reader. The Datafox-Device is on the top of the cabin.

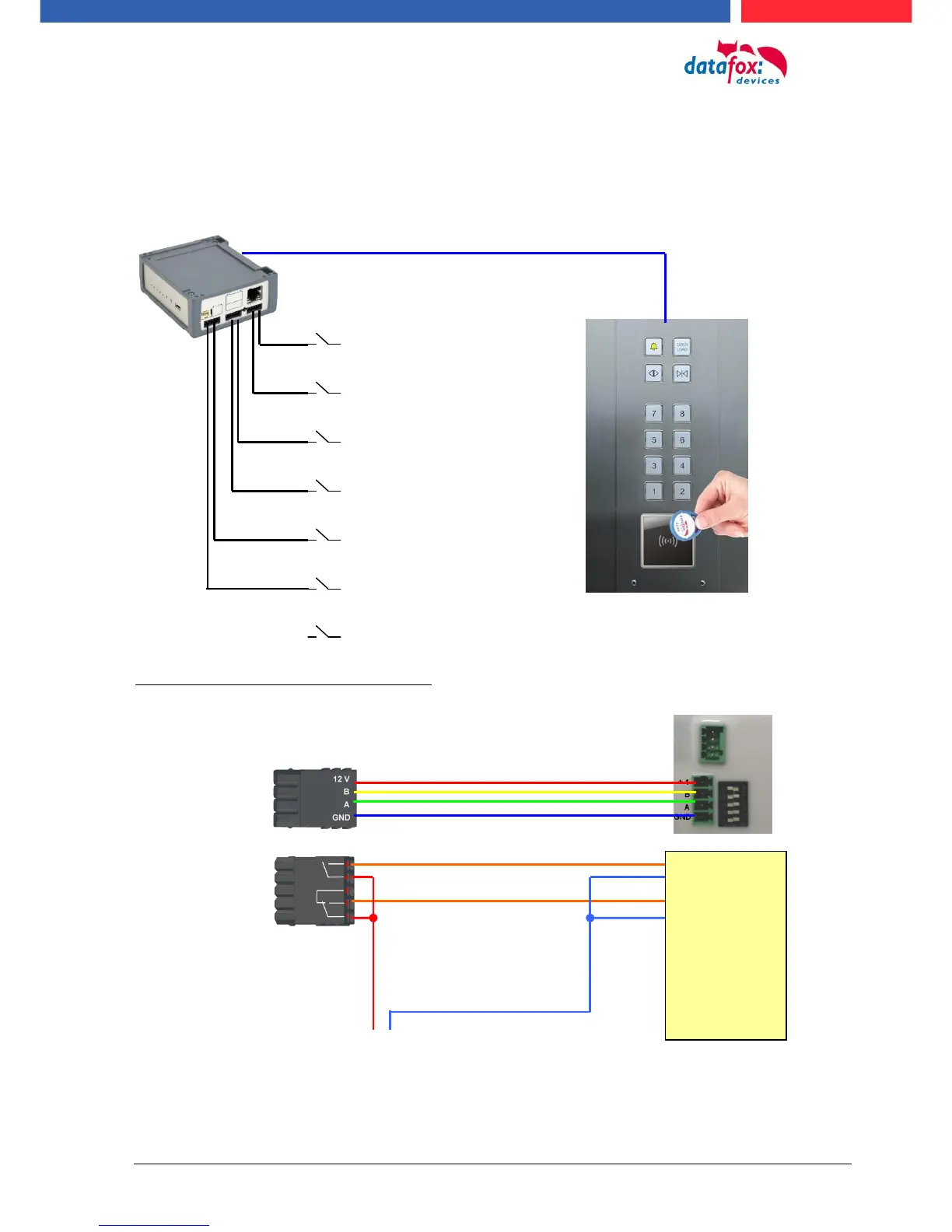

Wirering plan for the EVO-Access reader:
Relay for floor 1
- RS485 Bus to the reader in the cabin
Relais for floor 2
Relay for floor 3
Relay for floor 4
Relay for floor 5
Relay for floor 6
… Relay for floor 12
+ - max. 30V; 2A
Bus Nr. 1
EVO-access-reader
Connector for
RS485 Bus
On the Mod-
ulplace 1
Relay 2 for floor
normaly close
Relay 1
With no/nc contact
Connector 5 poles
for 2 digital out
free potential
relay 2
relay 1
elevator con-
trol centre
