Several External Doors via RS485 Bus
Here, a door module has to be used so that the door opening relay is within the protected area.

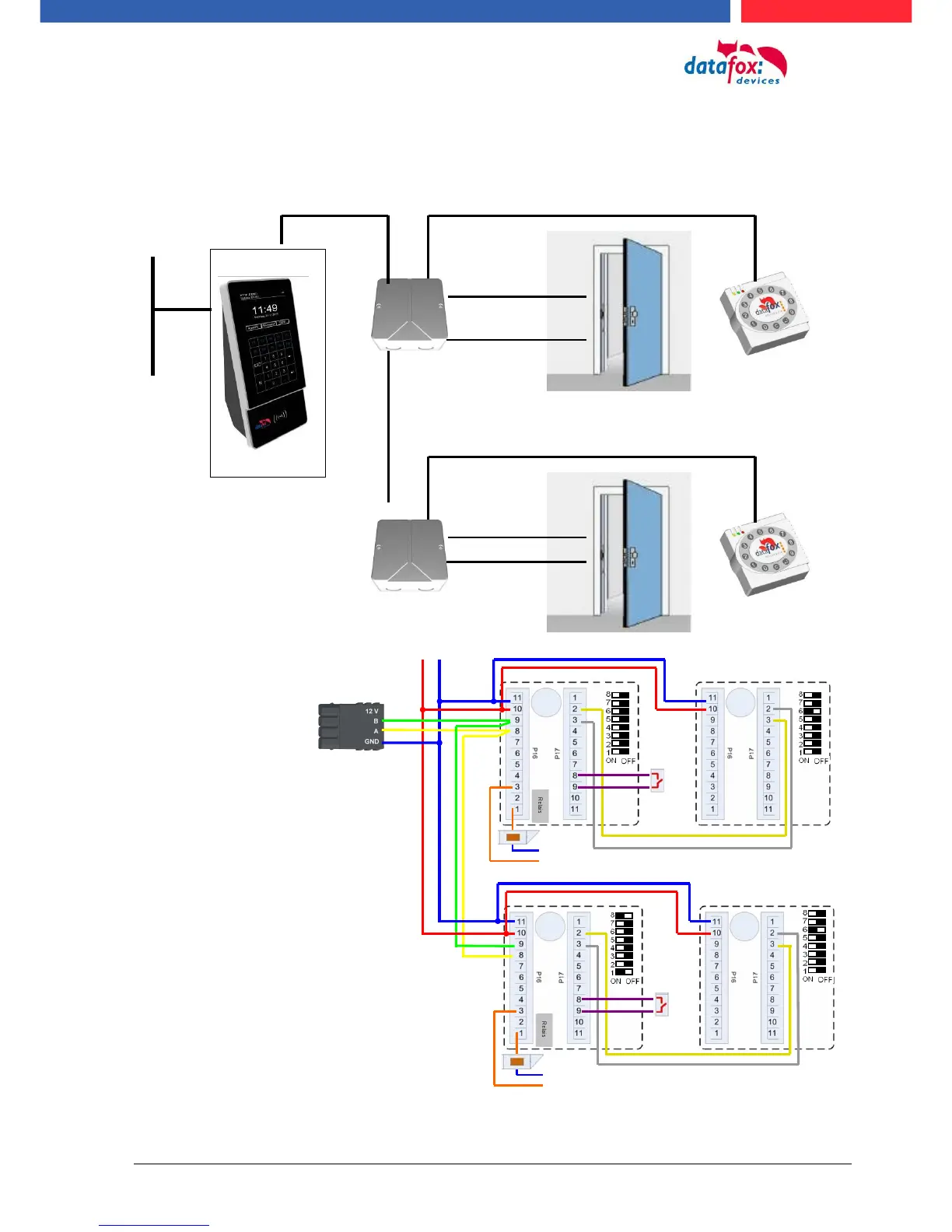

Installation plan:
Wire plan:
Reader (L)
Art-Nr.:106020
RS232 connection max. 15 m
Relay for door
Door control
RS232/485
TCP/IP usw.
RS485 connection
max. 1000 m
RS232 connection max. 15 m
Relay for door
Door control
12V + -
Reader (L)
Art-Nr.:106020
max. 30V 2A
door opener
max. 30V 2A
door opener
Reader (L)
Art-Nr.:106020
Door
control
Door
control
