2 INSTALLATION
CAUTION
Connections should always be made with power OFF!
2.1 DRAGON™ D INTERFACE CABLE CONNECTIONS

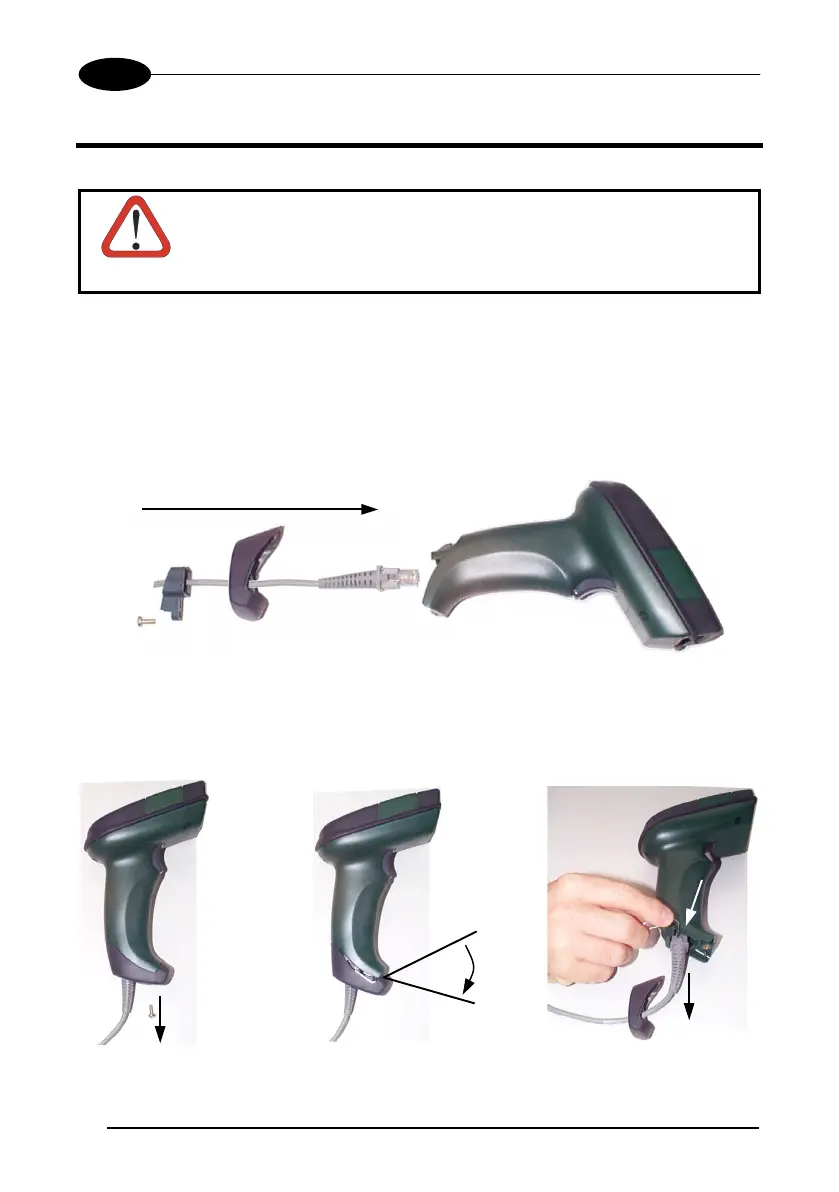

The DRAGON™ D reader incorporates a multi-standard interface which can be
connected to a Host by plugging an RS232, Wedge or Pen emulation cable into the
connector and closing the cable cover as shown below.
To disconnect the cable, unscrew the cover screw, pull down on the front part of the
cover and insert a paper clip or other similar object onto the cable connector while
unplugging the cable from the DRAGON™ D body.
