4.6 OM-DRAGON™ STAR-SYSTEM™ NETWORK SETUP
When the OM-DRAGON™ is used in an RS485 network, it must be initially
configured. To do this using configuration barcodes, follow the procedure below
using any DRAGON™ M reader.
Set OM-DRAGON™ Address
1.
i3'k
i3'k
i3'k
+
four digits for the OM-DRAGON™ Address (from 0000 to 1999).
All cradles used in the network must have different addresses.
Exit and Save configuration
2.
i k
i k
i k
3.
Read the Bind code to pair the DRAGON™ M to the OM-DRAGON™ cradle
for configuration.
Bind
i3/*k
i3/*k
i3/*k
The green LED on the DRAGON™ M will blink; the reader is ready to be
inserted into the cradle.
4.
Firmly insert the reader into the OM-DRAGON™ cradle within 10 seconds, a
beep will be emitted, signaling that the OM-DRAGON™ cradle has been
paired to the DRAGON™ M, and the green LED on the reader will go off.

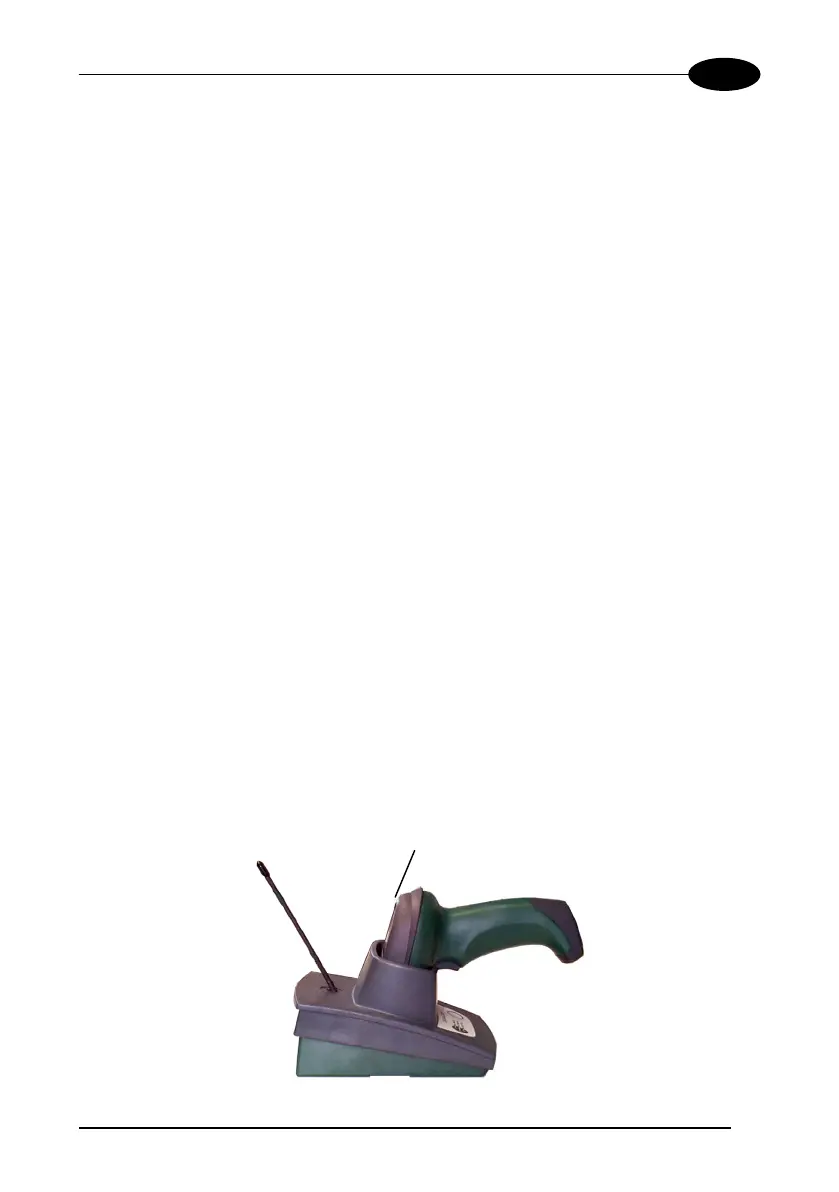

Green LED
