TECHNICAL FEATURES
171
7

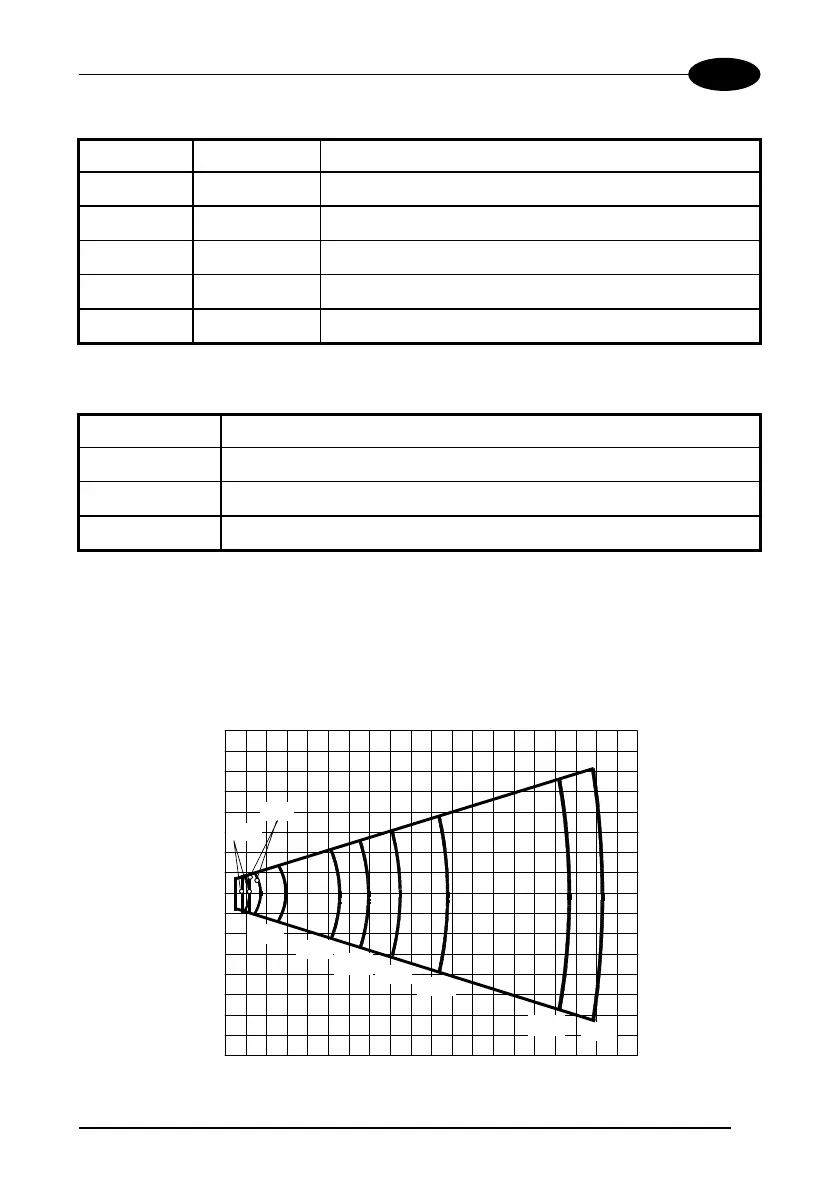

OM-DRAGON™/C-DRAGON™ CHARGE STATUS
Red LED Green LED Meaning
ON ON Charging
OFF ON End of charge
OFF OFF No battery inserted
Flashing OFF Discharging (see par. 2.7.2)
Flashing Flashing Shorted or open battery
OM-DRAGON™/C-DRAGON™ POWER/COMMUNICATION
Yellow LED Meaning
ON Power applied
OFF Error in reading EEPROM parameters
Blinking Transmission over the Host port
7.6 READING DIAGRAMS
DRAGON™ D/M101
12 24 36 48 60
96
36
24
12
0
12
24
36
cm
72 84
108 cm
0.19 mm
(7.5 mils)
0.25 mm
(10 mils)
0.33 mm
(13 mils)
0.50 mm
(20 mils)
1.00 mm
(40 mils)
1.38 mm
(55 mils)
0.08 mm
(
3 mils
)
0.13 mm
(5 mils)
0.38 mm
(
15 mils
)
