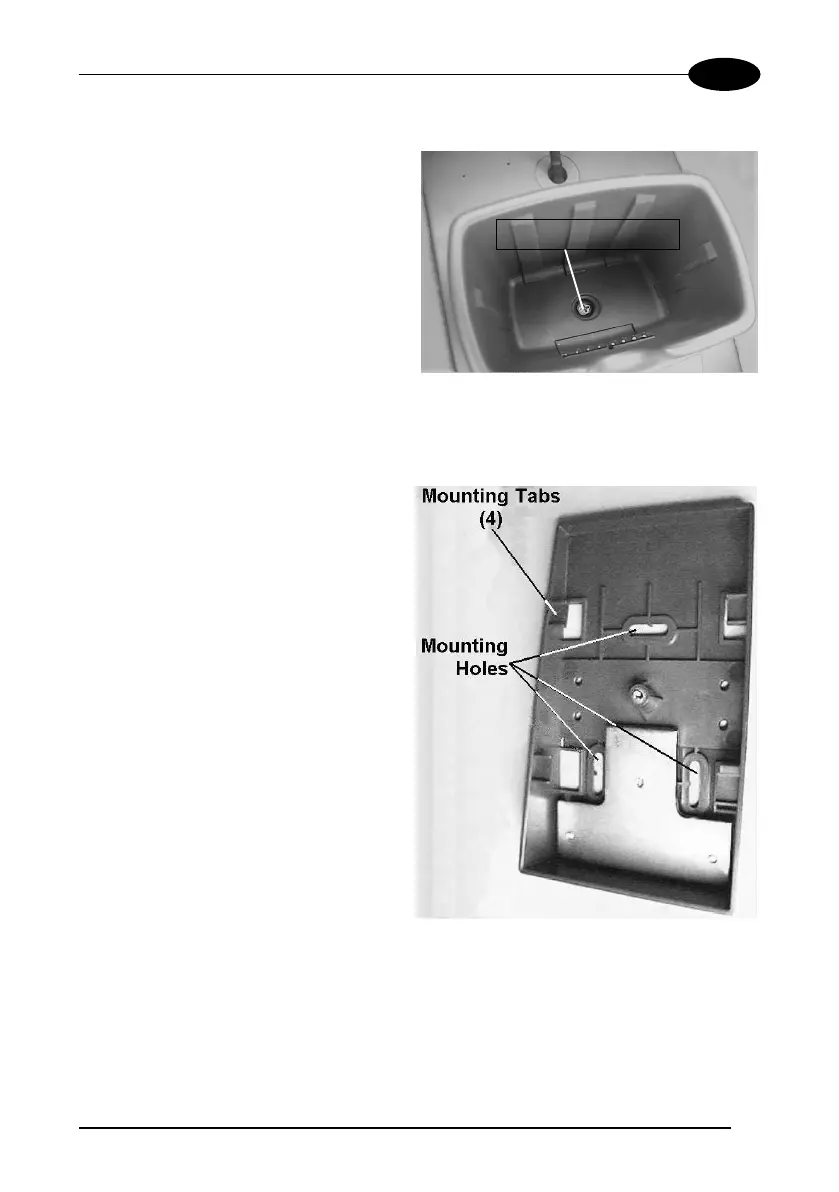

2.8.3 Wall Mounting
For wall mounting, the base must be
reversed 180° with respect to the
cradle top. Position the base so that the
thick part with the weighted plate is
towards the bottom, as shown below.
1. Unscrew the cradle fixing screw
and detach the cradle from the
base by holding the base tight and
pushing the cradle backwards.
2. If you are installing several cradles and you desire to align them, you can use
the alignment plate (see Alignment Plate Installation), otherwise continue with
step 3.
3. Using the mounting holes on the
base as a pattern, mark the wall
where you desire to mount the
OM-DRAGON™.
4. Drill three appropriate size holes.
5. Insert the threaded dowels into the
holes.
6. Position the base on the wall and
affix it by means of the three
screws.
7. Reattach the cradle body by sliding
it along the mounting tabs until
aligned.
8. Fix the cradle to the base by
means of the fixing screw (see above photo).
9. Insert the antenna into the appropriate hole on the body of the cradle and screw
it clockwise until tight.
