DRAGON™
10
2
2.8
MOUNTING THE OM
-DRA
G
ON™ / C-DRAGON™ CRA
DLE
The cradle package contains the follow
ing devices:
OM-DRAGON™ / C-DRAGON™ Cradle with Base
OM-DRAGON™ Quick Refe
rence / C-DRAGON™ Qui
ck Refere
nce
OM
-DRAGON
™ Antenna
2 adhesive strips
3 mounting screws
4 rubber feet
3 threaded dowels
1 alignment plate
The cradle (either OM
-DRAGON™ or C-DR
AGON™) can
be mounted for
portable or
fixed desktop usage, or it can be fix
ed to a wall:

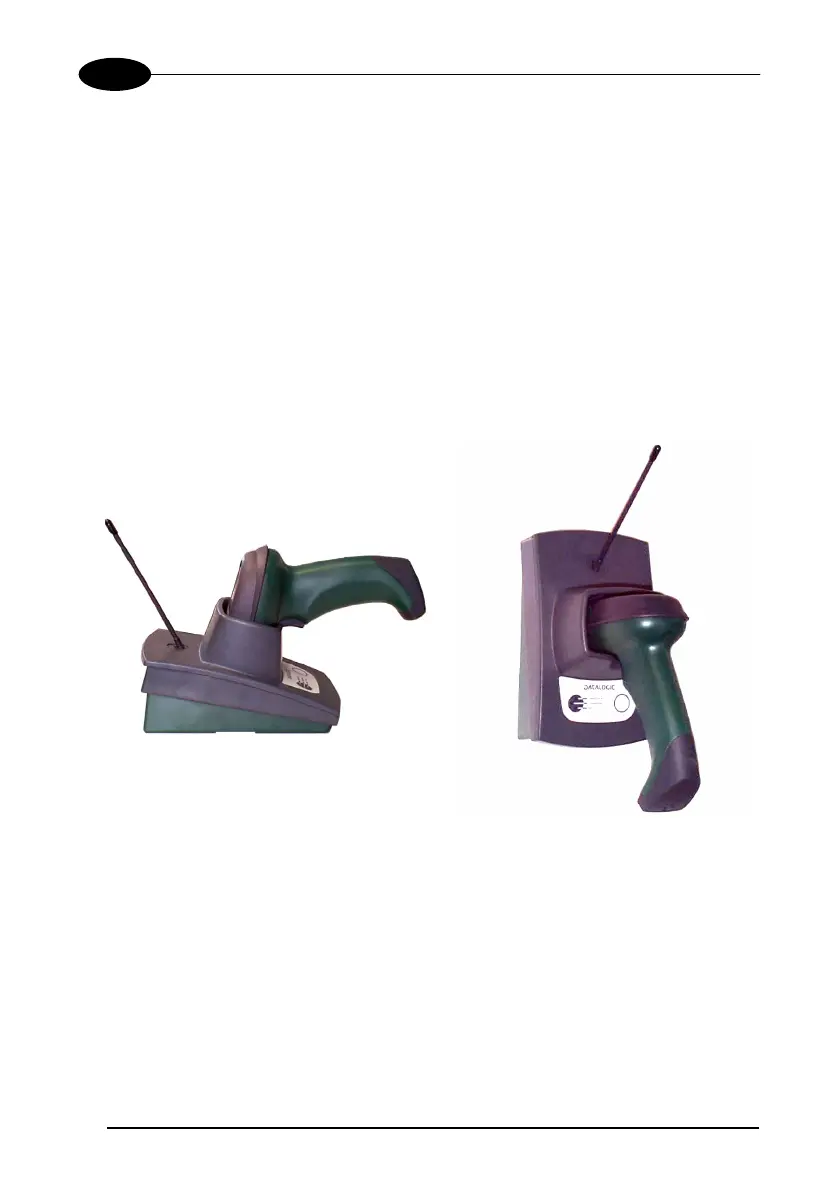

Desktop Use
Wall-mount Use
21
23
Table of Contents
Default Chapter
5
Default Chapter
5
Table of Contents
5
General View
11
1 Introduction
13
2 Installation
14
DRAGON™ D Interface Cable Connections
14
OM-DRAGON™ Interface Cable Connections
15
RS232 Connection
16
WEDGE Connection
16
PEN Emulation Connection
17
Network Connections
17
OM-DRAGON™ Network Connectors
17
Network Cabling
18
Network Termination
19
DRAGON™ M Battery Maintenance
19
Battery Type
19
Battery Charging
20
Replacing DRAGON™ M Batteries
20
Mounting the OM-DRAGON™ / C-DRAGON™ Cradle
22
Portable Desktop Use
23
Fixed Desktop Use
24
Wall Mounting
25
Alignment Plate Installation
26
3 Dragon™ M System and Network Layouts
27
Stand Alone Layouts
27
Single Reader Layout
27
Multiple Reader Layout
27
Multiple Stand Alone Layouts
28
C-Box Layout
29
Multidrop STAR-System™ Network Layouts
30
Host Master Layout
30
OM-DRAGON™ Master Layout
31
Master OM-DRAGON™ Network Troubleshooting
32
4 Configuration
33
Configuration Methods
33
Reading Configuration Barcodes
33
Using DL Sm@Rtset
33
Copy Command
33
Sending Configuration Strings from Host
34
Setup Procedures
34
DRAGON™ D Setup
35
DRAGON™ M/OM-DRAGON™ Stand Alone Setup
35
Using Multiple M-Series Readers with same Cradle
37
DRAGON™ M/STAR-Modem™ in Stand Alone Mode
38
DRAGON™ M/STAR-System™ Setup
39
OM-DRAGON™ STAR-System™ Network Setup
41
Interface Selection
43
Changing Default Settings
47
Rs232 Parameters
48
Baud Rate
49
Data Bits
50
Parity
50
Handshaking
51
Stop Bits
51
ACK/NACK Protocol
52
Fifo
52
Inter-Character Delay
53
Rx Timeout
53
Serial Trigger Lock (D Series Only)
54
Wedge Parameters
55
Keyboard Nationality
56
Caps Lock
58
Caps Lock Auto-Recognition
58
Num Lock
59
Inter-Character Delay
60
Inter-Code Delay
60
Keyboard Setting
61
Control Character Emulation
63
Pen Emulation
64
Operating Mode
65
Minimum Output Pulse
66
Conversion to Code 39 and Code 128
67
Output Level
68
Overflow
68
Idle Level
69
Inter-Block Delay
69
Network Parameters
70
RS485 Network
71
Network Baud Rate
72
Slave Address Range
72
Warning Message
73
Master Cradle Header
74
Master Cradle Terminator
75
Data Format
76
Code Identifier Table
77
Code Identifier
79
Custom Code Identifier
80
Header
81
Terminator
82
Field Adjustment
83
Field Adjustment Character
84
Code Length Tx
84
Character Replacement
85
Address Stamping (M Series Only)
87
Address Delimiter (M Series Only)
87
Time Stamping (M Series Only)
88
Time Stamping Delimiter (M Series Only)
88
Power Save
89
Sleep State
90
Enter Sleep Timeout
90
Reading Parameters
91
Trigger Type
92
Trigger Signal
92
Trigger-Off Timeout
93
Flash Mode
93
Reads Per Cycle
94
Safety Time
94
Beeper Intensity
95
Beeper Tone
95
Aiming System
96
Decoding Parameters
97
Interdigit Control
97
Ink-Spread
98
Overflow Control
98
Decoding Safety
99
Puzzle Solver
100
Code Selection
101
Code 93
101
Codabar Family
101
EAN/UPC Family
103
2/5 Family
107
Code 39 Family
108
Code 128 Family
110
Msi
114
Plessey
115
Telepen
116
Code 16K
119
RSS Codes
120
Advanced Formatting
121
Concatenation
122
Advanced Formatting
125
Radio Parameters
140
Radio Protocol Timeout
141
Display Parameters
146
Contrast
147
Backlight
148
Keypad
149
5 References
150
Transmission Mode
151
Pen Parameters
153
Minimum Output Pulse
153
Output and Idle Levels
154
Inter-Block Delay
155
Master Header/Terminator Selection
156
Set Custom Extended Header/Terminator Keys
158
Address Stamping
160
Address Delimiter
160
Time Stamping Format
160
Time Stamping Delimiter
160
Sleep State
161
Enter Sleep Timeout
161
Trigger Signal
161
Reads Per Cycle
162
Safety Time
162
Overflow Control
163
Interdigit Control
163
Radio Protocol Timeout
163
Transmission Mode
164
Beeper Control for Radio Response
165
Single Store
165
Batch Mode
166
Display Mode
167
Configuration Editing Commands
168
Configuration Copying Commands
169
Copy DRAGON M-Series
170
Copy OM-DRAGON
171
Battery Type
172
6 Message Formatting
173
Cursor Control
174
Font Selection
175
Clearing Display
175
Led and Beeper Control
176
Setting Rtc
176
Messages from Gun Command Keys
177
7 Technical Features
178
Dragon™ M
179
Om-Dragon™ / C-Dragon
180
System and Radio Features
181
Status Indicators
181
Reading Diagrams
183
A Host Configuration Strings
185
Single Store
196
Font Size
197
B Code Identifier Table
198
C Hex and Numeric Table
201
4
