NOTE: The auxiliary serial interface of the slave scanners can be used in
Local Echo communication mode to control any single scanner (visualize
collected data) or to configure it using the Genius utility or the Genius based
Host Mode programming procedure.
The ID-NET termination resistor switches must be set to ON only in the first and
last CBX connection box.

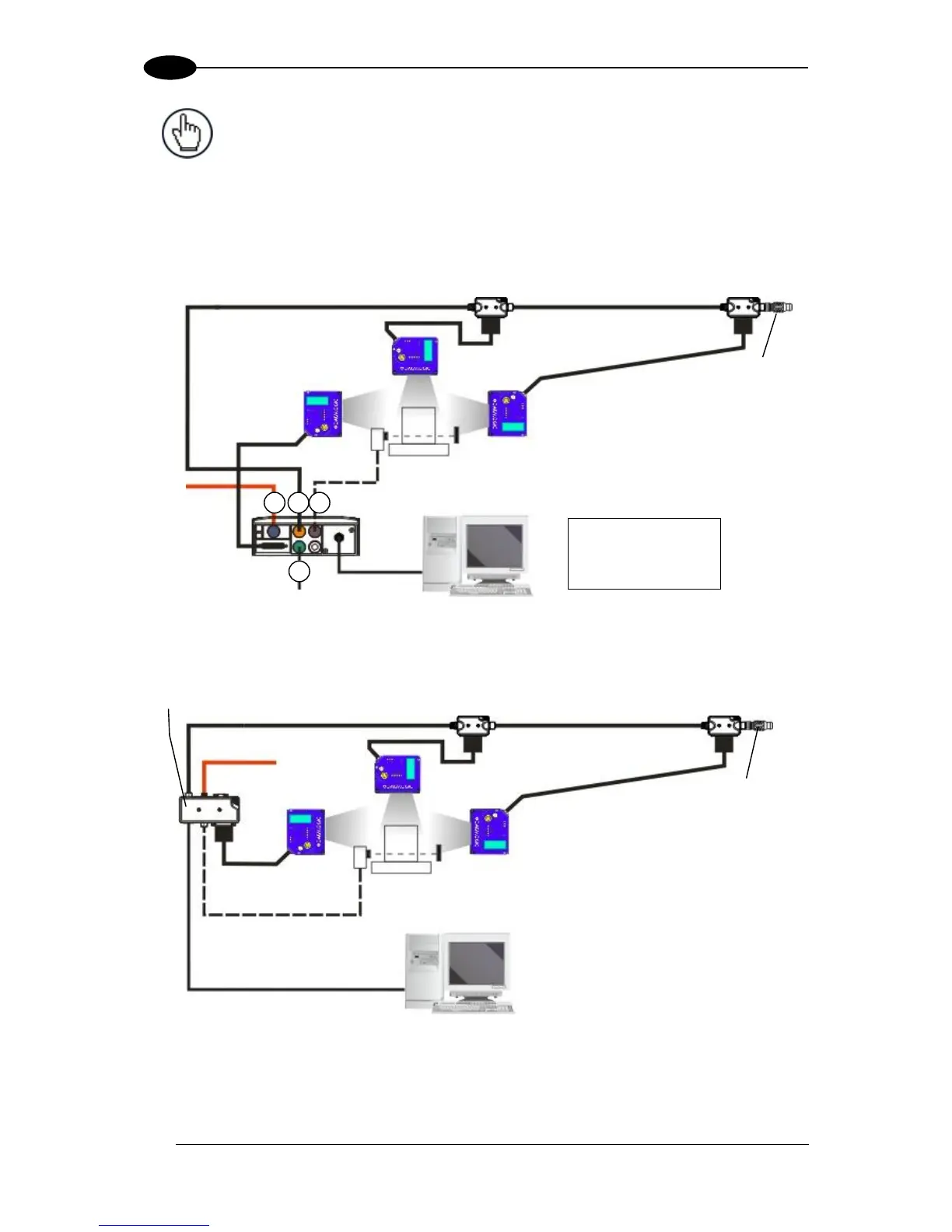

Figure 61 – ID-NET Synchronized Layout
DS5100 Master with CBX500 + DS5100 Slaves with QL100
Figure 62 – ID-NET Synchronized Layout
DS5100 Master with QL500 + DS5100 Slaves with QL100
The ID-NET network must be terminated inserting
an ID-NET terminator into the last QL in the
network.
ID-NET on the QL500 is internally terminated.
The ID-NET network must be terminated through
the internal switch of the CBX500 and inserting
an ID-NET terminator into the last QL in the
network.
