ELECTRICAL INSTALLATION
61
4
4.3.2 ID-NET Response Time

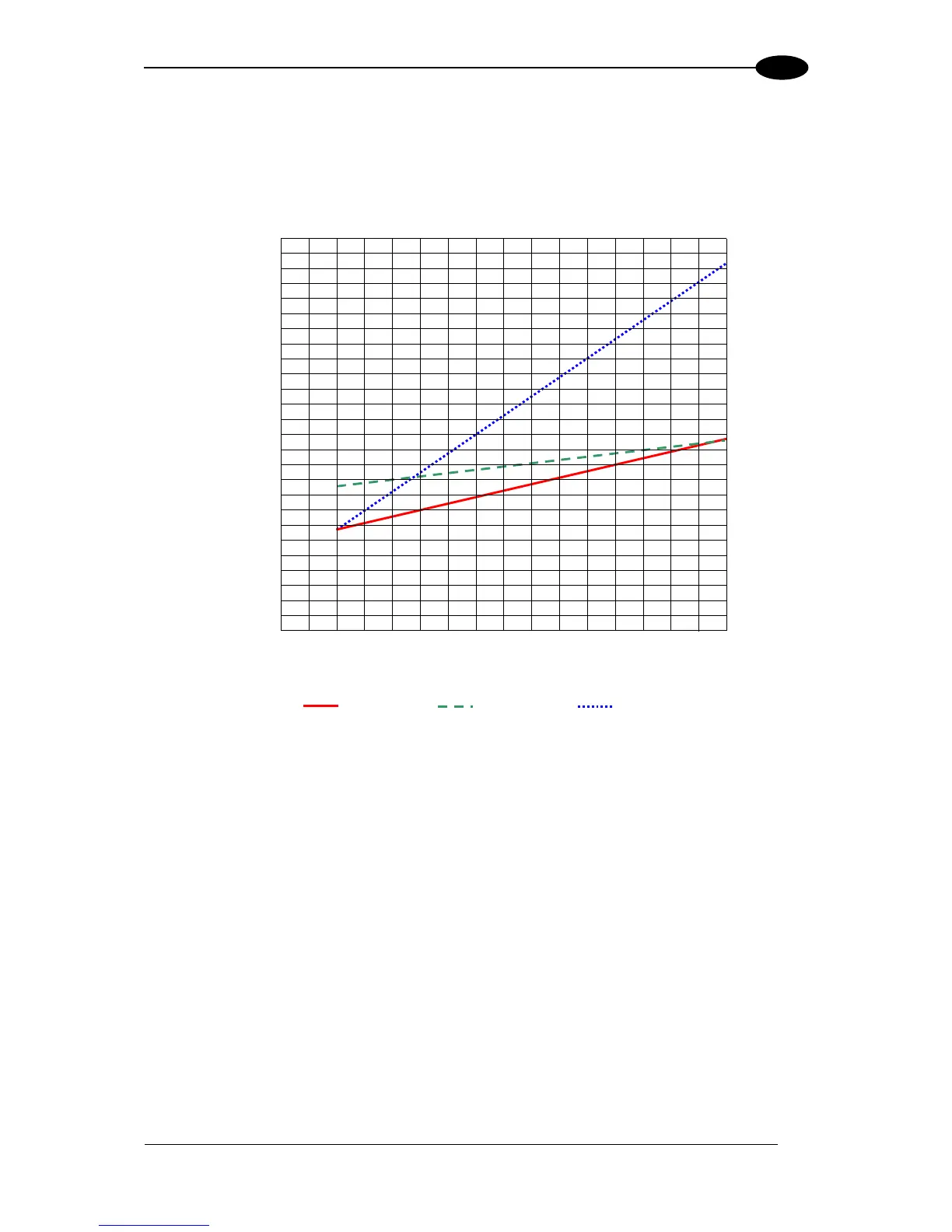

The following figure shows the response time of the ID-NET network. This time is defined as
the period between the Trigger activation and the beginning of data transmission to the Host.
Max ID-NET Response Time
240
220
200
180
160
140
120
100
80
60
40
20
0
Response Time (ms)
Number of Nodes
500 kbps
250 kbps
125 kbps
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Figure 37 – ID-NET Response Time
CONDITIONS:
 ID-NET Synchronized layout
 message length = 50 bytes per node
